Polyurethane Rectangular Copper Wire 155/ 180 Degree Enameled Flat

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.3mm* 0.18

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Polyurethane 155/ 180 Degree Enameled Flat / Rectangular Enameled Copper Wire	Thermal Rating:	220
Insulation Material:	Amide Imide	Width:	0.3mm
Thickness:	0.18mm	Conductor Material:	Copper
Key Word:	Polyurethane 155/ 180 Degree Enameled Flat / Rectangular Enameled Copper Wire
Highlight:	polyurethane rectangular copper wire , 180 degree rectangular copper wire , 155 degree flat enameled copper wire

Product Description

Polyurethane 155/ 180 Degree Enameled Flat / Rectangular Enameled Copper Wire

-Polyamide-imide rectangular enameled copper wire, Class 220

-Polyester (imide)/ Polyamide-imide rectangular  enameled copper wire, Class 200

-Polyester-imide rectangular  enameled copper wire, Class 180

-Modified polyester rectangular enameled copper wire, Class 155

-Polyurethane rectangular enameled copper wire, Class 155

Characteristics	Standard			Test Result
Appearance	Smooth Equality			Smooth Equality
Conductor Diameter	Width	3.00	±0.050	0.298	0.299	0.300
Conductor Diameter	Thickness	0.18	±0.050	0.180	0.181	0.182
Thickness of self bonding layer	Min.	0.002		0.003	0.003	0.003
Thickness of insulation	Thickness	0.005-0.015		0.008	0.008	0.008
	Width	0.005-0.015		0.011	0.011	0.011
Overall Diameter (Including bonding layer)	Thickness	Max.0.219		0.201	0.202	0.203
Overall Diameter (Including bonding layer)	Width	Max.0.364		0.326	0.327	0.328
Pinhole	1hole/m				0	0
Elongation	Min ≥15%			30	30	30
Flexibility and Adherence	No crack			No crack
Conductor Resistance (Ω/km at 20℃)	423.82-321.01			352.000	352.000	352.000
Breakdown Voltage	Min 0.50kv			1.650	1.250	1.360
Heat shock	No Crack					No Crack

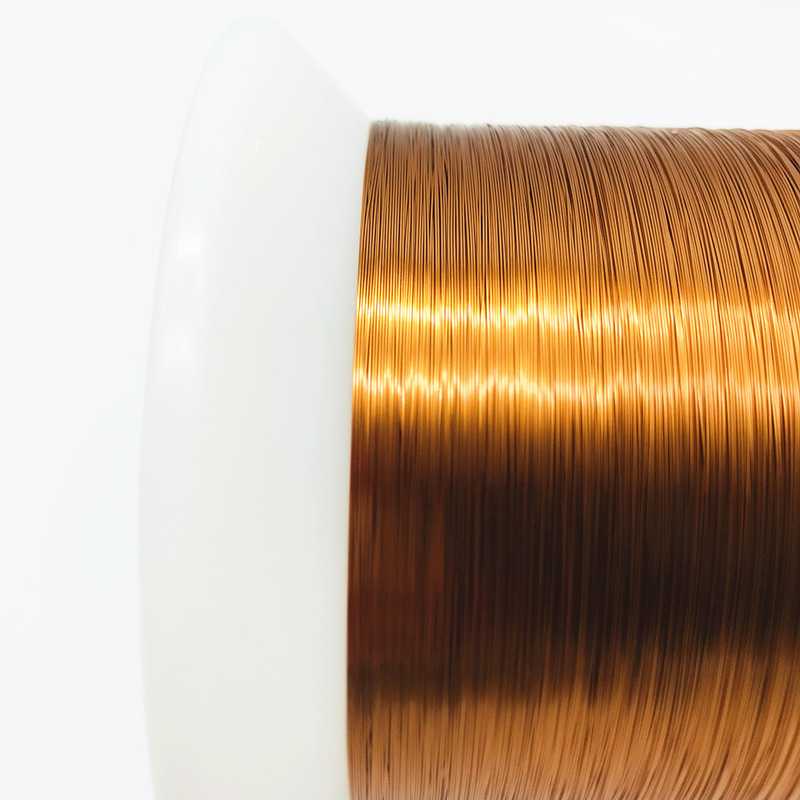

Polyurethane Rectangular Copper Wire 155/ 180 Degree Enameled Flat 0

Polyurethane Rectangular Copper Wire 155/ 180 Degree Enameled Flat 1

Polyurethane Rectangular Copper Wire 155/ 180 Degree Enameled Flat 2

Polyurethane Rectangular Copper Wire 155/ 180 Degree Enameled Flat 3

Polyurethane Rectangular Copper Wire 155/ 180 Degree Enameled Flat 4
