Aiw 220 Degree Enameled Copper Winding Wire Super Fine Flat

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm* 0.18
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: AIW 220 Degree Super Fine Flat Enameled Copper Winding Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 0.3mm
Thickness: 0.18mm Conductor Material: Copper
Key Word: AIW 220 Degree Super Fine Flat Enameled Copper Winding Wire
High Light:

aiw enameled copper winding wire

,

220 degree enameled copper winding wire

,

super fine flat enameled copper wire


Product Description

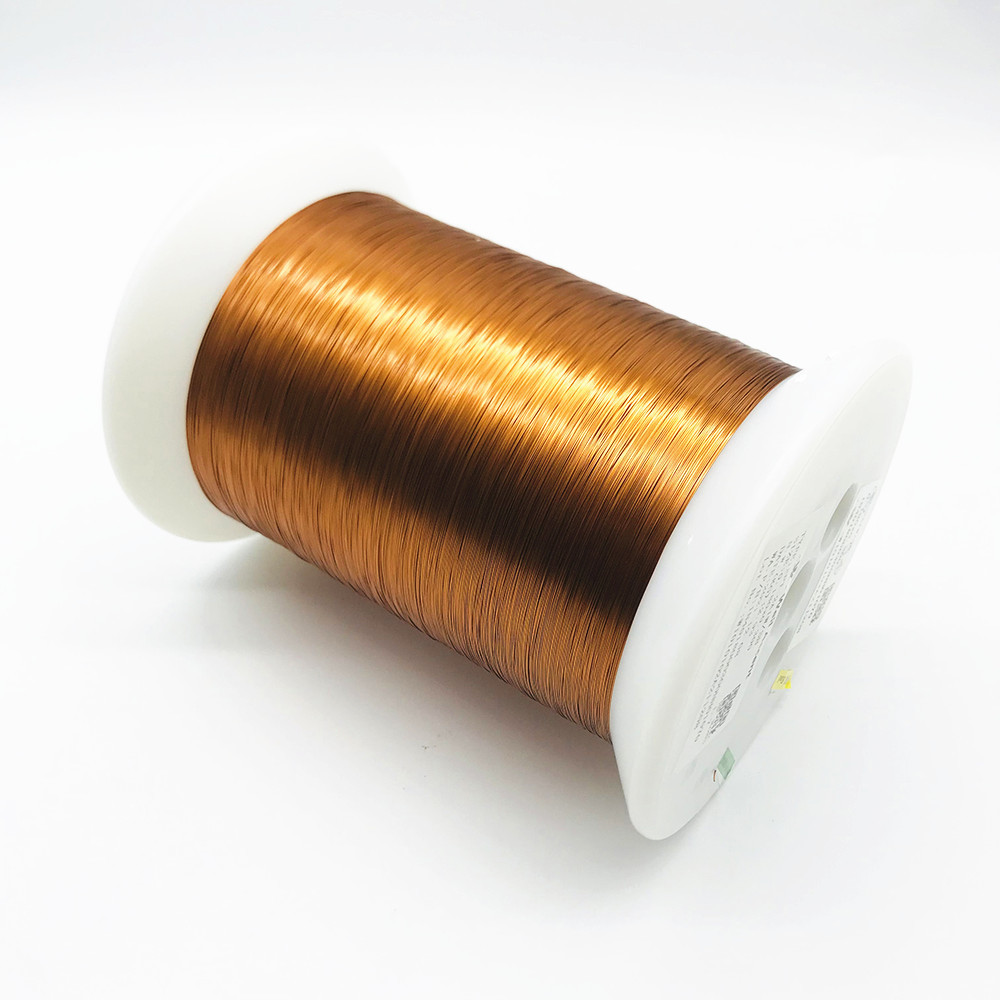

AIW 220 Degree Super Fine Flat Enameled Copper Winding Wire



Modern Enameled Copper Magnet Wire typically uses one to three layers of polymer film insulation, often of two different compositions, to provide a tough, continuous insulating layer. Magnet wire insulating films use (in order of increasing temperature range, polyurethane, polyester (PEW), polyester-polyimide (EIW), polyamide-polyimide (or amide-imide) (AI-EIW), and polyimide (AIW).



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.050

0.298

0.299

0.300
Thickness
    0.18
±0.050
0.180 0.181
0.182
Thickness of self bonding layer
Min.
0.002
0.003 0.003
0.003
Thickness of insulation Thickness 0.005-0.015 0.008 0.008 0.008
  Width 0.005-0.015 0.011 0.011 0.011
Overall Diameter
(Including bonding layer)
Thickness
Max.0.219
0.201 0.202
0.203
Width
Max.0.364
0.326 0.327
0.328
Pinhole
1hole/m
  0
0
Elongation
Min ≥15%
30 30
30
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
423.82-321.01
352.000 352.000
352.000
Breakdown Voltage
Min 0.50kv
1.650 1.250
1.360
Heat shock
No Crack
No Crack
