Aiw / Uew Rectangular Copper Wire Class 180 / 220 Super Thin

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm* 0.18
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: AIW / UEW Class 180 / 220 Super Thin Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 0.3mm
Thickness: 0.18mm Conductor Material: Copper
Key Word: AIW / UEW Class 180 / 220 Super Thin Rectangular Enameled Copper Wire
High Light:

amide imide rectangular copper wire

,

uew rectangular copper wire

,

amide imide rectangular enamelled copper wire


Product Description

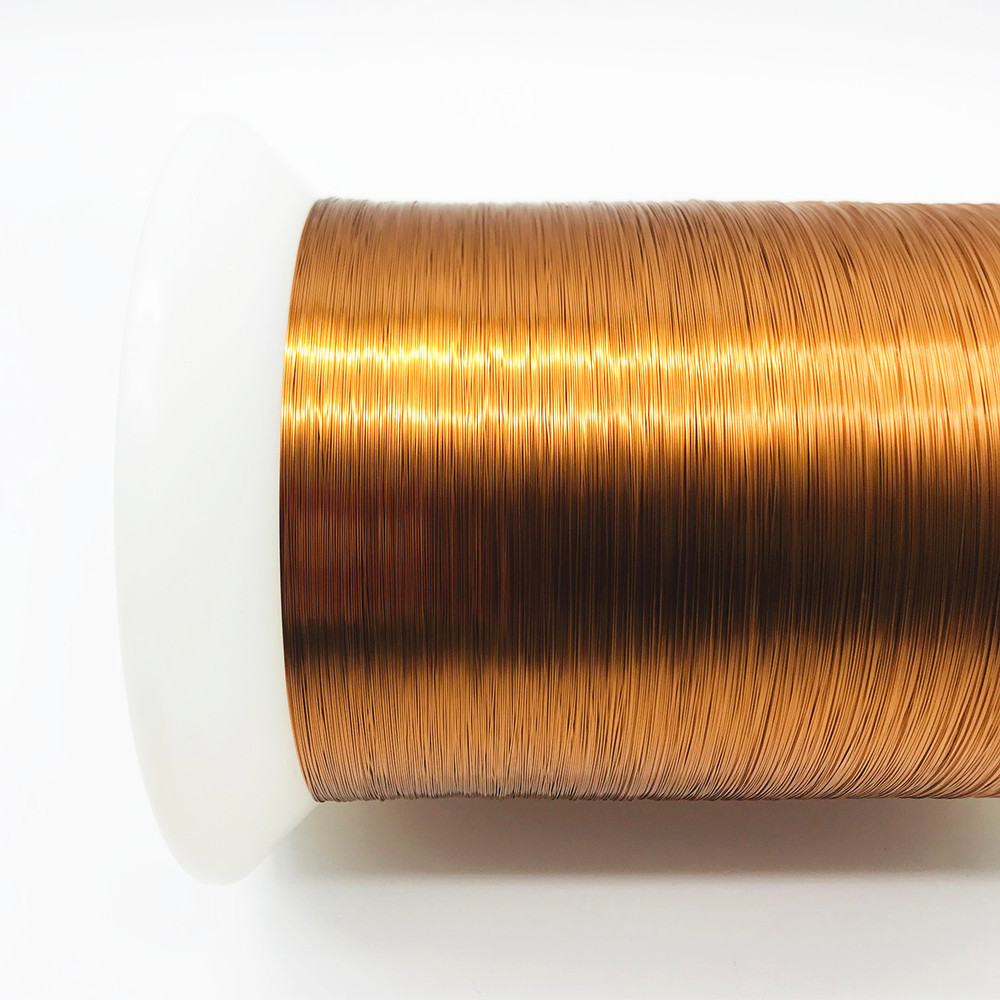

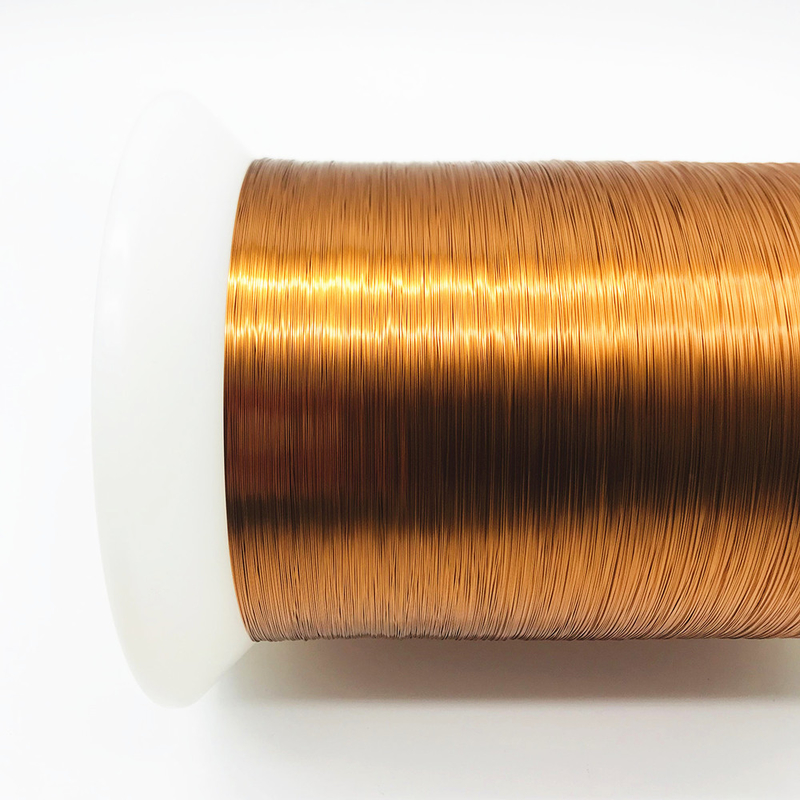

AIW / UEW Class 180 / 220 Super Thin Rectangular Enameled Copper Wire



Made of exygen free copper with rectangular shape.

Modern Enameled Copper Magnet Wire typically uses one to three layers of polymer film insulation, often of two different compositions, to provide a tough, continuous insulating layer. Magnet wire insulating films use (in order of increasing temperature range) polyvinyl formal or Formvar (PVF), polyurethane, polyamide (PUW), polyester (PEW), polyester-polyimide (EIW), polyamide-polyimide (or amide-imide) (AI-EIW), and polyimide (AIW). Polyimide insulated magnet wire is capable of operation at up to 250°C. The insulation of thicker square or enamelled rectangular aluminium or copper magnet wire is often augmented by wrapping it with a high-temperature polyimide or fiberglass tape, and completed windings are often vacuum impregnated with an insulating varnish to improve insulation strength and long-term reliability of the winding.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.050

0.298

0.299

0.300
Thickness
    0.18
±0.050
0.180 0.181
0.182
Thickness of self bonding layer
Min.
0.002
0.003 0.003
0.003
Thickness of insulation Thickness 0.005-0.015 0.008 0.008 0.008
  Width 0.005-0.015 0.011 0.011 0.011
Overall Diameter
(Including bonding layer)
Thickness
Max.0.219
0.201 0.202
0.203
Width
Max.0.364
0.326 0.327
0.328
Pinhole
1hole/m
  0
0
Elongation
Min ≥15%
30 30
30
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
423.82-321.01
352.000 352.000
352.000
Breakdown Voltage
Min 0.50kv
1.650 1.250
1.360
Heat shock
No Crack
No Crack
