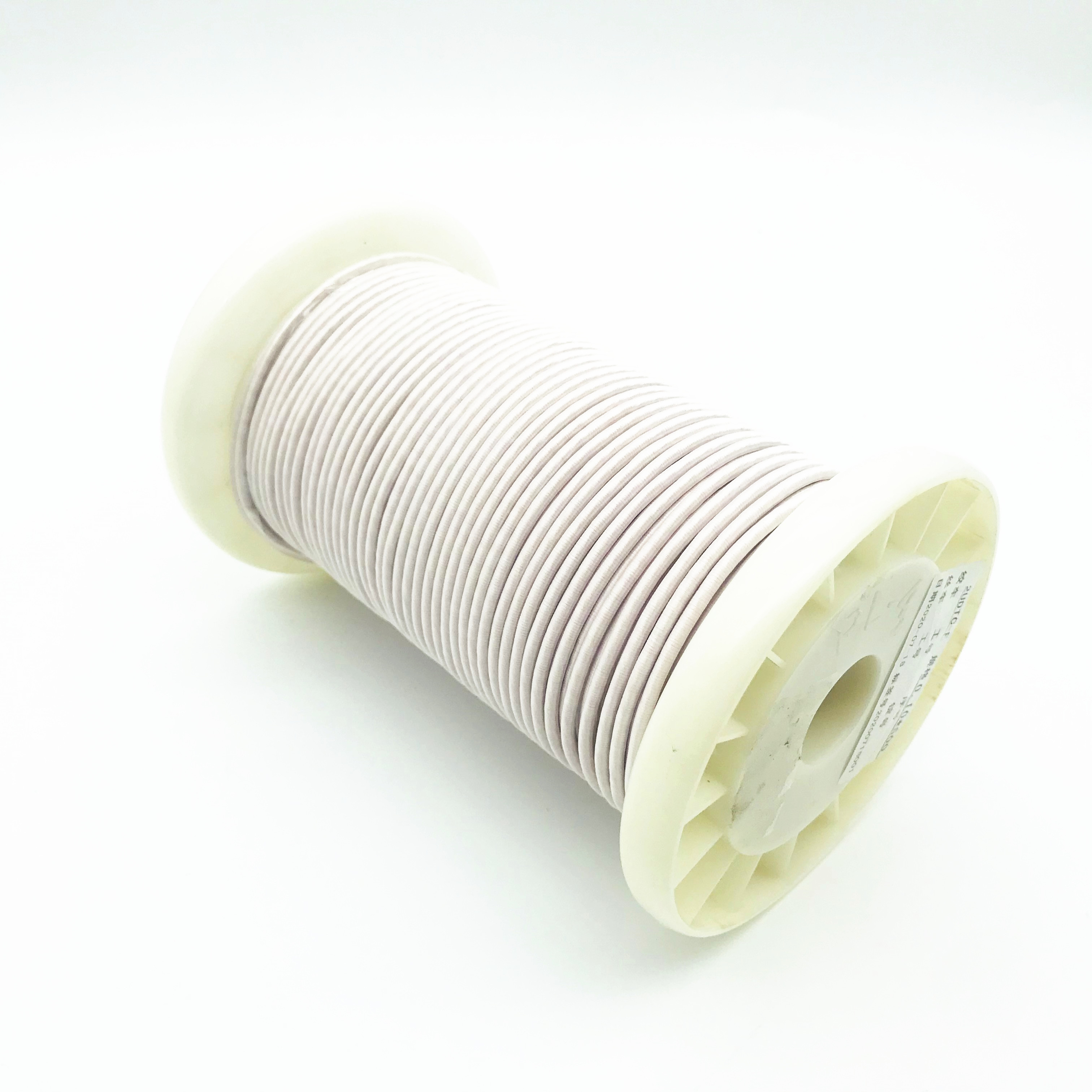

Customized Ustc Litz Wire 44 Awg 0.05mm / 660 Silk Covered For Motor

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Customized USTC 155 44 Awg 0.05mm / 660 Silk Covered Litz Wire For Motor	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.05mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	660
Highlight:	customized ustc litz wire , 44 awg ustc litz wire , 0.05mm ustc wire

Product Description

Customized USTC 155 44 awg 0.05mm / 660 Silk Covered Litz Wire For Motor

Model: 0.05mm x 660 standed Litz wire employs a stranded wire with individually insulated conductors (forming abundle).
Possibility to customize the produce according to your needs.

Name	Customized USTC 155 44 awg 0.05mm / 660 Silk Covered Litz Wire For Motor
Key word	USTC Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.05mm
Number of strands	660
Type	Silk covered litz wire

Test report: 0.05mm x 660 strands	Standard	Sample 1	Sample 2
Single wire diameter	0.055-0.069mm	0.058mm	0.061mm
Overall diameter	Max. 2.41mm	1.85mm	1.92mm
Pitch	40±3	√	√
Max resistance(Ω/Km at20℃)	Max. 0.01552	0.01379	0.01381
Mini breakdown voltage	Min.950	2300	2400
Max pin holes fault/6m	Max.103	18	15

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Customized Ustc Litz Wire 44 Awg 0.05mm / 660 Silk Covered For Motor 0

Customized Ustc Litz Wire 44 Awg 0.05mm / 660 Silk Covered For Motor 1

Customized Ustc Litz Wire 44 Awg 0.05mm / 660 Silk Covered For Motor 2

Customized Ustc Litz Wire 44 Awg 0.05mm / 660 Silk Covered For Motor 3
