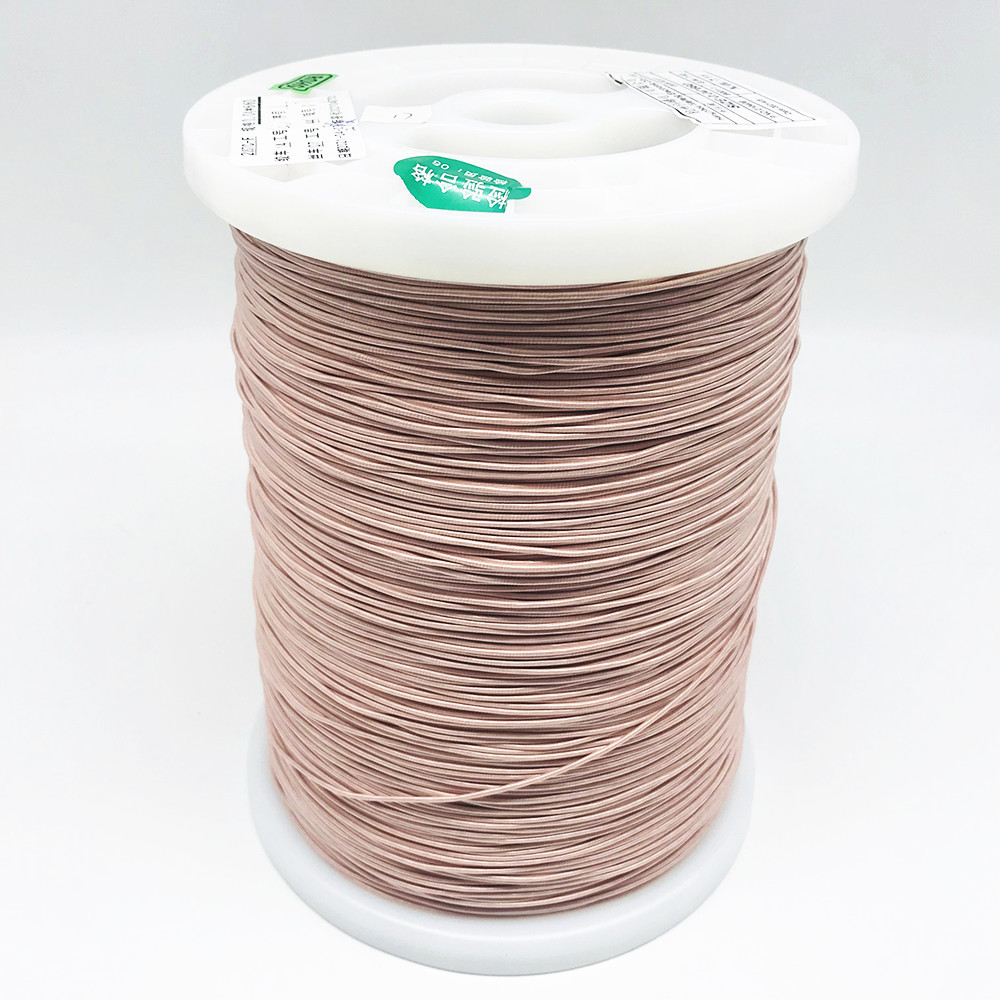

Name: Ustc155 Copper Litz Wire 0.03mm * 10 Silk Covered Stranded
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Ustc155 Copper Litz Wire 0.03mm * 10 Silk Covered Stranded

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	USTC155 0.03mm * 10 Silk Covered Copper Stranded Wire Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	10
Highlight:	ustc155 copper litz wire , 0.03mm copper litz wire , stranded ustc litz wire

Product Description

USTC155 0.03mm * 10 Silk Covered Copper Stranded Wire Litz Wire

Model: 0.03mm x 10 Silk /Nylon covered Litz wire employs a stranded wire with individually insulated conductors (forming abundle), wraped with nylon jacket.
The nylon cover can improve the winding efficiency, especially at high speed.

Name	USTC155 0.03mm * 10 Silk Covered Copper Stranded Wire Litz Wire
Key word	USTC Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.03mm
Number of strands	10
Type	Silk covered litz wire

Technical requests	Test Results	Conclusion
Conductor diameter	0.03±0.002 mm	0.028	0.030
Overall size	Max.0.21	0.16	0.18
Strands	10	√	√
Twist Pitch	16±2 mm	√	√
Breakdown Voltage	Min.400V	1700	1900
Conductor Resistance	≤ 2.827Ω/m	2.48	2.49

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Ustc155 Copper Litz Wire 0.03mm * 10 Silk Covered Stranded 0

Ustc155 Copper Litz Wire 0.03mm * 10 Silk Covered Stranded 1

Ustc155 Copper Litz Wire 0.03mm * 10 Silk Covered Stranded 2

Ustc155 Copper Litz Wire 0.03mm * 10 Silk Covered Stranded 3
