Udtc Ustc Litz Wire Silk Covered 0.04mm 0.05mm 0.08mm 0.10mm

Basic Information

Get Best Price Contact Now

Detail Information

Name:	0.04mm 0.05mm 0.08mm 0.10mm USTC / UDTC Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	75
Highlight:	0.04mm ustc litz wire , silk cover ustc litz wire , 0.10mm ustc wire

Product Description

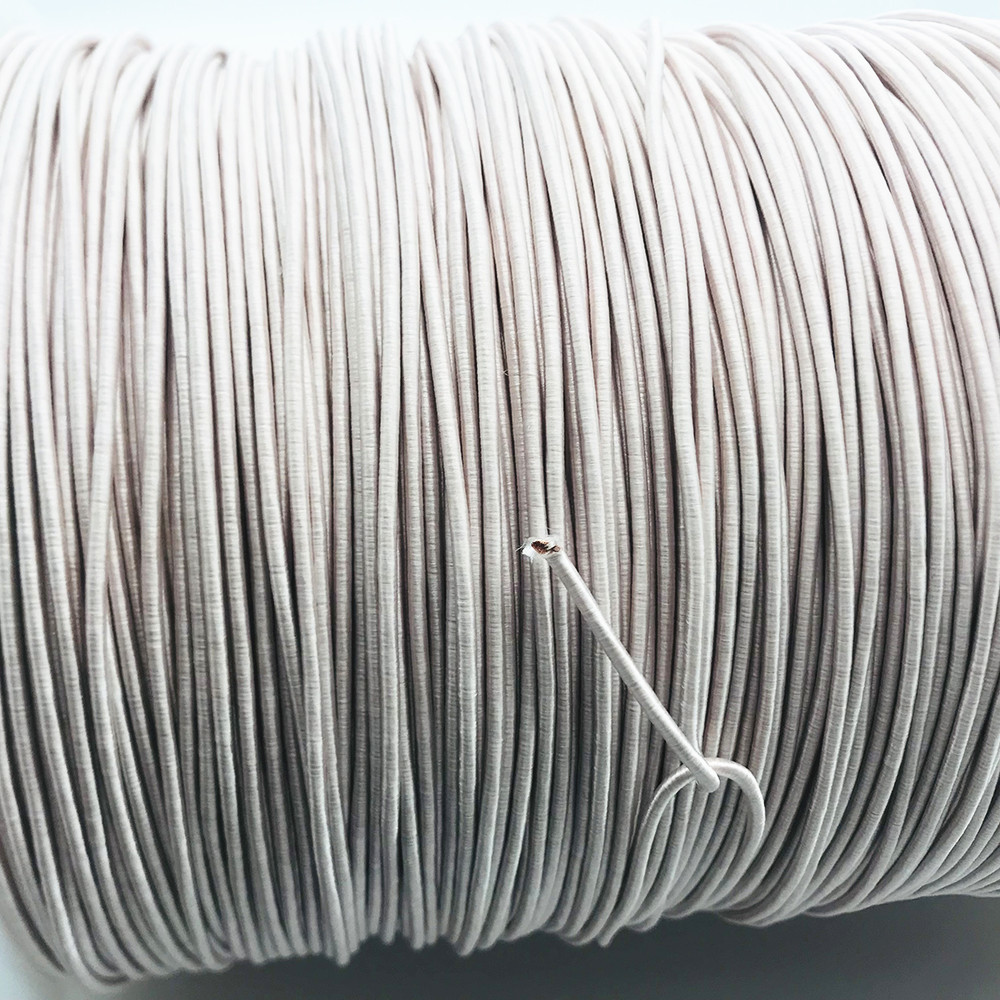

0.04mm 0.05mm 0.08mm 0.10mm USTC / UDTC Silk Covered Litz Wire

Typical application of litz wire stranded enameled copper magnet wire :

High frequency coils.
LITZ is designed to withstand high frequency applications like motor winding transformer frequency changer, converter. It is suitable for heavy duty applications as well as severe temperature.

Name	0.04mm 0.05mm 0.08mm 0.10mm USTC / UDTC Silk Covered Litz Wire
Key word	USTC Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	75
Type	Silk covered litz wire

NO.	Characteristics	Technical requests	Test Results	Conclusion
1	Single wire Inner diameter	0.10±0.003	0.098-0.10	OK
2	Single wire outer diameter	MAX 1.29	1.10-1.14	OK
3	Structure(Number/ Single wire inner diameter )	0.10/75	0.10/75	OK
4	direction	right	right	OK
5	Strands	75	75	OK
6	Twist Pitch	27±3mm	27±3mm	OK
7	Breakdown Voltage	min 1100V	3100V	OK
8	Immersion tin test	390±5℃ 7S	OK	OK
9	Pin Hole	≤40/6m	7	OK
10	Package	According to requirement	OK	OK
Remark: The product meet the requirement of RoHS			Conclusion: Approved

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
