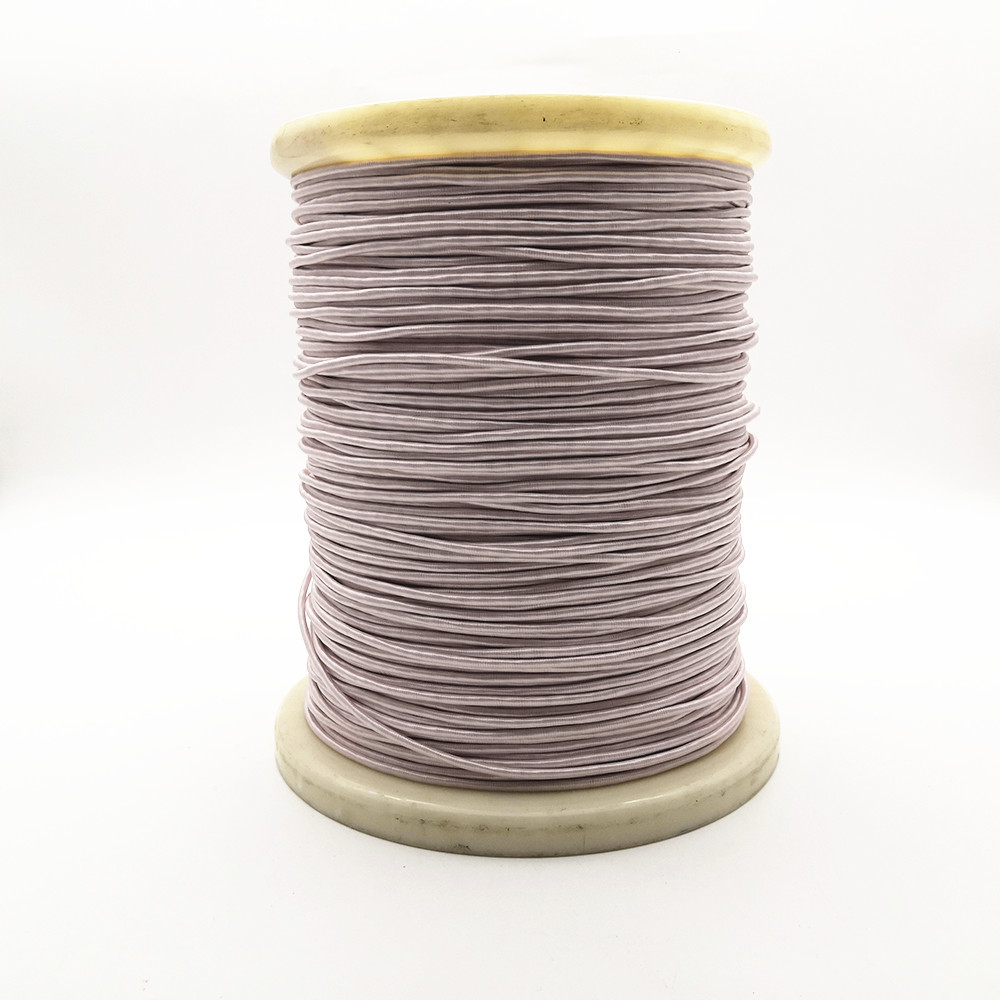

0.10mm Copper Litz Cable Nylon Covered Udtc Silk Covered For Transformer Winding

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Certification:	ISO9001/ISO14001/UL/SGS	Name:	0.10mm Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	75
High Light:	0.10mm copper litz cable , transformer winding copper litz cable , nylon covered ustc litz wire

Product Description

0.10mm Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding

Litz wire is a type of cable used in electronics to carry alternating current. The litz wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz.[1] It consists of many thin wire strands, individually insulated and twisted or woven together, following one of several carefully prescribed patterns, often involving several levels (groups of twisted wires are twisted together, etc.).

Name	0.10mm Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
Key word	USTC Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	75
Type	Silk covered litz wire

NO.	Characteristics	Technical requests	Test Results	Conclusion
1	Single wire Inner diameter	0.10±0.003	0.098-0.10	OK
2	Single wire outer diameter	MAX 1.29	1.10-1.14	OK
3	Structure(Number/ Single wire inner diameter )	0.10/75	0.10/75	OK
4	direction	right	right	OK
5	Strands	75	75	OK
6	Twist Pitch	27±3mm	27±3mm	OK
7	Breakdown Voltage	min 1100V	3100V	OK
8	Immersion tin test	390±5℃ 7S	OK	OK
9	Pin Hole	≤40/6m	7	OK
10	Package	According to requirement	OK	OK
Remark: The product meet the requirement of RoHS			Conclusion: Approved

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.10mm Copper Litz Cable Nylon Covered Udtc Silk Covered For Transformer Winding 0

0.10mm Copper Litz Cable Nylon Covered Udtc Silk Covered For Transformer Winding 1

0.10mm Copper Litz Cable Nylon Covered Udtc Silk Covered For Transformer Winding 2

0.10mm Copper Litz Cable Nylon Covered Udtc Silk Covered For Transformer Winding 3
