Ustc Silk Covered Enamel Coated Wire Stranded

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: USTC Litz Wire Silk Covered Enameled Copper Stranded Wire
Diameter: 0.05mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: Copper Litz Wire
No. Of Strands: 130
High Light:

ustc enamel coated wire

,

enamel coated wire silk covered

,

ustc litz enamel coated wire


Product Description

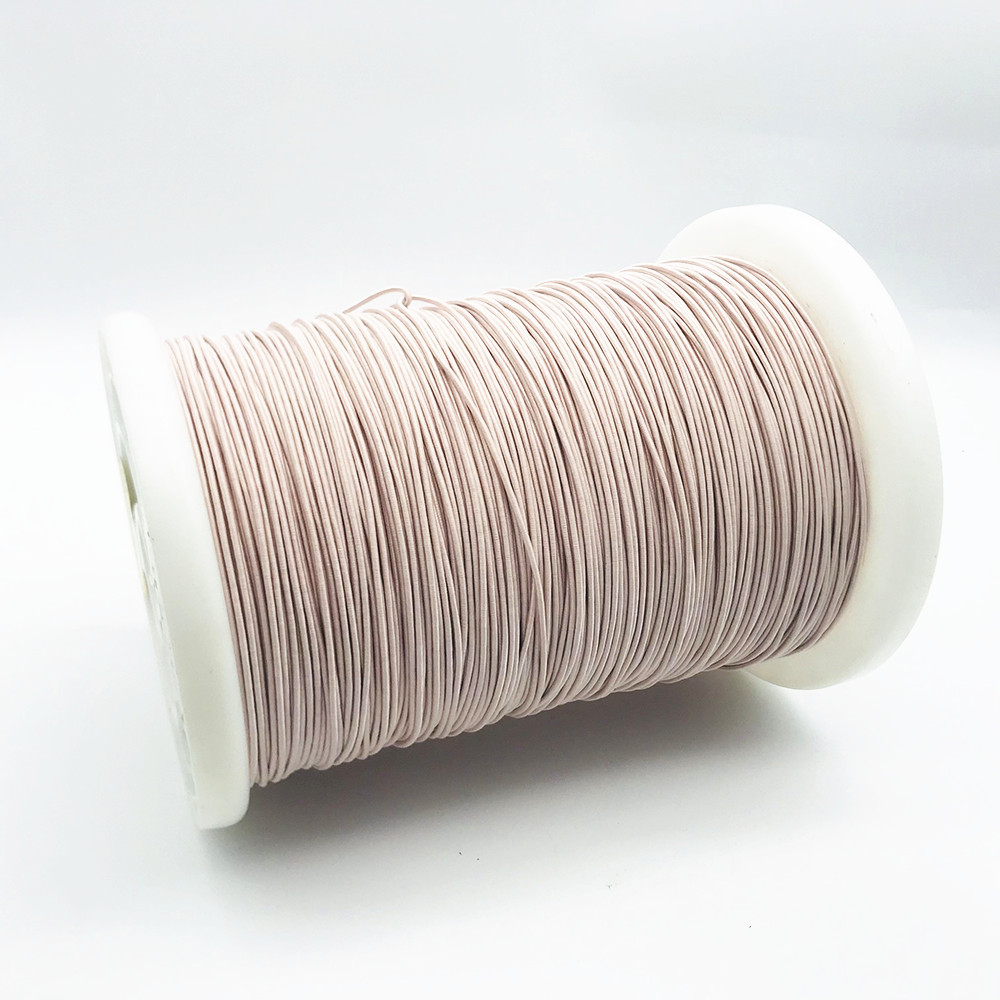

USTC Litz Wire Silk Covered Enameled Copper Stranded Wire



Silk covered litz wire is insulated with nylon or dacron.The silk covered litz wire is usually wrapped around a wire and made of artificial glass.If the temperature can reach 453K after impregnation in silicone resin, it has good insulation performance and high mechanical strength. The silk covered litz wire is used in precision electrical equipment.
The implementation of self bonding silked covered litz wire makes coil shape more beautiful.



Name

USTC Litz Wire Silk Covered Enameled Copper Stranded Wire

Key word

Copper litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.05mm

Number of strands

130

Type

Silk covered litz wire





Characteristics

Technical requests

Test Results

Conclusion

Conductor Inner diameter

0.05±0.003 mm

0.045-0.5mm

OK

Overall diameter

≤ 0.060 mm

0.055

OK

Twist direction

S/Z

Z

OK

Strands

130

130

OK

Twist Pitch

20.5±3 mm

20.6

OK

Breakdown Voltage

600V

1560

OK

Conductor Resistance

≤ 75.18Ω/km

76.16

OK

Solderability

YES

YES

OK



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Ustc Silk Covered Enamel Coated Wire Stranded 0

Ustc Silk Covered Enamel Coated Wire Stranded 1

Ustc Silk Covered Enamel Coated Wire Stranded 2

Ustc Silk Covered Enamel Coated Wire Stranded 3
