0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: 0.05mm X 130 USTC Silk Covered Stranded Magnet Wire For Transformer
Diameter: 0.05mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: Copper Litz Wire
No. Of Strands: 130
High Light:

0.05mm ustc litz wire

,

transformer ustc litz wire

,

magnet ustc wire


Product Description

0.05mm x 130 USTC silk covered stranded magnet wire for transformer

High frequency silk covered litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.



The size of silk covered litz wire range we can make is 0.03-0.8mm, and strands number is 2-4000.

Name

0.05mm x 130 USTC silk covered stranded magnet wire for transformer

Key word

Copper litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.05mm

Number of strands 130

Type

Silk covered litz wire





Characteristics

Technical requests

Test Results

Conclusion

Conductor Inner diameter

0.05±0.003 mm

0.045-0.5mm

OK

Overall diameter

≤ 0.060 mm

0.055

OK

Twist direction

S/Z

Z

OK

Strands

130

130

OK

Twist Pitch

20.5±3 mm

20.6

OK

Breakdown Voltage

600V

1560

OK

Conductor Resistance

≤ 75.18Ω/km

76.16

OK

Solderability

YES

YES

OK



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

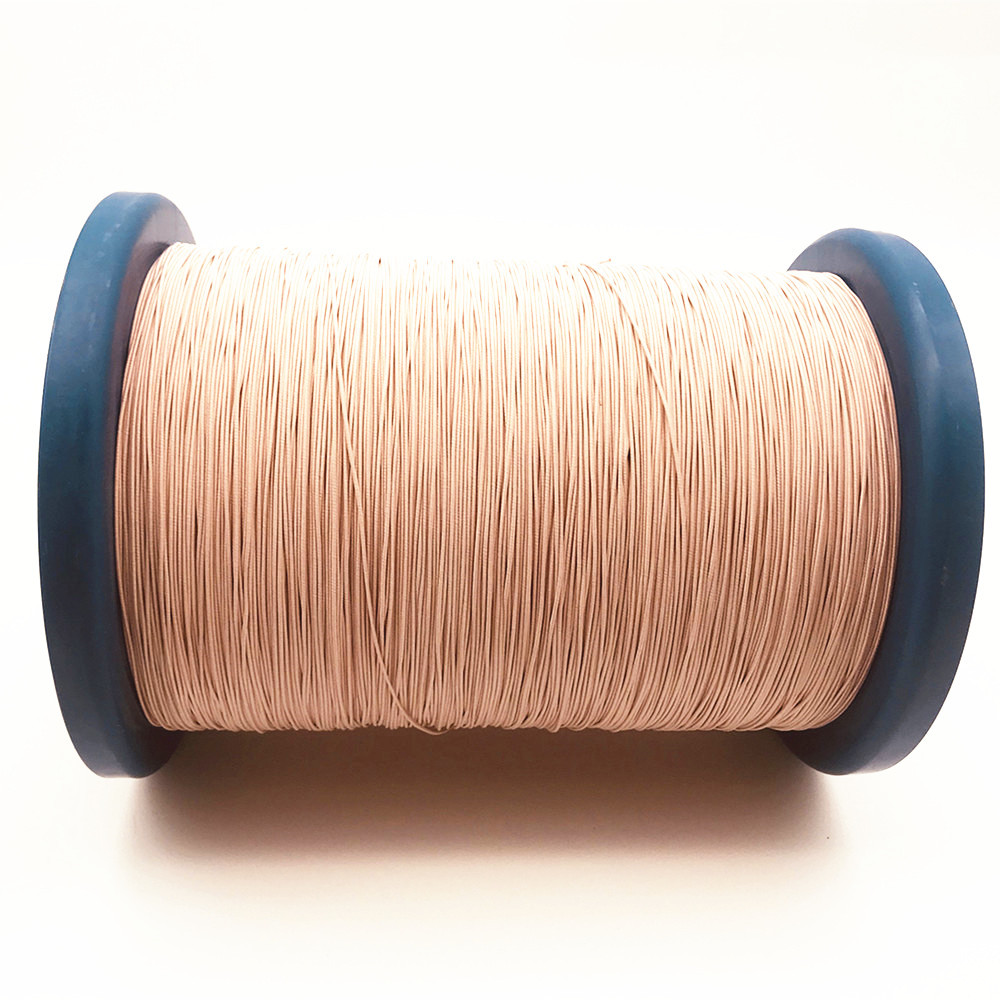

0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer 0

0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer 1

0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer 2

0.05mm X 130 Ustc Litz Wire Silk Covered Stranded Magnet For Transformer 3
