Name: Ustc F / H Copper Litz Wire High Frequency 38awg Enameled Stranded
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Ustc F / H Copper Litz Wire High Frequency 38awg Enameled Stranded

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	USTC F / H High Frequency 38AWG Enameled Stranded Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	95
Highlight:	copper litz wire high frequency , copper litz wire 38awg , 38awg ustc litz wire

Product Description

USTC F / H High Frequency 38AWG Enameled Stranded Copper Litz Wire

The size of copper litz wire we range from 0.03mm-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make the litz wire according to your request.

Name	USTC F / H High Frequency 38AWG Enameled Stranded Copper Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155 degree
Diameter of the enameled copper wire	0.1mm
Number of strands	95
Type	Enameled copper wire

Characteristics	Technical requests	Test Results	Conclusion
Conductor Inner diameter	0.10±0.003 mm	0.098-0.10mm	OK
Conductor Outer diameter	0.108-0.117 mm	0.110-0.114mm	OK
Overall diameter	MAX.1.37mm	1.27-1.32mm	OK
Twist direction	S/Z	Z	OK
Strands	95	95	OK
Twist Pitch	27±3 mm	OK	OK
Breakdown Voltage	1300V	2900	OK
Conductor Resistance	≤ 0.02457Ω/m	0.0226	OK
Solderability	YES	YES	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

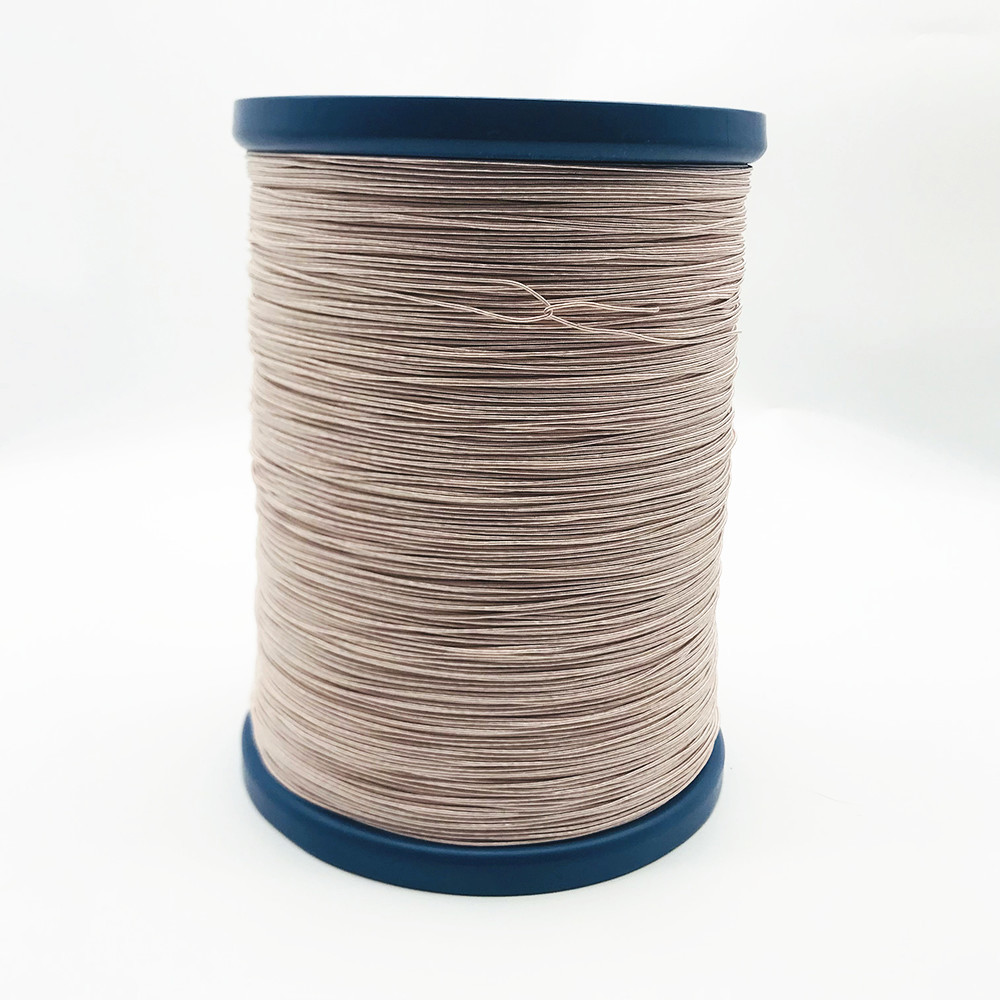

Ustc F / H Copper Litz Wire High Frequency 38awg Enameled Stranded 0

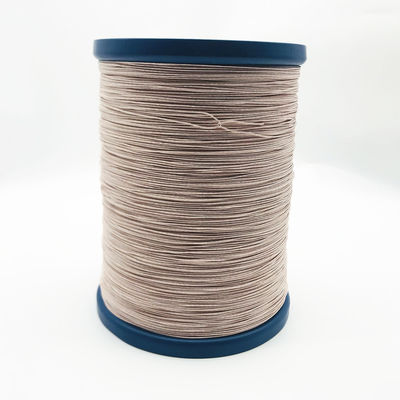

Ustc F / H Copper Litz Wire High Frequency 38awg Enameled Stranded 1

Ustc F / H Copper Litz Wire High Frequency 38awg Enameled Stranded 2

Ustc F / H Copper Litz Wire High Frequency 38awg Enameled Stranded 3
