Silk Covered Ustc Litz Wire 0.10 Mm X 95 Twisting Insulated Copper

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: USTC Silk Covered Litz Wire 0.10 Mm X 95 Twisting Insulated Copper Litz Wire
Diameter: 0.1mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: Copper Litz Wire
No. Of Strands: 95
High Light:

ustc litz wire 0.10 mm

,

twisting ustc litz wire

,

ustc wire litz


Product Description

USTC Silk Covered Litz Wire 0.10 mm x 95 Twisting Insulated Copper Litz Wire

Silk covered litz wire is also called USTC WIRE,which utilizes the insulation of UEW and artificial fiber,the interlayer capacitance will be lower to achieve outstanding performance at high frequence and increasing "Q" value. We also can provide self onding USTC wire.

We can customize according to your requirements for single wire diameter and number of strands.

Name

USTC Silk Covered Litz Wire 0.10 mm x 95 Twisting Insulated Copper Litz Wire

Key word

Copper litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.1mm

Number of strands 95

Type

Enameled copper wire





Characteristics

Technical requests

Test Results

Conclusion

Conductor Inner diameter

0.10±0.003 mm

0.098-0.10mm

OK

Conductor Outer diameter

0.108-0.117 mm

0.110-0.114mm

OK

Overall diameter

MAX.1.37mm

1.27-1.32mm

OK

Twist direction

S/Z

Z

OK

Strands

95

95

OK

Twist Pitch

27±3 mm

OK

OK

Breakdown Voltage

1300V

2900

OK

Conductor Resistance

≤ 0.02457Ω/m

0.0226

OK

Solderability

YES

YES

OK



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

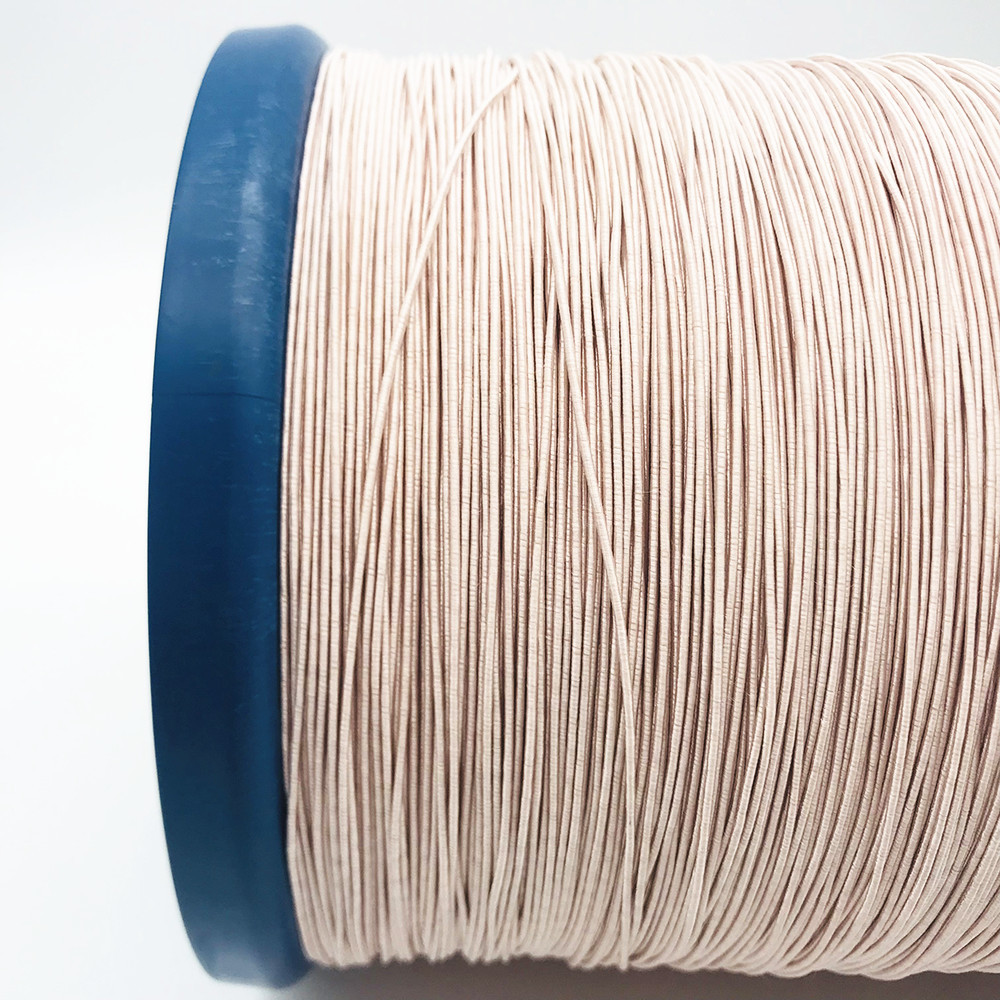

Silk Covered Ustc Litz Wire 0.10 Mm X 95 Twisting Insulated Copper 0

Silk Covered Ustc Litz Wire 0.10 Mm X 95 Twisting Insulated Copper 1

Silk Covered Ustc Litz Wire 0.10 Mm X 95 Twisting Insulated Copper 2

Silk Covered Ustc Litz Wire 0.10 Mm X 95 Twisting Insulated Copper 3
