0.5 Mm Customized High Temperature Magnet Wire 220 Degree Flat / Rectangular

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	2.4mm * 0.5 mm

Minimum Order Quantity:	10 Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Name:	2.4mm High Temperature 220 Degree Flat / Rectangular Enameled Copper Wire	Thermal Rating:	155/180
Insulation Material:	UEW	Width:	2.4mm
Thickness:	0.5mm	Type:	Flat / Rectangular Enameled Copper Wire
Key Word:	Rectangular Enameled Copper Wire
Highlight:	customized high temperature magnet wire , rectangular high temperature magnet wire , rectangular copper wire 220 degree

Product Description

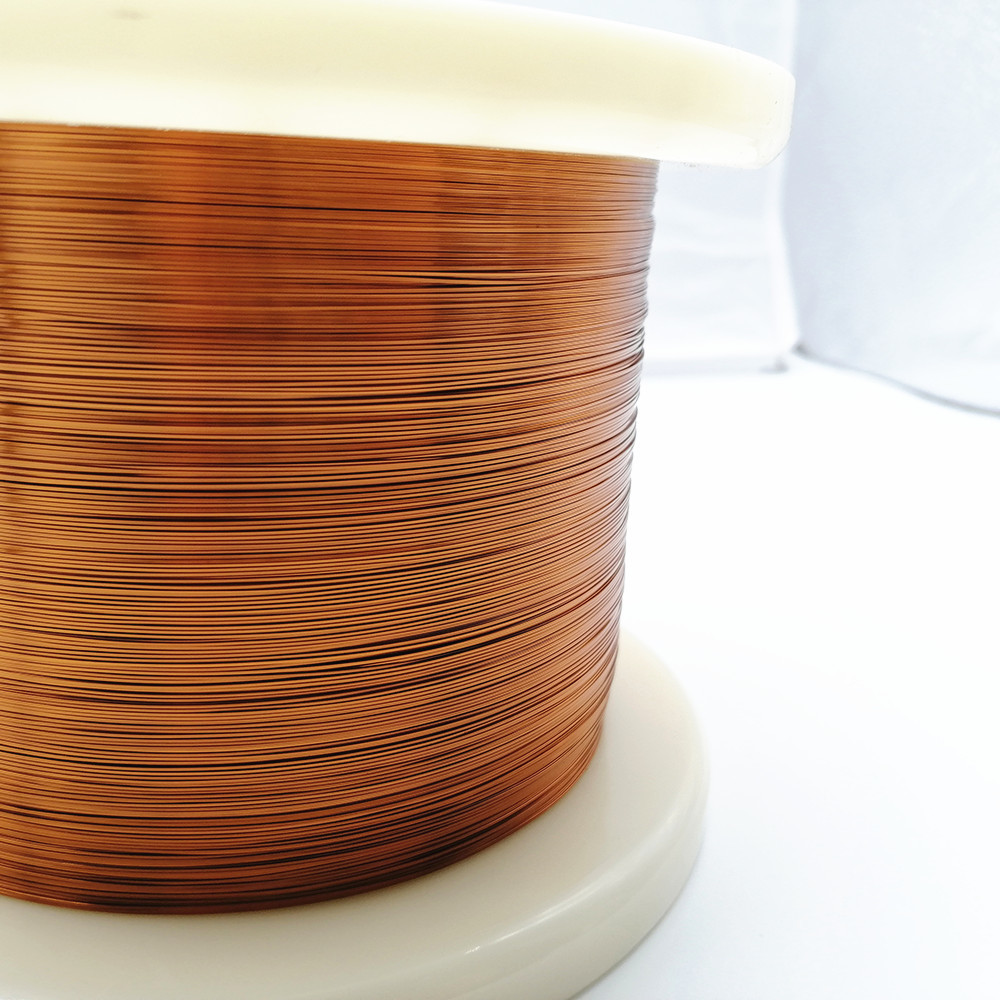

2.4mm High Temperature 220 Degree Flat / Rectangular Enameled Copper Wire

Rectangular enameled copper wire is a copper coated with a very thin layer of insulation, and the insulation of the rectangular enaemled copper wire also can be customized.

The size of this rectangular enameled copper wire is 2.4mm in width with 0.5mm in thickness.This rectangular enameled copper wire is mainly used for motor. The insulation of the rectangular enameled copper wire is AIW.

Name	Customized 220 Degree Flat / Rectangular Enameled Copper Wire
Key word	rectangular enameled copper wire
Insulation	Polyurethane
Thermal rating	180 degree
Width	2.4mm
Thickness	0.5mm
Type	rectangular enameled copper wire

Rectangular enameled copper wire, EI-AIWJ 220 2.40*0.5mm
Characteristics	Standard		Test result
APPEARANCE	Smooth, Equality		OK
Conductor diameter(mm)	Width	2.40±0.060	2.375
Conductor diameter(mm)	Thickness	0.50±0.009	0.492
Thickness of insulation(mm)	Width	0.020	0.040
Thickness of insulation(mm)	Thickness	0.030	0.045
Overall diameter	Width	2.500	2.415
Overall diameter	Thickness	0.550	0.637
Pinhole(Normal state)	Max.3/m		0
Elongation	Min.:≥30%		38
Flexibility and adherence	No crack		OK
Conductor resistance	Max. 15.71		15.11
Breakdown voltage(AC)	Min.0.7kv		1.50
Heatshock	No crack		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.5 Mm Customized High Temperature Magnet Wire 220 Degree Flat / Rectangular 0

Our workshop

0.5 Mm Customized High Temperature Magnet Wire 220 Degree Flat / Rectangular 2

0.5 Mm Customized High Temperature Magnet Wire 220 Degree Flat / Rectangular 3

Our customers

0.5 Mm Customized High Temperature Magnet Wire 220 Degree Flat / Rectangular 4
