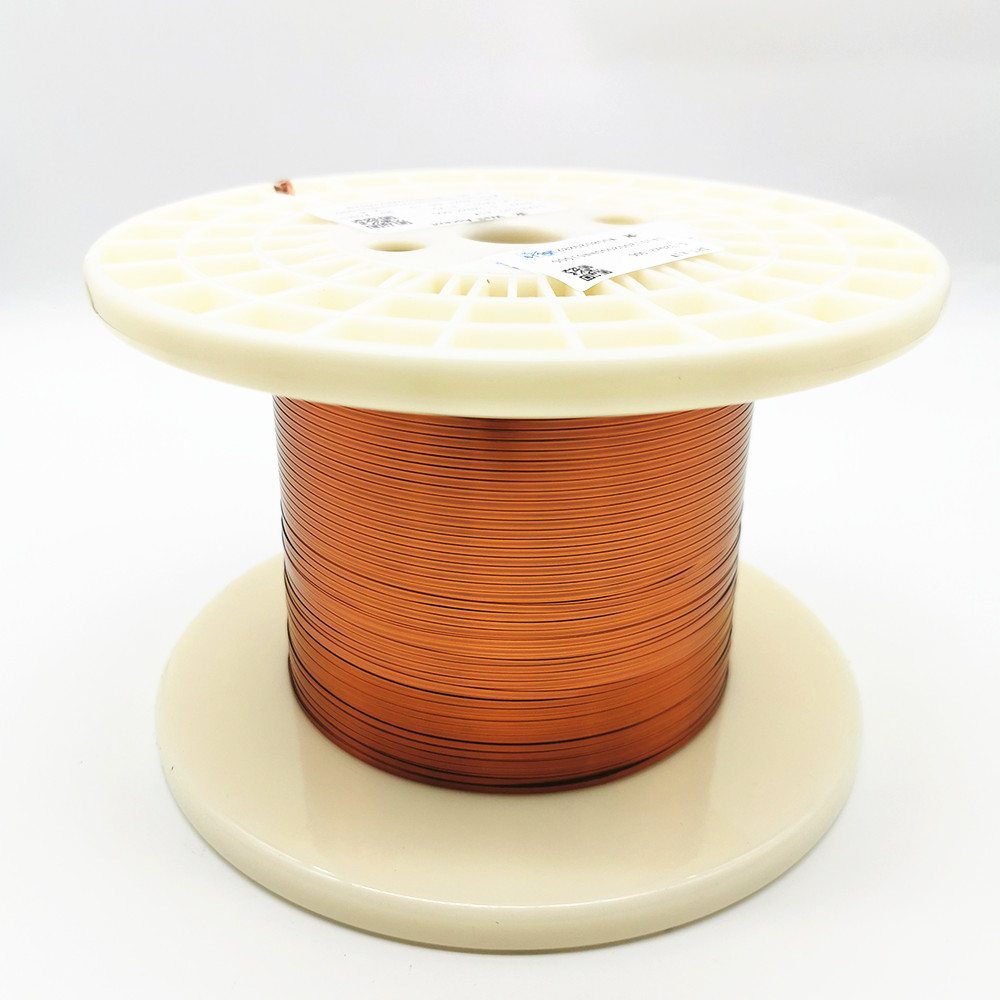

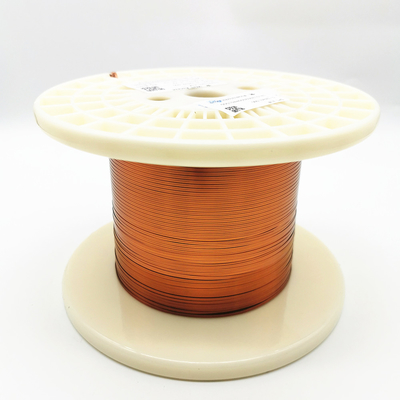

Self Bonding Flat Enameled Magnet Wire For Motor / Transformer

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 1.8*0.3mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Name: Self Bonding Flat Enameled Magnet Wire For Motor / Transformer Thermal Rating: 155/180
Insulation Material: UEW Width: 1.8mm
Thickness: 0.3mm Type: Self Bonding Rectangular Enameled Copper Wire
Key Word: Rectangular Enameled Copper Wire
High Light:

self bonding enameled magnet wire

,

flat enameled magnet wire

,

transformer enameled magnet wire


Product Description



Self Bonding Flat Enameled Magnet Wire For Motor / Transformer



We customzied rectangular enameled copper wire, both ordinary rectangular enameled copper wire and self bonding rectangular enameled copper wire.

Rectangular enameled copper wire is typically used in lightweight designs, dry transformers, small transformers and welding transformers.

The product that use rectangular enameled copper wire has such feature: simple in strauctures, good heat dissipation, stable performance and good consistency.





Name

Self Bonding Flat Enameled Magnet Wire For Motor / Transformer

Key word

rectangular enameled copper wire

Insulation

Polyurethane

Thermal rating

180 degree

Width

1.8mm

Thickness

0.3mm

Type

Self bonding rectangular enameled copper wire





Characteristics Standard Test Result
Appearance Smooth Equality Smooth Equality
Conductor Diameter Width 1.80±0.060 1.791
Thickness 0.30±0.009 0.295
Thickness Insulation Width 0.005 0.067
Thickness 0.005 0.043
Min Thickness of Bonding(mm) Width 0.005 0.007
Thickness 0.005 0.009
Overall Diameter Width 1.800-1.885 1.858
Thickness 0.335-0.345 0.338
Pinhole ≤3hole/m 0
Elongation ≥30 % 35
Flexibility and Adherence No crack No crack
Conductor Resistance (Ω/km at 20℃) ≤35.32 32.97
Breakdown Voltage ≥0.7KV 2.5KV
Heat shock No Crack No Crack
Conclution   Pass





Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand



Self Bonding Flat Enameled Magnet Wire For Motor / Transformer 0Self Bonding Flat Enameled Magnet Wire For Motor / Transformer 1



Our workshop

Self Bonding Flat Enameled Magnet Wire For Motor / Transformer 2



Self Bonding Flat Enameled Magnet Wire For Motor / Transformer 3



Our customers

Self Bonding Flat Enameled Magnet Wire For Motor / Transformer 4
