| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.8mm * 0.3mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Rectangular Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | UEW | Width: | 1.8mm |
| Thickness: | 0.3mm | Type: | Self Bonding Wire |
| High Light: | 180 degree rectangular enamelled copper wire,self bonding rectangular copper wire,180 degree rectangular copper wire |
||
1.8mm * 0.3mm 180 Degree Self Bonding Enameled Rectangular Copper Wire
We supply rectangular enameled copper wire, it' widely used in motor. The size can be customized.

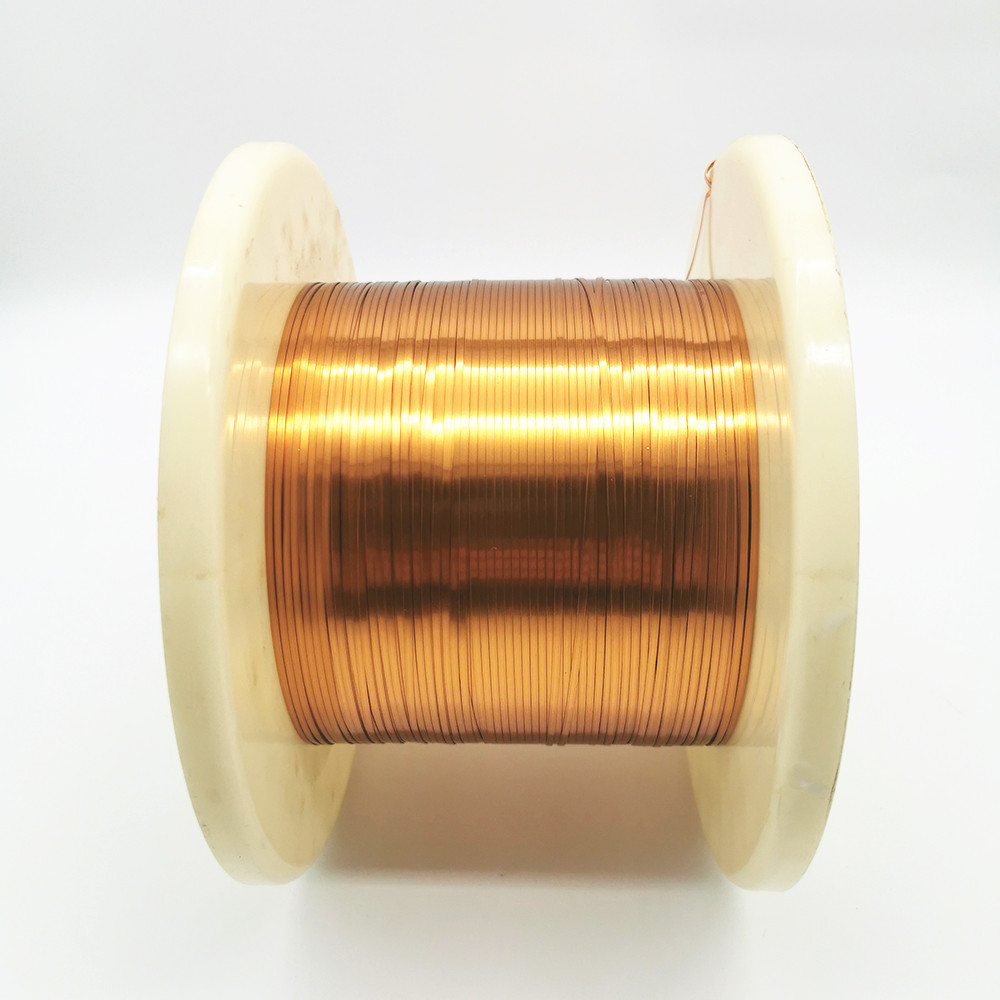

This reel is hot wind self bonding flat wire with thermal rating 180 Degree.
| Characteristics | Standard | Test Result | |
| Appearance | Smooth Equality | Smooth Equality | |
| Conductor Diameter | Width | 1.80±0.060 | 1.791 |
| Thickness | 0.30±0.009 | 0.295 | |
| Thickness Insulation | Width | 0.005 | 0.067 |
| Thickness | 0.005 | 0.043 | |
| Min Thickness of Bonding(mm) | Width | 0.005 | 0.007 |
| Thickness | 0.005 | 0.009 | |
| Overall Diameter | Width | 1.800-1.885 | 1.858 |
| Thickness | 0.335-0.345 | 0.338 | |
| Pinhole | ≤3hole/m | 0 | |
| Elongation | ≥30 % | 35 | |
| Flexibility and Adherence | No crack | No crack | |
| Conductor Resistance (Ω/km at 20℃) | ≤35.32 | 32.97 | |
| Breakdown Voltage | ≥0.7KV | 2.5KV | |
| Heat shock | No Crack | No Crack | |
| Conclution | Pass | ||
