| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW Wire | Material: | Copper |
|---|---|---|---|
| Diameter: | 0.12mm | Insulation: | Polyurethane |
| Breakdown Voltage: | Min. 4700v | MOQ: | 10kg |
| High Light: | 0.12mm fiw wire,high voltage fiw wire,fiw enameled copper winding wire |
||

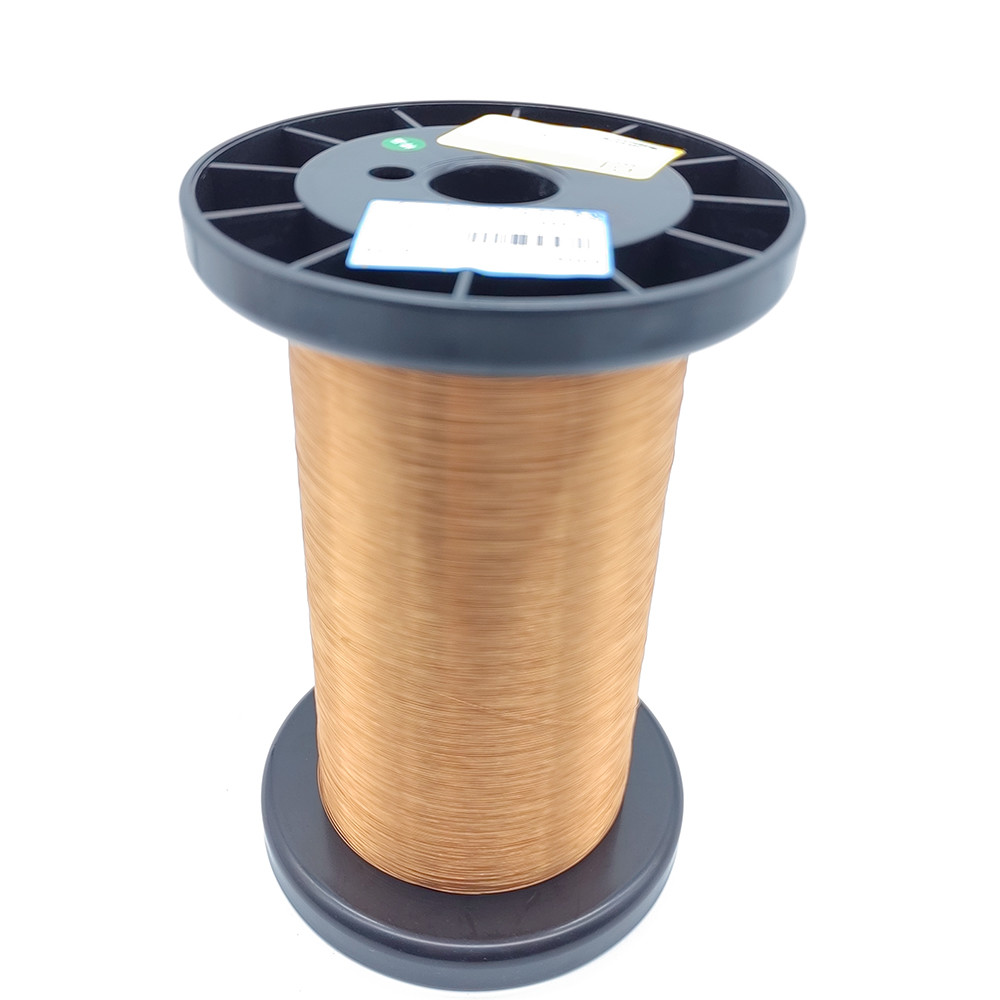

FIW4 0.12mm Enameled Copper Winding Wire High Voltage FIW
| Type & Diameter FIW4 0.120mm | ||||
| Test item | Standard Value | Reality value | ||
| Min. | Ave | Max. | ||
| Conductor dimensions(mm) | 0.120±0.002 | 0.120 | 0.120 | 0.120 |
| Overall dimensions(basecoat)(mm) | Max.0.173 | 0.165 | 0.165 | 0.166 |
| Insulation film thickness(mm) | Min.0.041 | 0.045 | 0.045 | 0.046 |
| Continuity of covering(pcs) | Max. 0 | Max. 0 | ||
| Adherence | Coating layer is good | OK | ||
| Breakdown Voltage(V) | Min.4704 | Min.8247 | ||
| Resistance to slftening(℃) | Continue 2 times pass | 230℃/Good | ||
| Solder test(390℃±5℃)(s) | Max. 2 | Max. 1.5 | ||
| Elongation(%) | Min.32 | 41 | 41 | 42 |
| Electrical Resistance/km | Max. 1585 | 1540 | 1540 | 1541 |
| Surface appearance | Smooth colory | Good | ||
