2.4mm * 0.15mm Rectangular Copper Wire Class 220 Flat Enameled

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.1*1.5
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Conductor Material: Rectangular Enameled Copper Wire Conductor Type: Solid
Width: 2.4mm Thickness: 0.15mm
Thermal Class: 220 Insulation: Amide-imide
High Light:

class 220 rectangular copper wire

,

enameled rectangular copper wire

,

enameled rectangular magnet wire


Product Description

2.4mm * 0.15mm Class 220 Flat Enameled Wire Rectangular Copper Wire



FEATURES AND BENEFITS

1) Excellent bending property

2) High flexibility of the enamel

3) Good resistance to abrasion

4) High mechanical property

5) Higher thermal property

6) Good resistance to refrigerant and freon

7) Suitable for windings that are subjected to constantly high temperature and mechanical stress

8) Good chemical resistance

9) Outstanding mechanical and chemical property

Model:SFT-EI/AIWJ 220 size: 2.4mm*0.15mm
Characteristics Standard Test Result
Apperance Smooth Equality Smooth Equality
Conductor Diameter Width 2.4±0.006 2.373
Thickness 0.15±0.009 0.155
Thickness Insulation Width ≥0.020 0.032
Thickness ≥0.030 0.040
Pinhole ≤3hole/m 0
Elongation ≥30 % 45
Flexibility and Adherence No crack No crack
Conductor Resistance (Ω/km at 20℃) ≤52.94 48.28
Breakdown Voltage ≥0.7KV 1.5KV
Heat shock No Crack No Crack
Conclution Pass

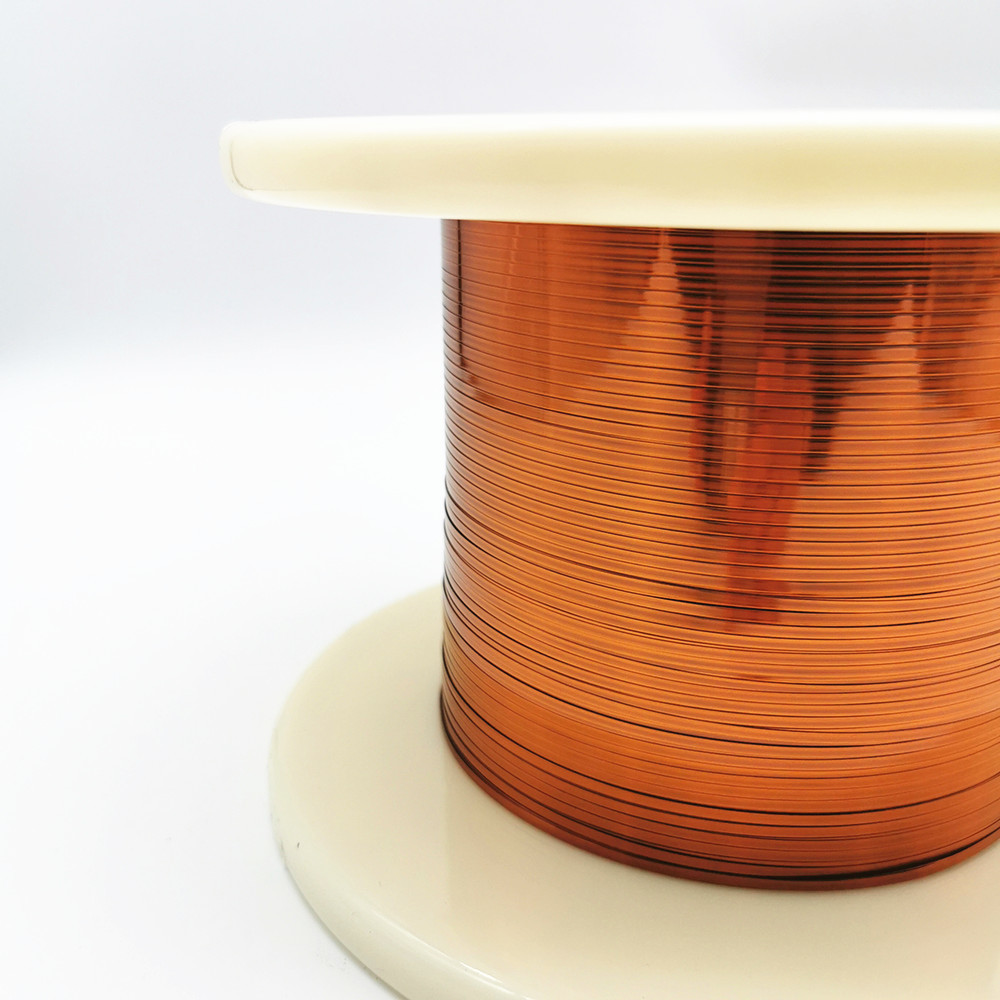

2.4mm * 0.15mm Rectangular Copper Wire Class 220 Flat Enameled 0
