| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 2*1.12mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Conductor Material: | Rectangular Enameled Copper Wire | Conductor Type: | Solid |
|---|---|---|---|
| Width: | 2.0mm | Thickness: | 1.2mm |
| Thermal Class: | 220 | Insulation: | Amide-imide |
| High Light: | amide imide insulated rectangular magnet wire,enameled rectangular magnet wire,high temperature rectangular copper wire |
||

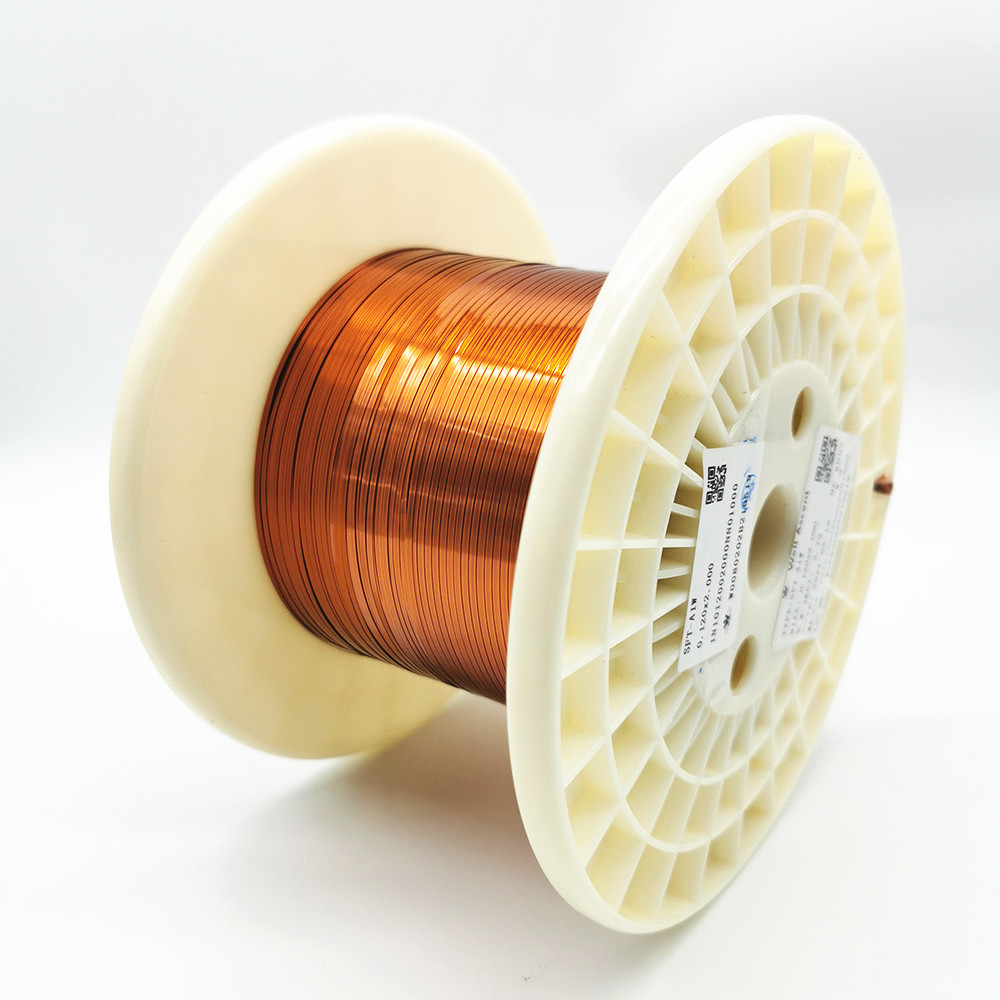

Amide-imide Insulated High Temperature Enameled Rectangular Wire
Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.
| Test report | |||||||||||||||
| Model | SFT-AIW 0.2*2.0 | ||||||||||||||
| Item | Conductor dimension | Thickness of insulation | Overall dimension | Dielectric breakdown voltage | Pinhole | Conductor resistance | Elongation | Apperance | Flexibility | Adherence | Thermal shock | ||||
| Unit |
Thickness (mm) |
Width (mm) |
Thickness (mm) |
Width (mm) |
Thickness (mm) |
Width (mm) |
kv | PCS/m | Ω/km 20℃ | % | No dirt | No crack | No crack | No crack | |
| Spec | Ave | 0.120 | 2.000 | 0.025 | 0.025 | ||||||||||
| Max | 0.129 | 2.060 | 0.040 | 0.040 | 0.170 | 2.10 | 3 | 77.870 | 30 | ||||||
| Min | 0.111 | 1.940 | 0.010 | 0.010 | 0.700 | ||||||||||
| No.1 | 0.118 | 1.992 | 0.018 | 0.014 | 0.153 | 2.019 | 2.520 | 72.630 | 40 | Not to be scratched, nodirt | Good | Good | Good | ||
| NO.2 | 0.119 | 1.993 | 0.018 | 0.014 | 0.153 | 2.020 | 2.410 | ||||||||
| Ave | 0.119 | 1.993 | 0.018 | 0.014 | 0.154 | 2.020 | 2.238 | ||||||||
| Result | ok | ok | ok | ok | ok | ok | ok | ok | ok | ok |
ok |
||||
