| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.2mm*0.2mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | Negotiation |
| Product Name: | Flat Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Width: | 1.2mm |
| Thickness: | 0.2mm | Conductor Material: | Copper |
| High Light: | polyurethane flat wire voice coil,180 grade flat wire voice coil,customizable flat magnet wire |
||

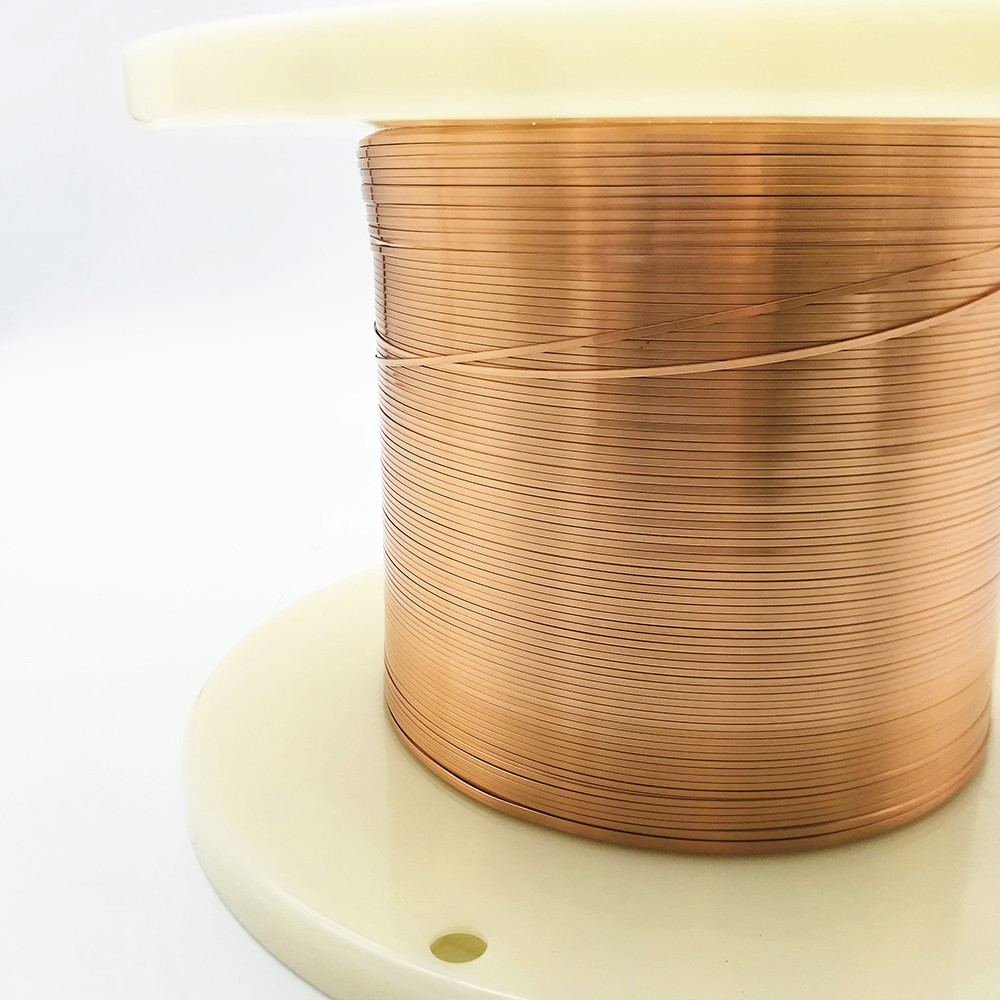

Customizable180 Grade Polyurethane Flat Enameled Copper Wire
Rectangular or flat wire is made from baseconductor with rectangular or square shape, it has high advantages compare with round wire, and applied in many fields. Conductor can be copper, alloy or CCA.
Application:
Inductor, transformer, line filter,mutual inductor, motor, voice coil, solenoid valve
| Rectangular enameled copper wire, model: SFT-UEWJ180, 1.20 * 0.20 mm | |||
| Characteristics | Standard | Test result | |
| Appearance | Smooth, Euiality | ok | |
| Conductor diameter(mm) | Width | 1.20±0.060 | 1.195 |
| Thickness | 0.20±0.009 | 0.197 | |
| Thickness of insulation | Width | 0.010 | 0.041 |
| Thickness | 0.010 | 0.035 | |
| Overall diameter(mm) | Width | 1.250 | 1.236 |
| Thickness | 0.240 | 1.236 | |
| Pinhole(Normal state) | Max ≤3 faults/1m | 0 | |
| Elongation(%) | Min. ≥30% | 40 | |
| Solderablity 390℃, 5s | Smooth with no draff | ok | |
| Flexibility and adherence | No crack | ok | |
| Conductor resistance(Ω/km,20℃,) | Max 79.72 | 74.21 | |
| Breakdown voltage(AC) | Min ≥0.70 kv | 2.00 | |
| Heatshock | No crack | ok | |
