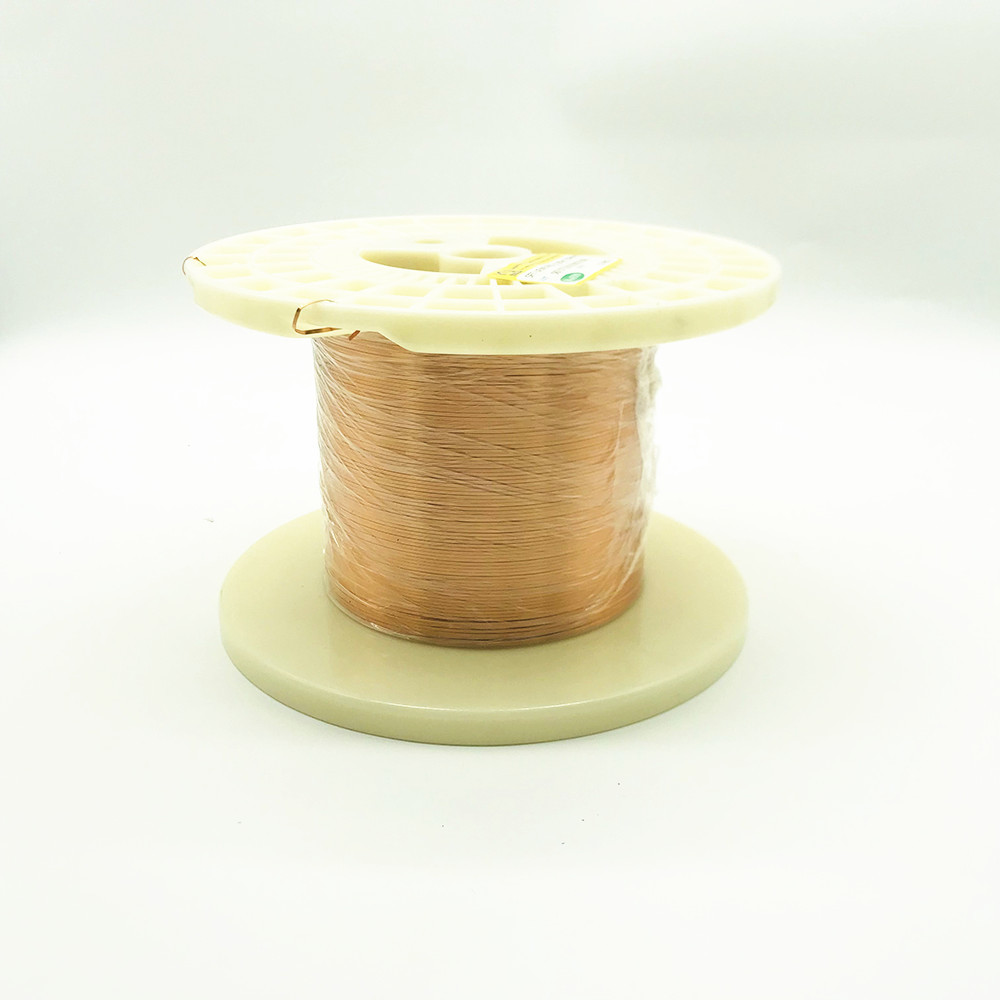

Uew 180 1.2mm * 0.2mm Rectangular Copper Wire Enameled

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 1.2mm*0.2mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Flat Enameled Copper Wire Thermal Rating: 180
Insulation Material: Polyurethane Width: 1.2mm
Thickness: 0.2mm Conductor Material: Copper
High Light:

0.2 mm enamelled copper wire enameled

,

uew 180 rectangular copper wire

,

ul rectangular copper wire


Product Description

UEW 180 1.2mm * 0.2mm Rectangualr Enameled Copper Wire



We offer enameled flat wire, 180 degrees and 220 degrees. The ratio is 25:1.

The insulation of the 1.2mm*0.2mm flat wire is polyurethane,  thermal rating is 180, for the motor.

We can also customize the  flat wire with different  size and insulation according to your requirements.



 Rectangular enameled copper wire, model: SFT-UEWJ180,  1.20 * 0.20 mm
Characteristics Standard   Test result
Appearance Smooth, Euiality    ok
Conductor diameter(mm) Width 1.20±0.060 1.195
Thickness 0.20±0.009 0.197
Thickness of insulation Width 0.010 0.041
Thickness 0.010 0.035
Overall diameter(mm) Width 1.250 1.236
Thickness 0.240 1.236
Pinhole(Normal state) Max ≤3 faults/1m 0
Elongation(%) Min. ≥30% 40
Solderablity 390℃, 5s Smooth with no draff ok
Flexibility and adherence No crack ok
Conductor resistance(Ω/km,20℃,) Max 79.72 74.21
Breakdown voltage(AC) Min ≥0.70 kv 2.00
Heatshock No crack ok



Uew 180 1.2mm * 0.2mm Rectangular Copper Wire Enameled 0
