| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.14*0.45mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Flat Enameled Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide-imid | Width: | 0.45mm |
| Thickness: | 0.14mm | Conductor Material: | Copper |
| High Light: | 0.45mm flat copper wire,super thin flat copper wire,super thin flat magnet wire |
||

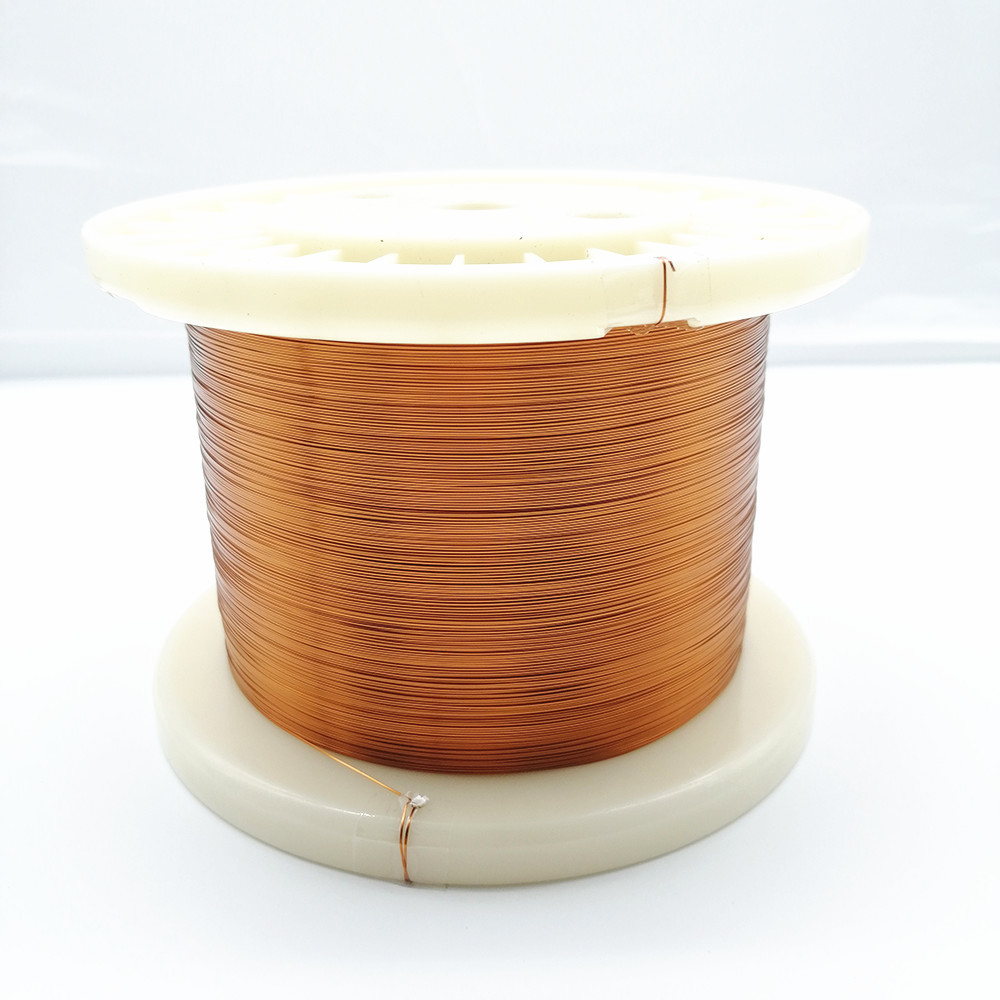

0.45mm Amide-imide Super thin flat magnet copper wire
Winding wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.
| SIZE AWG |
BARE DIAMETER (mm) |
Wire | Double film | Max | DC | Current | |||||||
| Corneas | Section | Approx | MIN | MAX | Approx | Winding | Resistance | Density | |||||
| Thermal Class | |||||||||||||
| Radius | Weight | Increment | DIA. | Weight | Tension | at 20°C | |||||||
| Min | Nor | Max | (mm) | (mm2) | (kg/km) | (mm) | (mm) | (kg/km) | (kg) | (ohm/km) | 155°C | 200°C | |
| 4 | 5.138 | 5.189 | 5.240 | 1.016 | 26.04 | 231.49 | 0.076 | 5.367 | 233.05 | 156 | 0.8153 | 171 | 257 |
| 5 | 4.575 | 4.620 | 4.666 | 1.016 | 20.46 | 181.87 | 0.076 | 4.793 | 183.22 | 122 | 1.028 | 135 | 202 |
| 6 | 4.074 | 4.115 | 4.155 | 0.813 | 16.37 | 145.49 | 0.076 | 4.282 | 146.68 | 97.9 | 1.296 | 108 | 161 |
| 7 | 3.630 | 3.665 | 3.701 | 0.813 | 12.86 | 114.37 | 0.076 | 3.828 | 115.40 | 76.9 | 1.634 | 85 | 127 |
| 8 | 3.231 | 3.264 | 3.297 | 0.813 | 10.09 | 89.67 | 0.076 | 3.424 | 90.56 | 60.3 | 2.060 | 66 | 100 |
| 9 | 2.878 | 2.906 | 2.934 | 0.660 | 8.07 | 71.75 | 0.076 | 3.061 | 72.54 | 48.3 | 2.599 | 53 | 80 |
| 10 | 2.563 | 2.588 | 2.614 | 0.660 | 6.32 | 56.22 | 0.076 | 2.741 | 56.91 | 37.8 | 3.278 | 42 | 62 |
| 11 | 2.278 | 2.304 | 2.329 | 0.508 | 5.09 | 45.22 | 0.076 | 2.456 | 45.84 | 30.4 | 4.135 | 33 | 50 |
| 12 | 2.027 | 2.052 | 2.078 | 0.508 | 3.99 | 35.46 | 0.076 | 2.205 | 36.01 | 23.9 | 5.213 | 26 | 39 |
| 13 | 1.803 | 1.829 | 1.854 | 0.406 | 3.20 | 28.48 | 0.076 | 1.981 | 28.98 | 19.2 | 6.562 | 21 | 32 |
| 14 | 1.603 | 1.628 | 1.654 | 0.406 | 2.51 | 22.30 | 0.076 | 1.781 | 22.74 | 15.0 | 8.283 | 17 | 25 |
