Ei / Aiw 3.00mm X 0.35mm Rectangular Enamelled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00*0.35mm
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enamelled Copper Wire Thermal Rating: 220
Insulation Material: AIW Width: 3.00mm
Thickness: 0.35mm Conductor Type: Solid
High Light:

ei rectangular enamelled copper wire

,

aiw rectangular enameled copper wire

,

rectangular enamelled copper wire


Product Description

EI/AIW 3.00mm x 0.35mm Rectangular Enameled Copper Wire ​



High space factor.

High bending reisitance and no crack.

The insulation thickness of corner is similar with flat surface that is easier to maintain insulation integrity.





Characteristics
Standard
Test Result
Appearance
Smooth Equality
Smooth Equality
Conductor Diameter
Width
3.00
±0.060
2.944
Thickness
0.35
±0.009
0.343
Thickness of Insulation
Width
0.020
0.056
Thickness
0.030
0.048
Overall Diameter
(Including bonding layer)
Width
3.100
3.000
Thickness
0.400
0.391
Pinhole
Max ≤3hole/m

0
Elongation
Min ≥30 %

41%
Flexibility and Adherence
No crack

No crack
Conductor Resistance (Ω/km at 20℃)
Max 17.64

17.43
Breakdown Voltage
Min 0.70kv

1.20
Heat shock
No Crack

No Crack

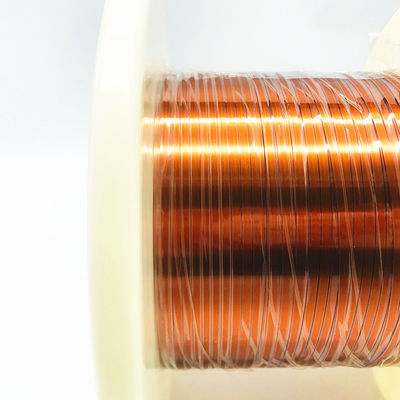

Ei / Aiw 3.00mm X 0.35mm Rectangular Enamelled Copper Wire 0
