High Temperature Magnet Winding Wire 2.0*0.75mm Enamel Coating

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.0*0.75mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enamelled Copper Wire Thermal Rating: 220
Insulation Material: AIW Width: 2mm
Thickness: 0.75mm Conductor Type: Solid
High Light:

high temperature magnet winding wire

,

enamel coating magnet winding wire

,

ultra fine magnet winding wire


Product Description

High Temperature Magnet Winding Wire 2.0*0.75mm Enamel Coating



1) Excellent bending property

2) High flexibility of the enamel

3) Good resistance to abrasion

4) High mechanical property

5) Higher thermal property

6) Good resistance to refrigerant and freon

7) Suitable for windings that are subjected to constantly high temperature and mechanical stress

8) Good chemical resistance

9) Outstanding mechanical and chemical property



Characteristics
Standard
Test Result
Appearance
Smooth Equality
Smooth Equality
Conductor Diameter
Width
2.00
±0.060
1.988
Thickness
0.75
±0.015
0.737
Thickness of Insulation
Width
0.020
0.052
Thickness
0.030
0.056
Overall Diameter
(Including bonding layer)
Width
2.100
2.040
Thickness
0.800
0.793
Pinhole
Max ≤3hole/m

0
Elongation
Min ≥30 %

41%
Flexibility and Adherence
No crack

No crack
Conductor Resistance (Ω/km at 20℃)
Max 13.38

12.53
Breakdown Voltage
Min 0.70kv

1.50
Heat shock
No Crack

No Crack

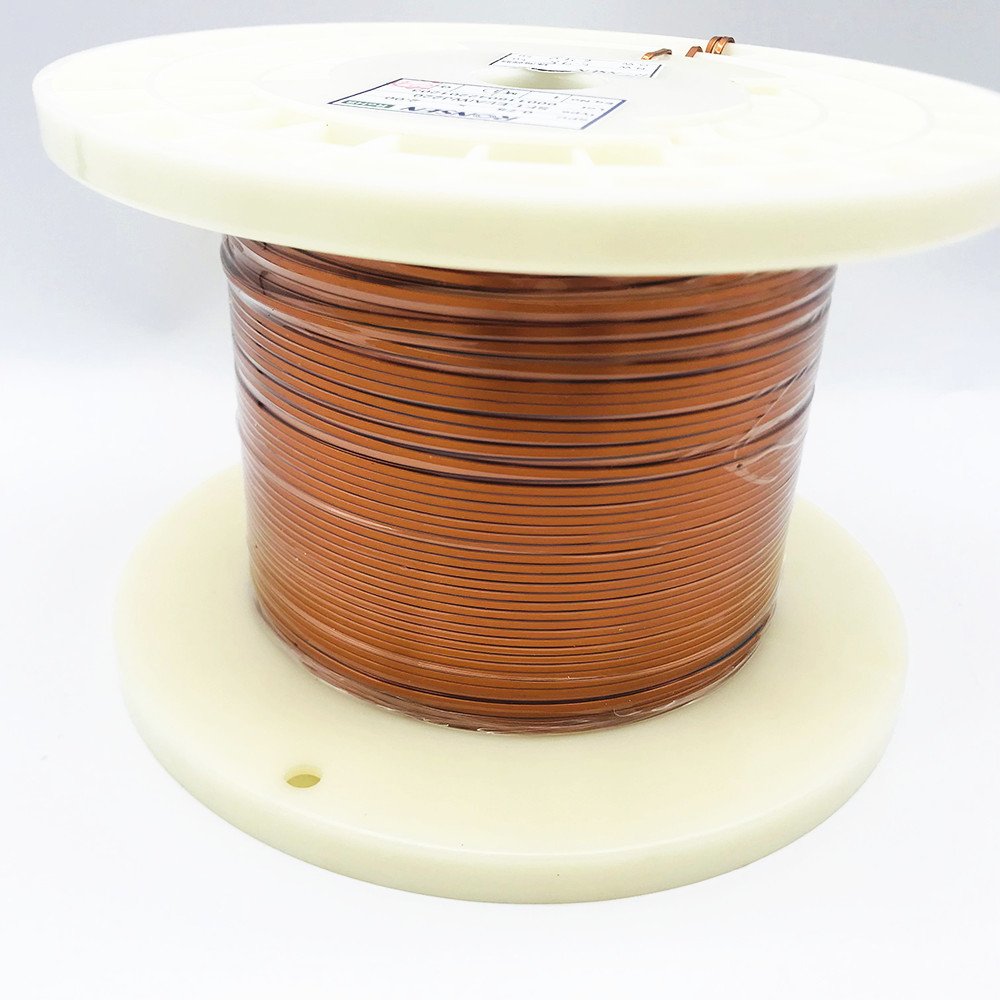

High Temperature Magnet Winding Wire 2.0*0.75mm Enamel Coating 0
