Polyimide Rectangular Copper Wire 2.0x0.75mm 220 Degree

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.0x0.75mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enamelled Copper Wire Thermal Rating: 220
Insulation Material: AIW Width: 2mm
Thickness: 0.75mm Conductor Type: Solid
High Light:

polyimide rectangular copper wire

,

220 degree rectangular copper wire

,

rectangular copper enameled magnet wire


Product Description

Polyimide 2.0x0.75mm 220 Degree Rectangular Enameled Copper Wire



Main Applications of enamelled copper wire
a)Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads.
b)Automotive sensors and coils as relais and ignition coils.
c)Generators,dry-type or oil-immersed.
d)Anti-explosion motor,air-conditioner compressor,washing machines.
e)Military and space applications.



Packing of enamelled copper wire : plastic spool,wooden spool and also can pack the goods according to the requirement of each client





Characteristics
Standard
Test Result
Appearance
Smooth Equality
Smooth Equality
Conductor Diameter
Width
2.00
±0.060
1.988
Thickness
0.75
±0.015
0.737
Thickness of Insulation
Width
0.020
0.052
Thickness
0.030
0.056
Overall Diameter
(Including bonding layer)
Width
2.100
2.040
Thickness
0.800
0.793
Pinhole
Max ≤3hole/m

0
Elongation
Min ≥30 %

41%
Flexibility and Adherence
No crack

No crack
Conductor Resistance (Ω/km at 20℃)
Max 13.38

12.53
Breakdown Voltage
Min 0.70kv

1.50
Heat shock
No Crack

No Crack

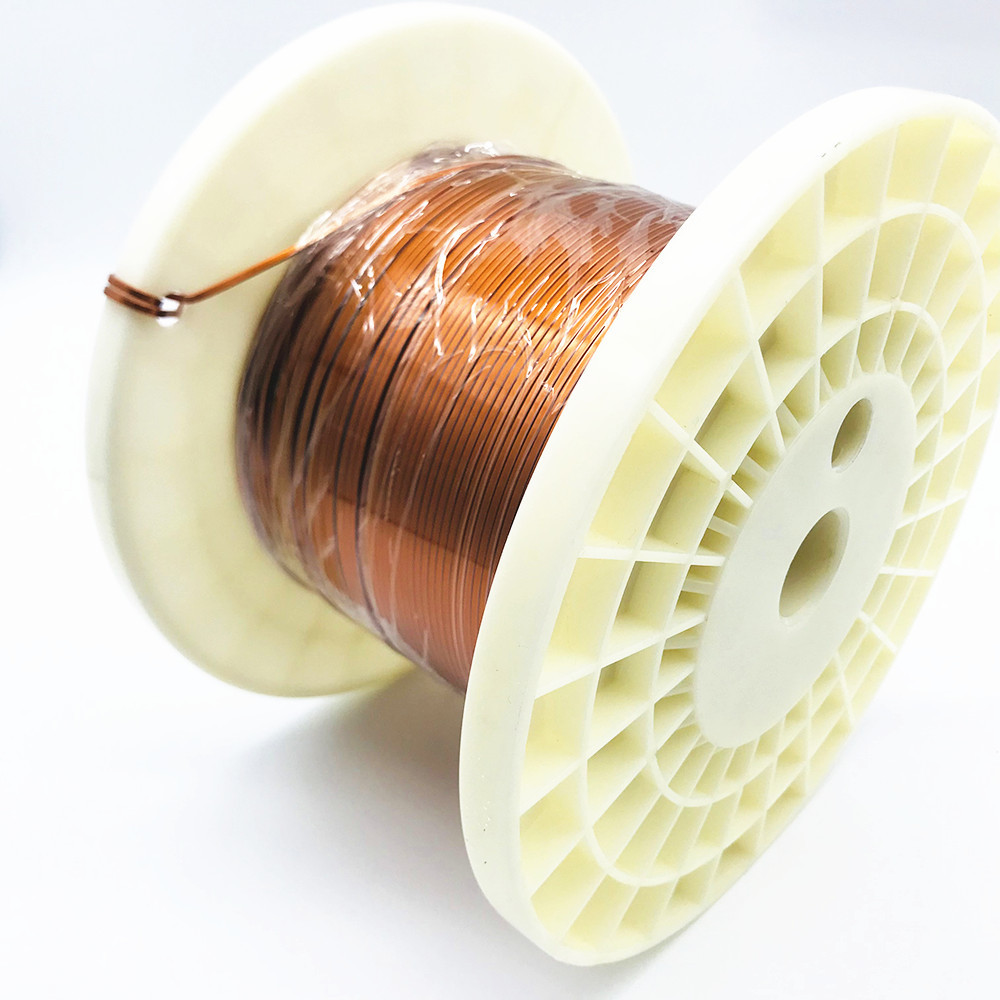

Polyimide Rectangular Copper Wire 2.0x0.75mm 220 Degree 0
