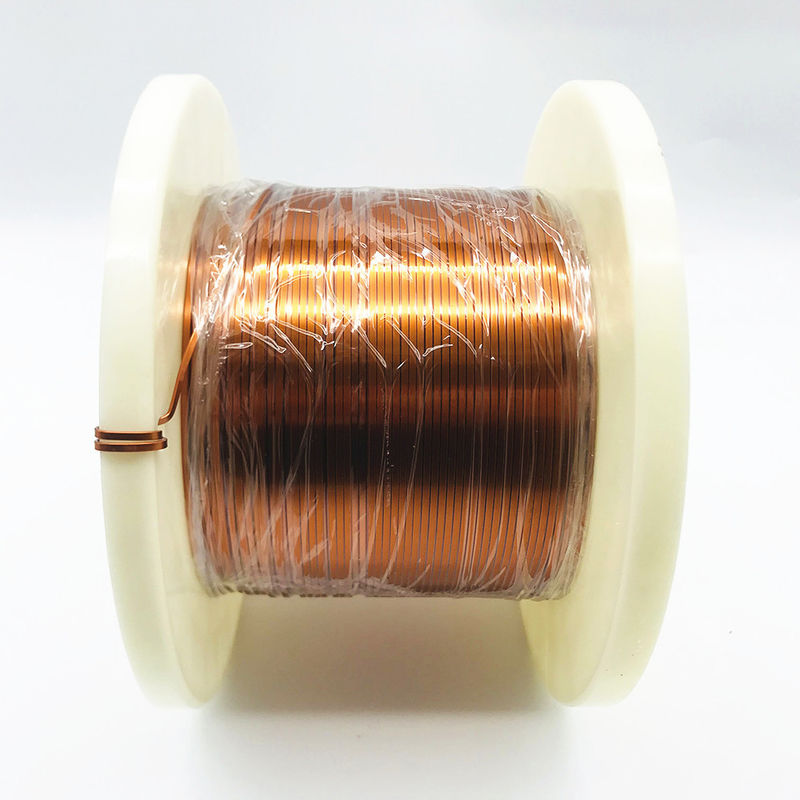

0.75mm X 2.0mm Class 220 Rectangular Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.75mm x 2.0mm

Minimum Order Quantity:	10 Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Rectangular Enamelled Copper Wire	Thermal Rating:	220
Insulation Material:	AIW	Width:	2mm
Thickness:	0.75mm	Conductor Type:	Solid
Highlight:	class 220 rectangular copper wire , 0.75mm x 2.0mm rectangular copper wire , rectangular magnet wire insulation

Product Description

0.75mm x 2.0mm Class 220 Rectangular Enameled Copper Wire

The flat enameled copper wire is widely used in Inductor, transformer, line filter,mutual inductor, motor, voice coil, solenoid valve.

Characteristics	Standard			Test Result
Appearance	Smooth Equality			Smooth Equality
Conductor Diameter	Width	2.00	±0.060	1.988
Conductor Diameter	Thickness	0.75	±0.015	0.737
Thickness of Insulation	Width	0.020		0.052
Thickness of Insulation	Thickness	0.030		0.056
Overall Diameter (Including bonding layer)	Width	2.100		2.040
Overall Diameter (Including bonding layer)	Thickness	0.800		0.793
Pinhole	Max ≤3hole/m			0
Elongation	Min ≥30 %			41%
Flexibility and Adherence	No crack			No crack
Conductor Resistance (Ω/km at 20℃)	Max 13.38			12.53
Breakdown Voltage	Min 0.70kv			1.50
Heat shock	No Crack			No Crack
