Aiw 0.3 Mm * 0.18mm Rectangular Copper Wire Super Fine Enameled

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm*0.18mm
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/month
Detail Information
Product: Rectangular Enameled Copper Wire Thermal Grade: 220
Width: 0.3mm Thickness: 0.18mm
Insulation: AIW Conductor Material: Copper
High Light:

rectangular copper wire enameled

,

rectangular copper wire super fine

,

rectangular thin insulated copper wire


Product Description

AIW 0.3 mm * 0.18mm Super Fine Rectangular Enameled Copper Wire

Rectangular enameled copper wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Round and rectangular enameled copper wire Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.



Characteristics
Standard
Test Result
Appearance
Smooth Equality
Smooth Equality
Conductor Diameter
Width
0.30
±0.050
0.300
Thickness
0.18
±0.050
0.180
Thickness of Insulation
Width
0.010±0.0050
0.011
Thickness
0.010±0.0050
0.008
  Thickness of bonding layer                     Min.0.002                   0.003
Overall Diameter
(Including bonding layer)
Width
Max. 0.364
0.314
Thickness
Max. 0.219
0.191
Pinhole
Max ≤3hole/m

0
Elongation
Min ≥15 %

30%
Flexibility and Adherence
No crack

No crack
Conductor Resistance (Ω/km at 20℃)
Min.321.010
Max. 423.820
352.00
Breakdown Voltage
Min 050kv

1.65
Heat shock
No Crack

No Crack

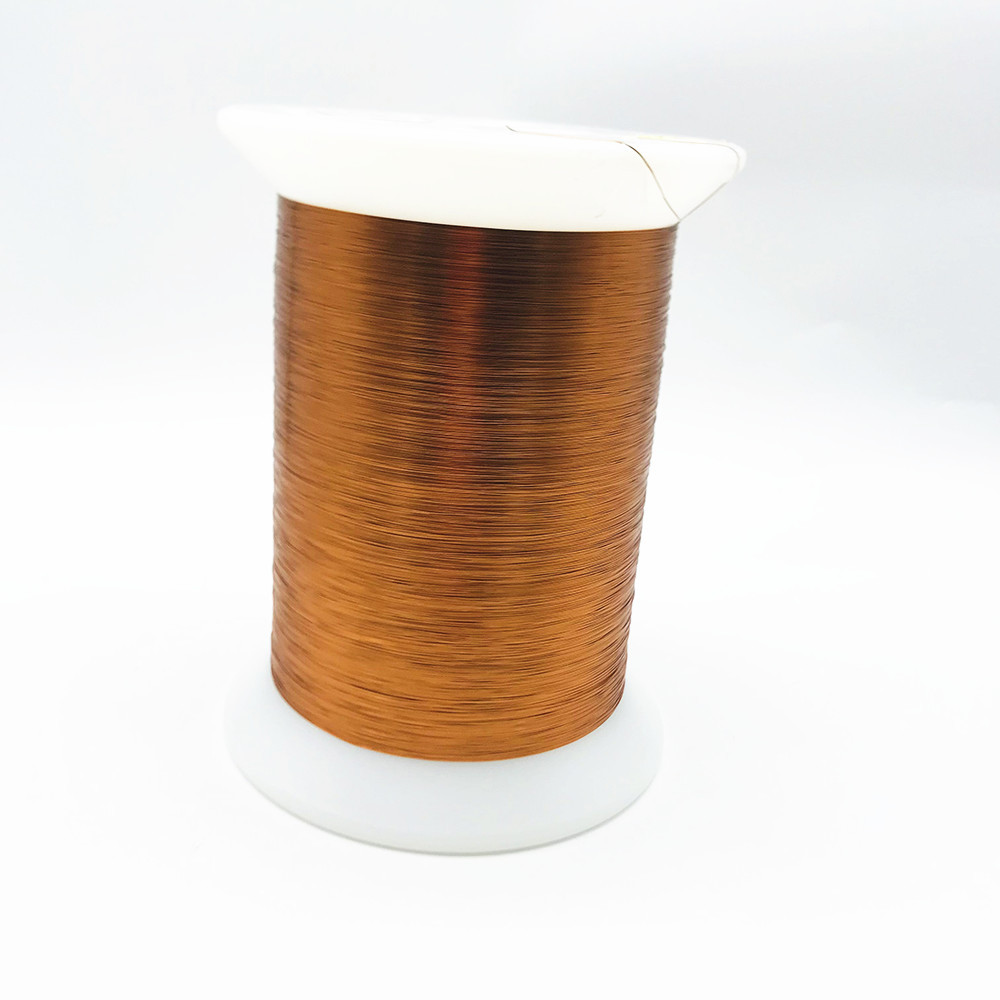

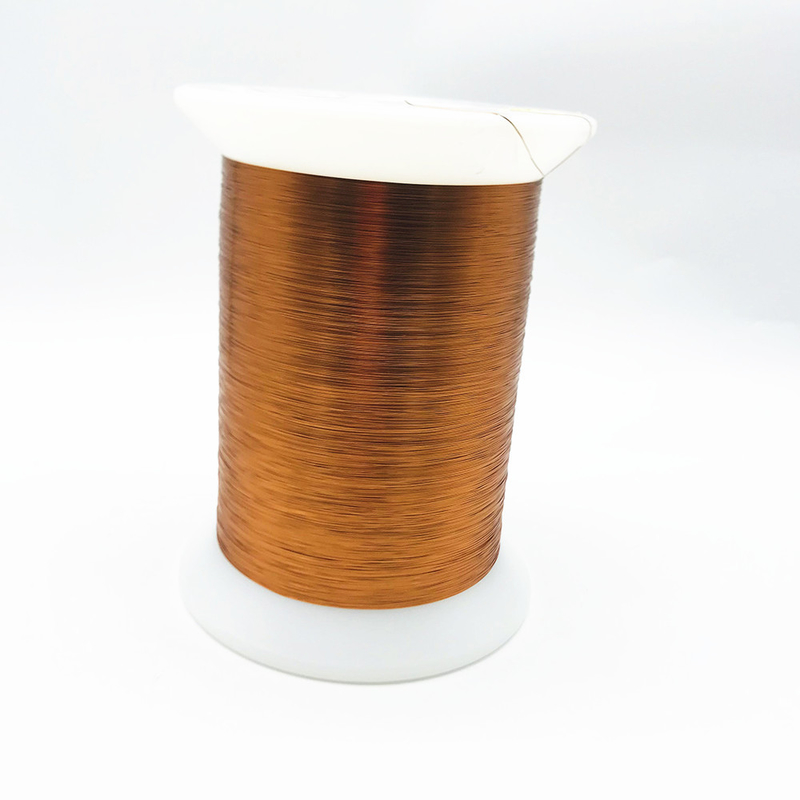

Aiw 0.3 Mm * 0.18mm Rectangular Copper Wire Super Fine Enameled 0Aiw 0.3 Mm * 0.18mm Rectangular Copper Wire Super Fine Enameled 1
