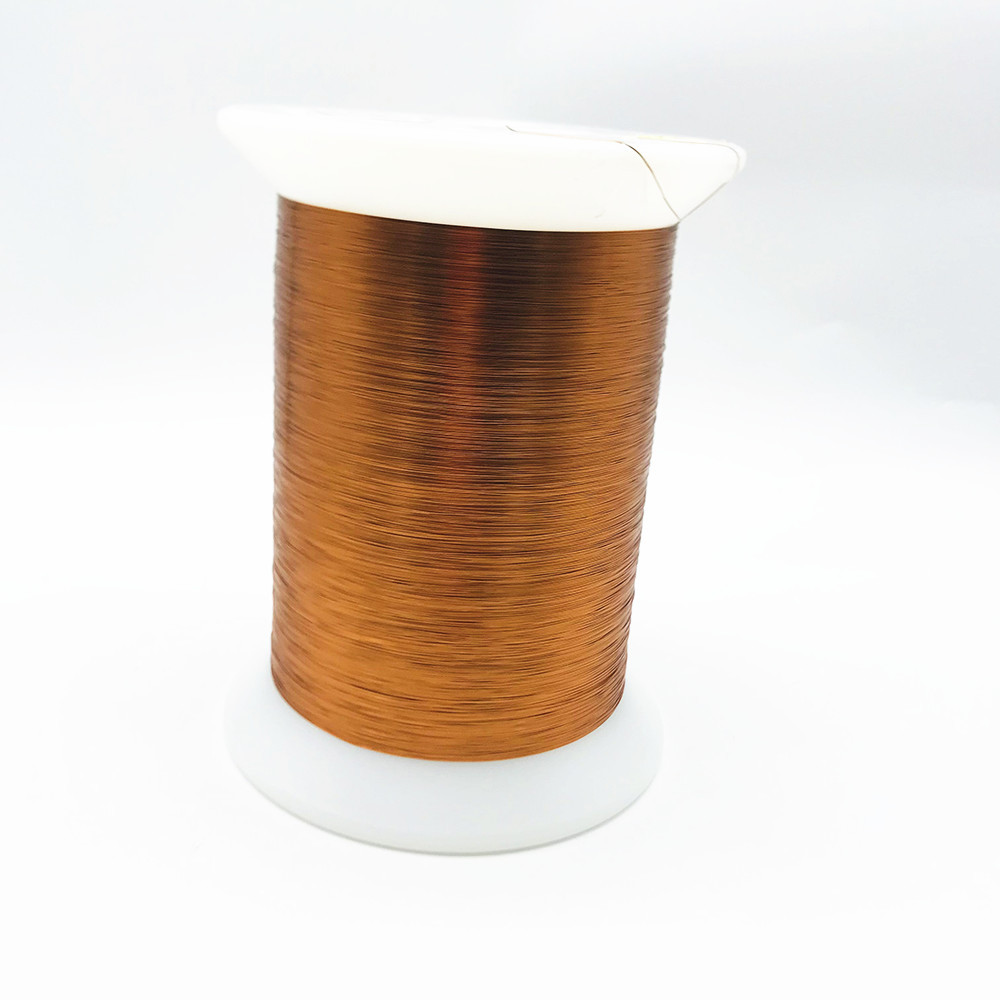

Amide imide 0.3mm * 0.18mm Enameled Rectangular Copper Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm* 0.18
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 0.3mm
Thickness: 0.18mm Conductor Material: Copper

Product Description

Amide imide 0.3mm * 0.18mm Enameled Rectangular Copper Wire

We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.050

0.298

0.299

0.300
Thickness
    0.18
±0.050
0.180 0.181
0.182
Thickness of self bonding layer
Min.
0.002
0.003 0.003
0.003
Thickness of insulation Thickness 0.005-0.015 0.008 0.008 0.008
  Width 0.005-0.015 0.011 0.011 0.011
Overall Diameter
(Including bonding layer)
Thickness
Max.0.219
0.201 0.202
0.203
Width
Max.0.364
0.326 0.327
0.328
Pinhole
1hole/m
  0
0
Elongation
Min ≥15%
30 30
30
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
423.82-321.01
352.000 352.000
352.000
Breakdown Voltage
Min 0.50kv
1.650 1.250
1.360
Heat shock
No Crack
No Crack

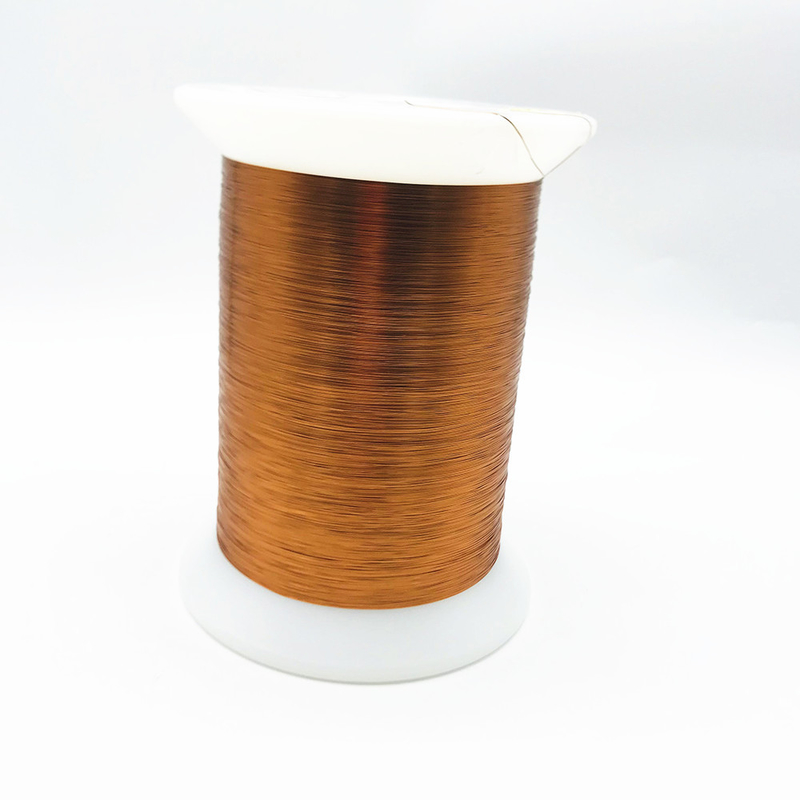

Amide imide  0.3mm * 0.18mm Enameled Rectangular Copper Wire 0
