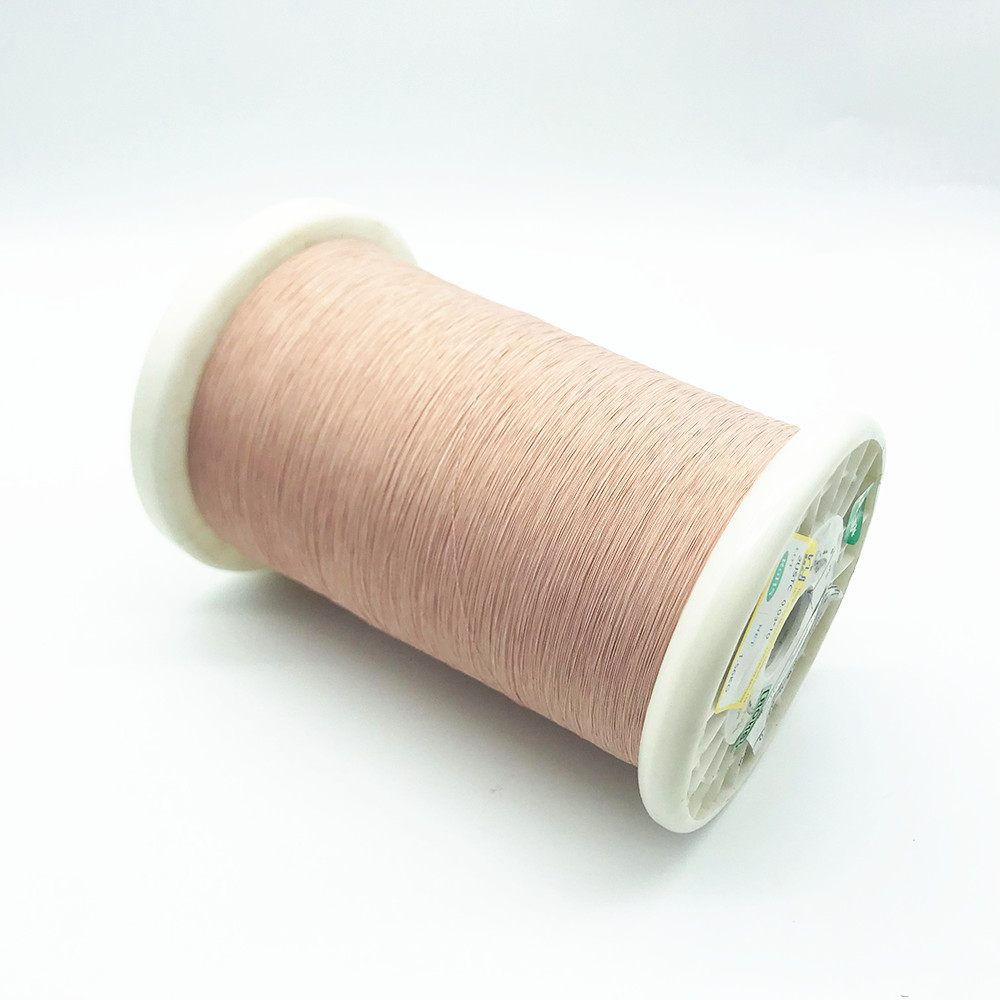

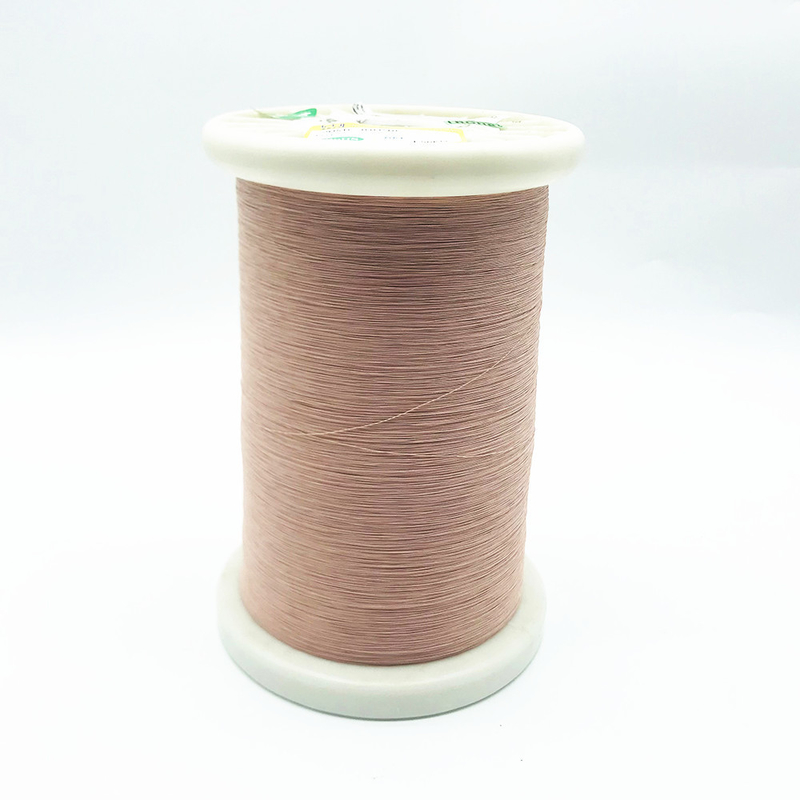

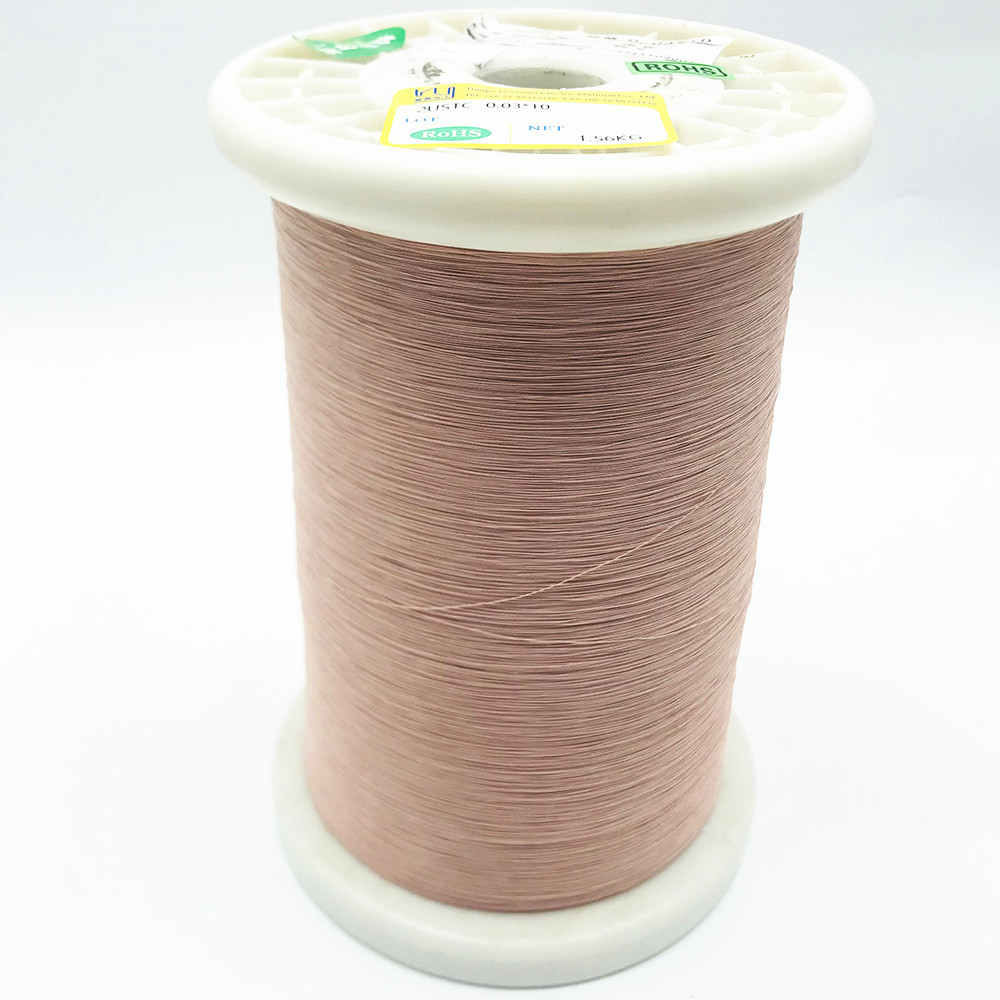

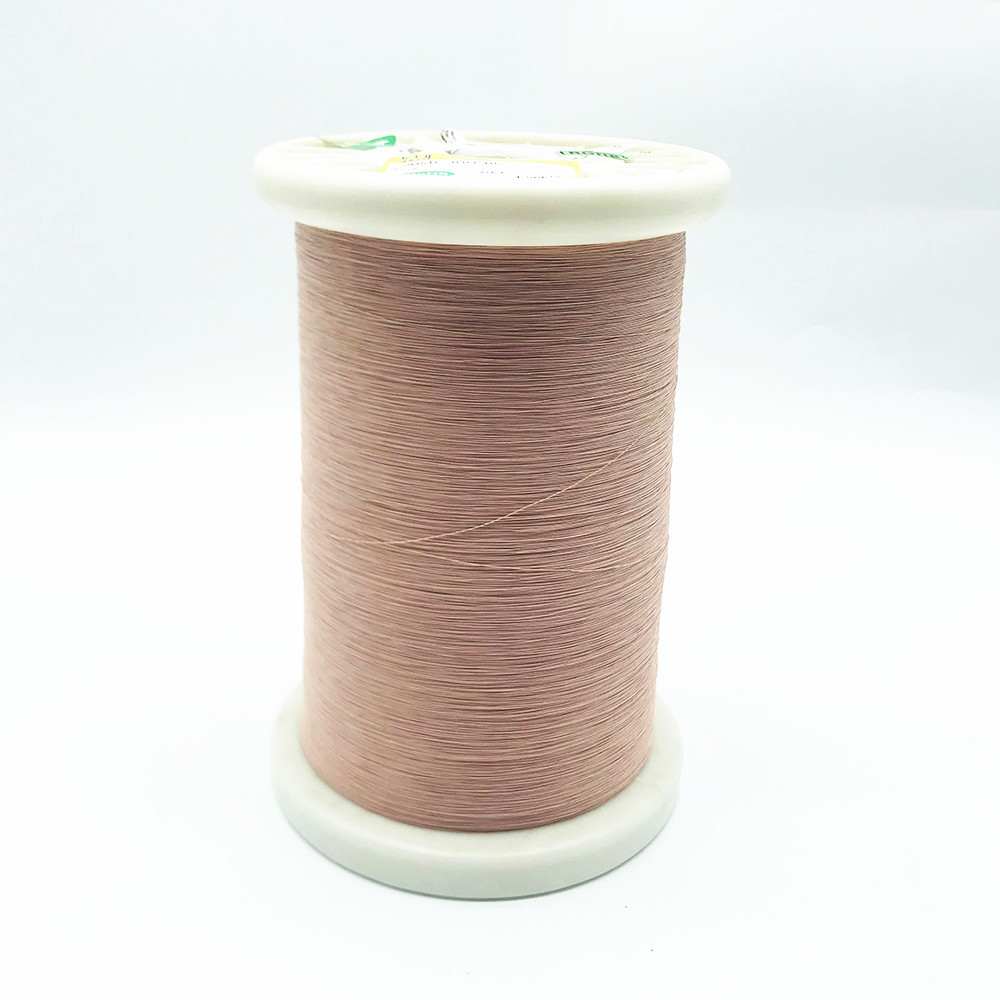

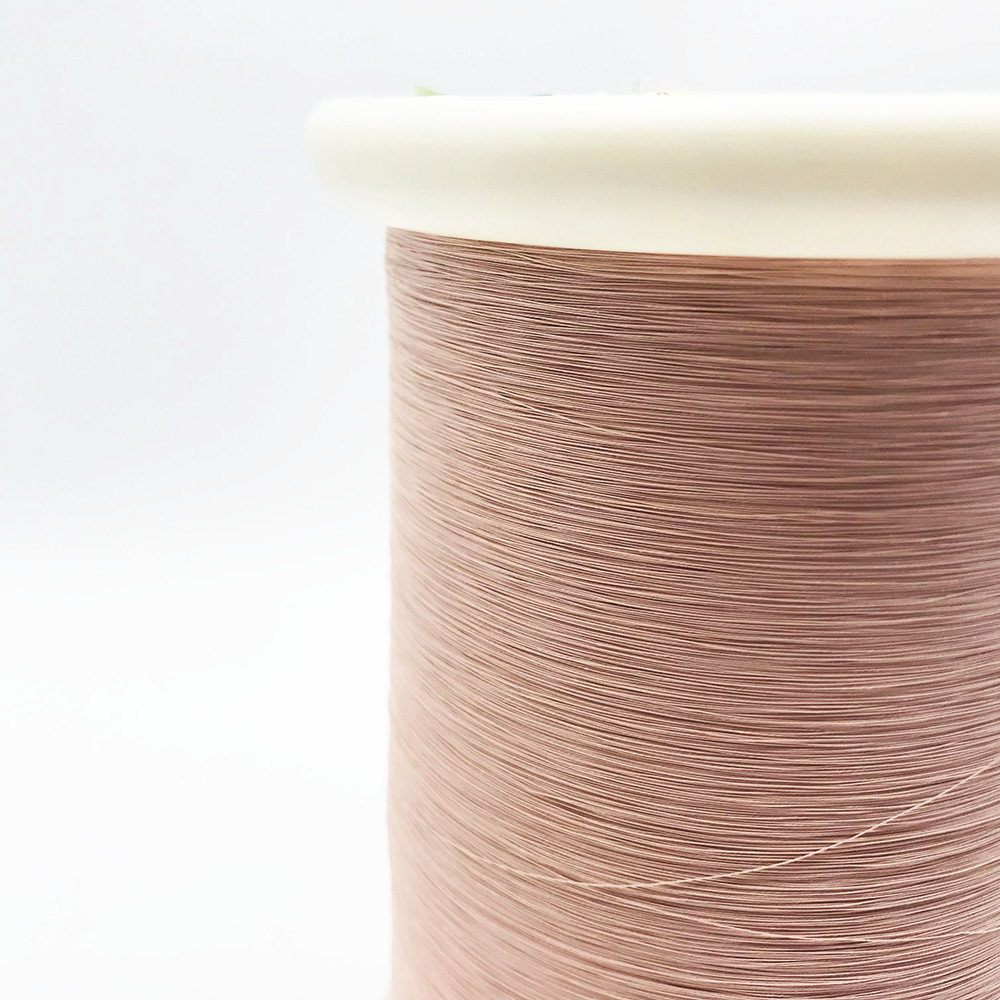

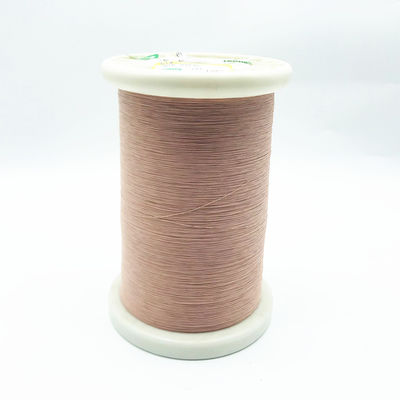

Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz

Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz
Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz
Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz
Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 48AWG/10
Minimum Order Quantity: 30kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation,
Supply Ability: 10Ton/Month
Get Best Price Contact Now
Detail Information
Product Name: Silk Covered Litz Wire Single Wire Diameter: 48AWG/0.03mm
Number Of Strands: 10 Thermal Grade: 155
Breakdown Voltage: Min.400 Jacket: Dacron
Highlight:

48awg copper stranded wire

,

silk covered copper stranded wire

,

litz 10 gauge stranded wire

Product Description

2UEW USTCF 155 48AWG/10 Copper Stranded Wire Dacron Silk Covered Litz Wire



Model: 0.03mm x 10 standsLitz wire employs a stranded wire with individually insulated conductors (forming abundle).
Possibility to customize the produce according to your needs.



Technical requests Test Results Conclusion
Conductor diameter 0.03±0.002 mm 0.028 0.030
Overall size Max.0.21 0.16 0.18
Strands 10 √ √
Twist Pitch 16±2 mm √ √
Breakdown Voltage Min.400V 1700 1900
Conductor Resistance ≤ 2.827Ω/m 2.48 2.49



Ustcf 155 48awg/10 Copper Stranded Wire Dacron Silk Covered Litz 0
