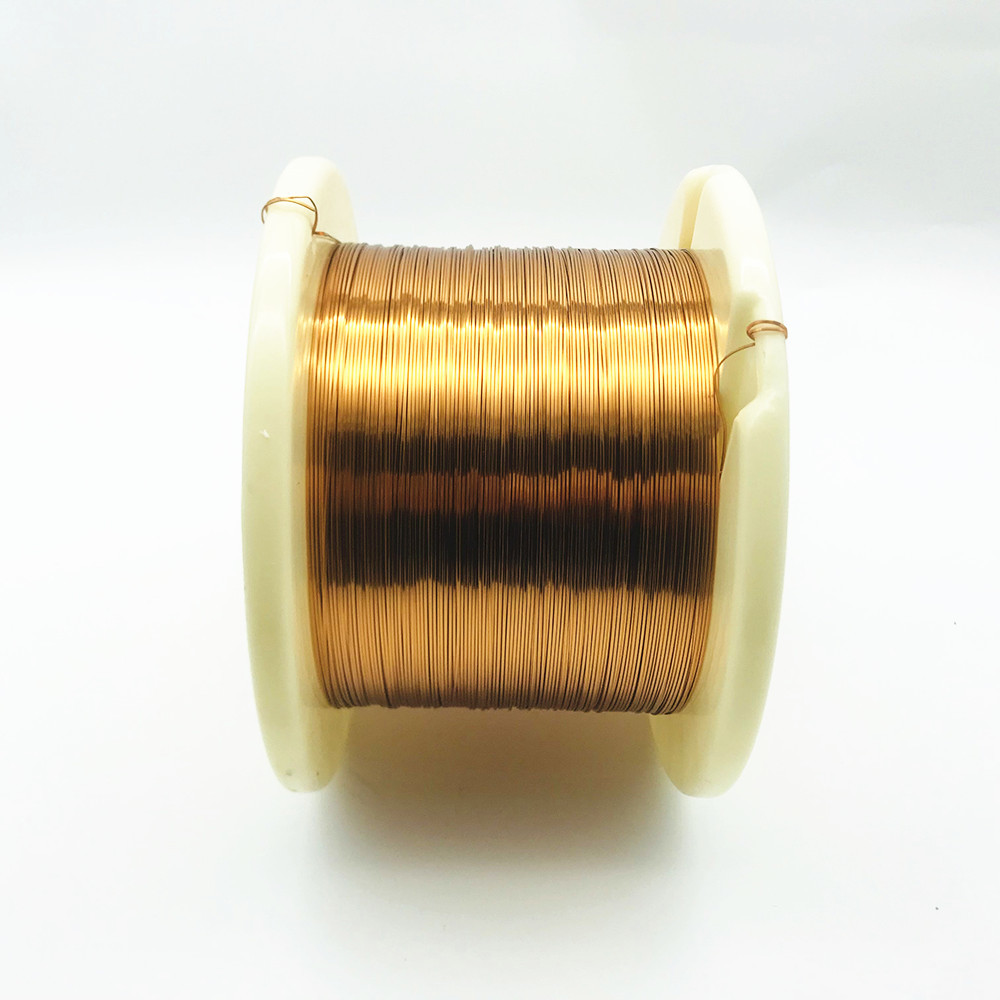

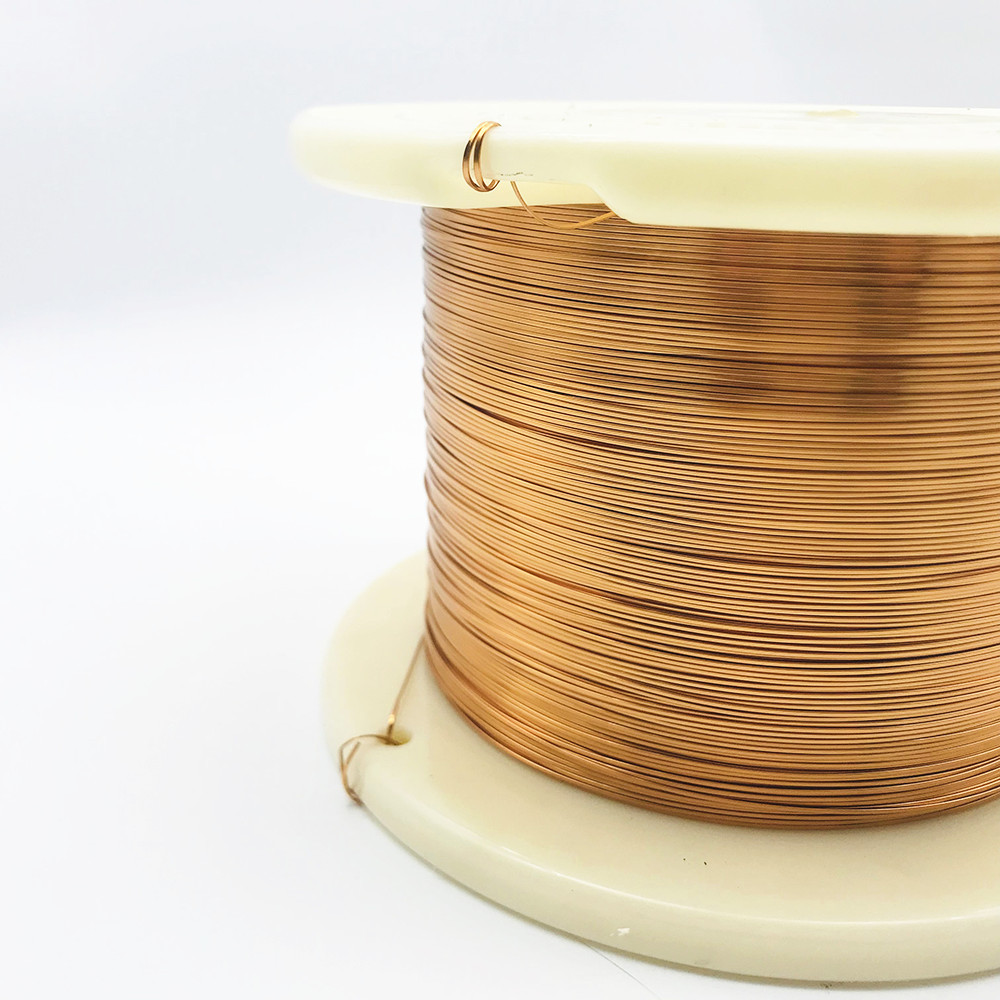

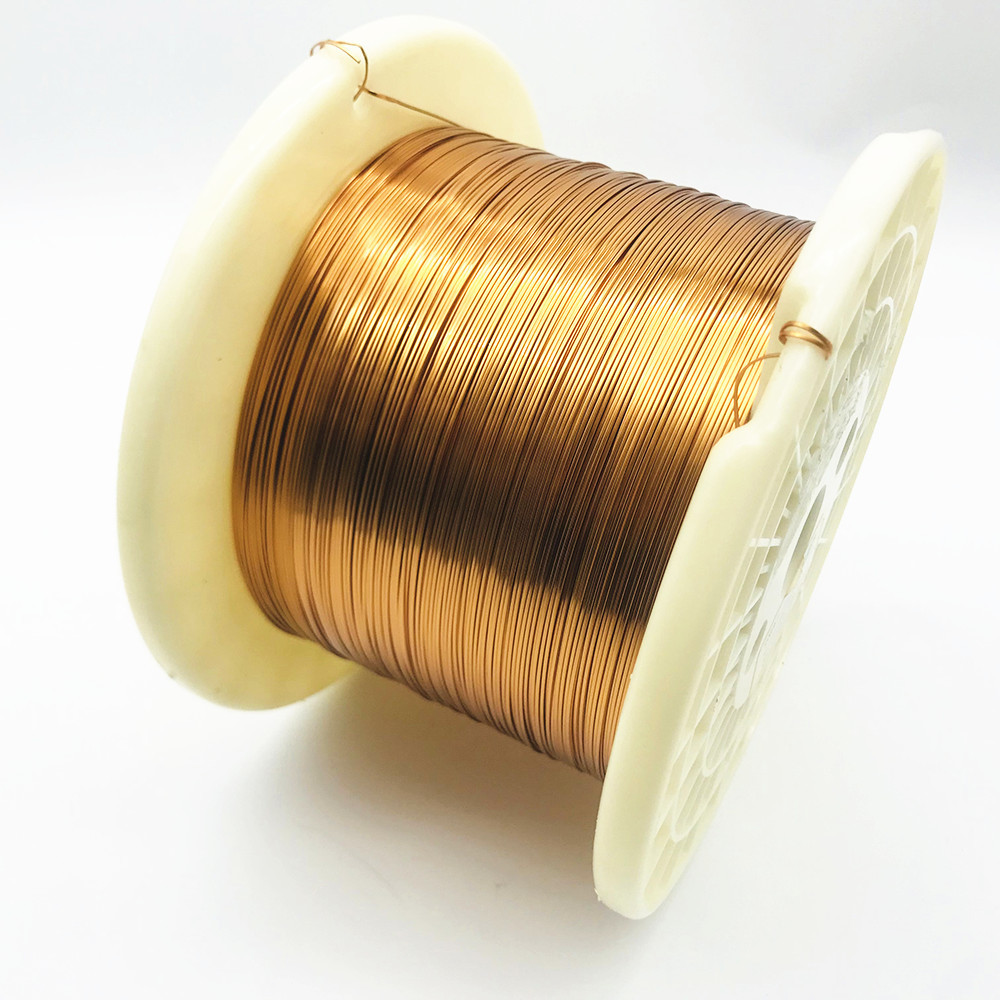

Enameled Flat Magnet Winding Rectangular Copper Wire For Motor

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.0*0.1mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: AIW Width: 2.0mm
Thickness: 1.0mm
High Light:

rectangular copper wire insulated

,

very thin rectangular copper wire

,

ultra thin rectangular copper wire


Product Description

Amide imide 2.0*0.1mm 220 Enameled Rectangular Copper Wire Flat Magnet Winding Wire For Motor

We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.

Characteristics Standard Test Result
Appearance Smooth Equality Smooth Equality
Conductor Diameter Width 2±0.060 1.982
Thickness 1±0.060 0.981
Thickness Insulation Width 0.02 0.055
Thickness 0.03 0.064
Overall Diameter Width 2.1 2.037
Thickness 1.05 1.045
Pinhole ≤3hole/m   0
Elongation ≥30 %   39
Flexibility and Adherence No crack   No crack
Conductor Resistance (Ω/km at 20℃) ≤10.27   9.53
Breakdown Voltage ≥0.7KV   2.3KV
Heat shock No Crack   No Crack
Conclution     Pass
