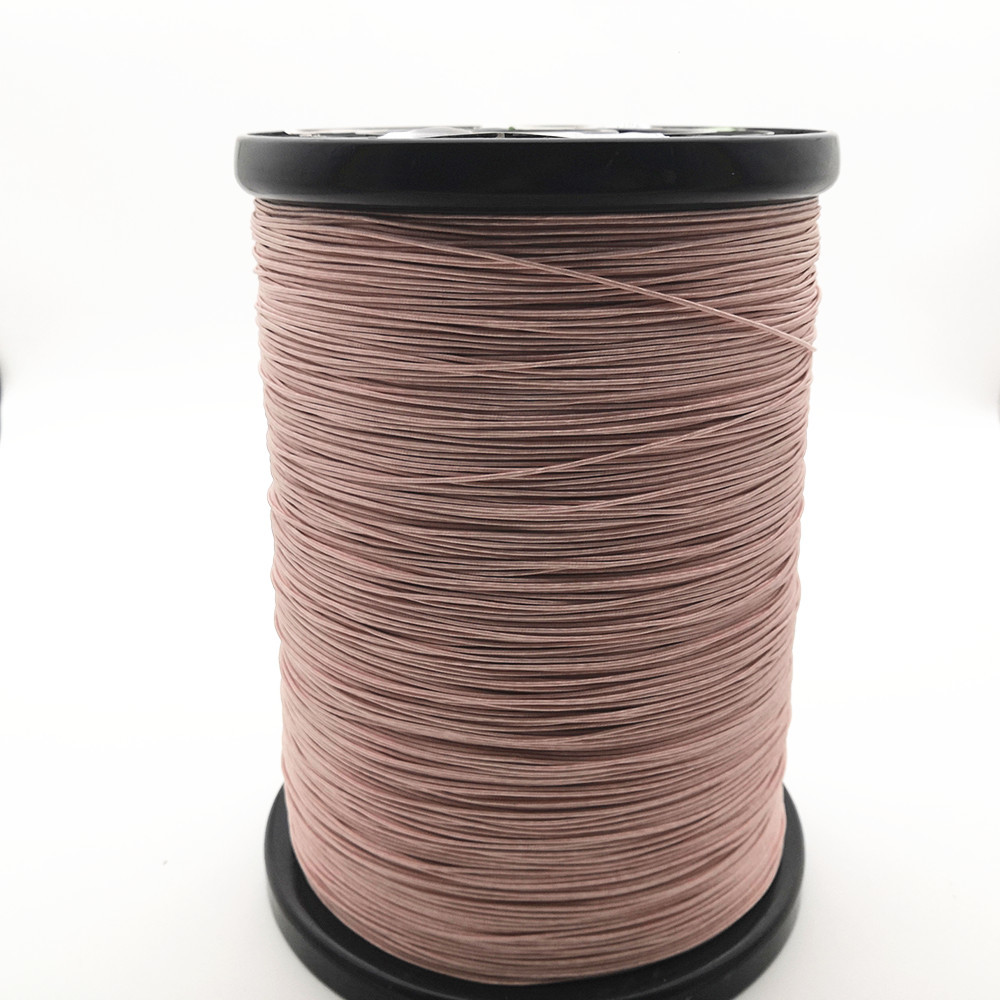

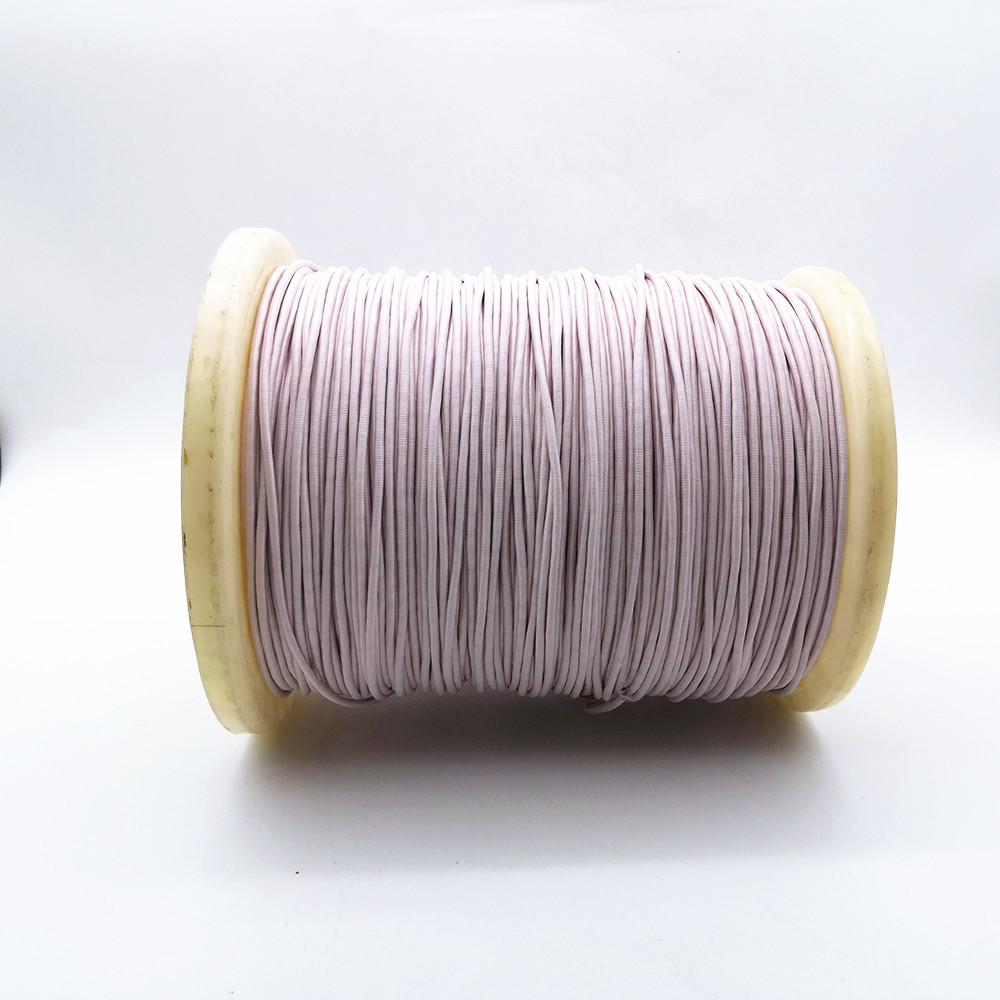

2USTC 0.1mm * 60 Silk Covered Hf Litz Wire Class 155 Enameled Stranded

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm*60
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
Product Name: Silk Covered Litz Wire No. Of Strands: 60
Single Wire Diameter: 0.1mm Voltage: 1500V Min.
Thermal Grade: 155
Highlight:

0.1mm hf litz wire

,

class 155 hf litz wire

,

super enamel litz wire


Product Description

2USTC 0.1mm * 60 Silk Covered Litz Wire Class 155 Enameled Stranded Copper Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.





FEATURES AND BENEFITS

(a) Minimize the power losses due to "skin effect".

(b) Superior "Q" characteristics at high frequencies.

(c) Excellent resistance to abrasion and solvent,
(d) Excellent electricity performance
(e) Excellent heat shock, adherence and flexibility
(f) High cut through



Characteristics
Technical requests
Test Results
Conductor diameter(mm)
0.1±0.007
0.095
Overall conductor diameter(mm)
0.105-0.125
0.106-0.109
No. Of strands
60
Maximum outer diameter(mm)
1.16
0.93-0.98
Pitch(mm)
27±3
Maximum Resistance(Ω/m 20℃)
0.04357
0.0401
Minimum Breakdown Voltage(V)
1100
3200
Solderability
380±5℃, 7s
Pinhole(faults/6m)
Max. 40
6



2USTC 0.1mm * 60 Silk Covered Hf Litz Wire Class 155 Enameled Stranded 0
