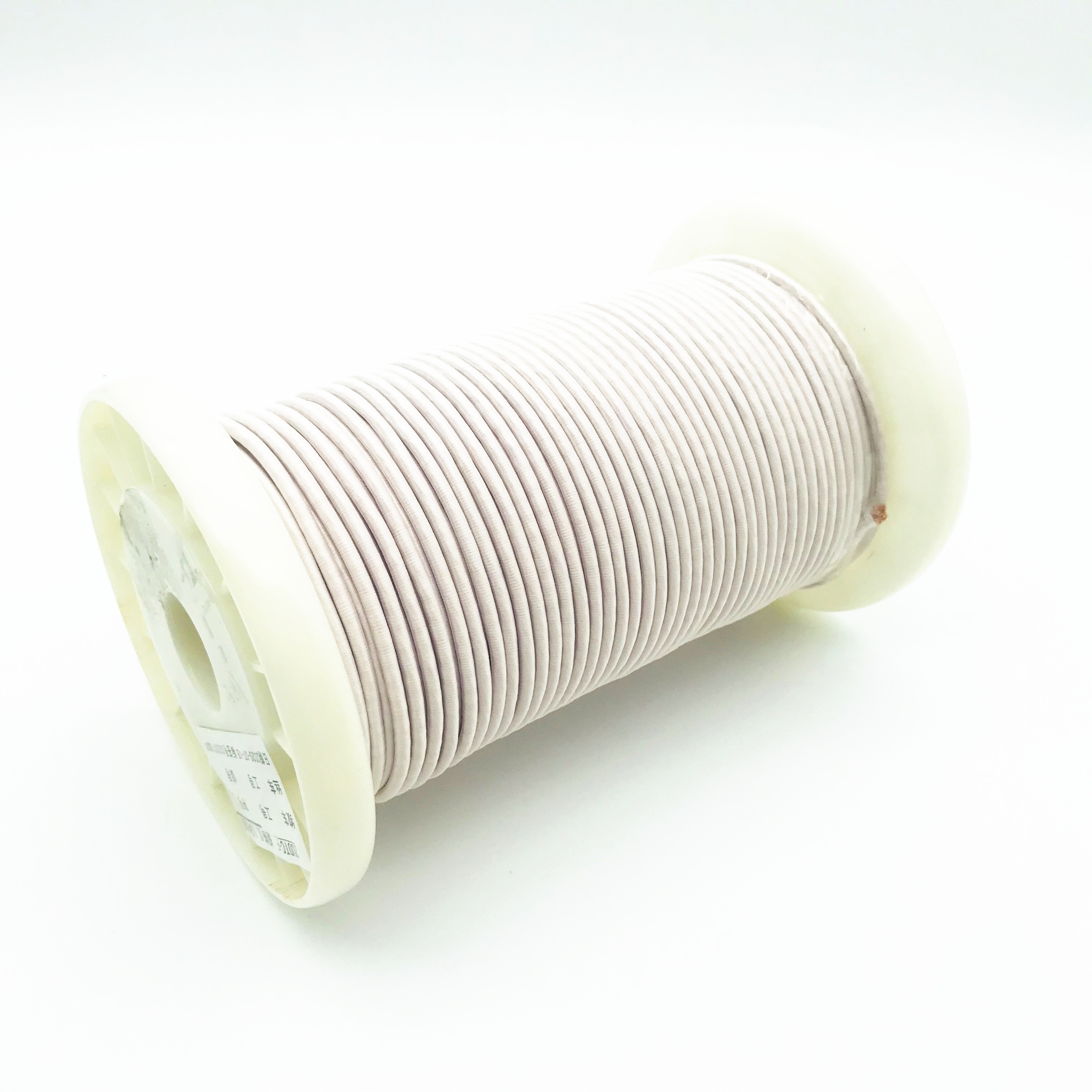

Name: 0.05mm * 660 High Frequency Winding Copper Litz Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

0.05mm * 660 High Frequency Winding Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTC

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	Negotiation

Get Best Price Contact Now

Detail Information

Product Name:	Silk Covered Litz Wire	Conductor Material:	Copper
Cover:	Nylon	Single Wire Diameter:	0.05mm
No. Of Strands:	660	Breakdown Voltage:	2000v
Highlight:	Winding Copper Litz Wire , High Frequency Copper Litz Wire , litz 0.05 mm wire

Product Description

0.05mm * 660 High Frequency Stranded Copper Wire USTC Silk Covered Litz Wire For Winding

Model: 0.05mm x 660 stands

Litz wire employs a stranded wire with individually insulated conductors (forming abundle).

The reason for covering with silk is

because it can improve the winding efficiency, especially at high speed.

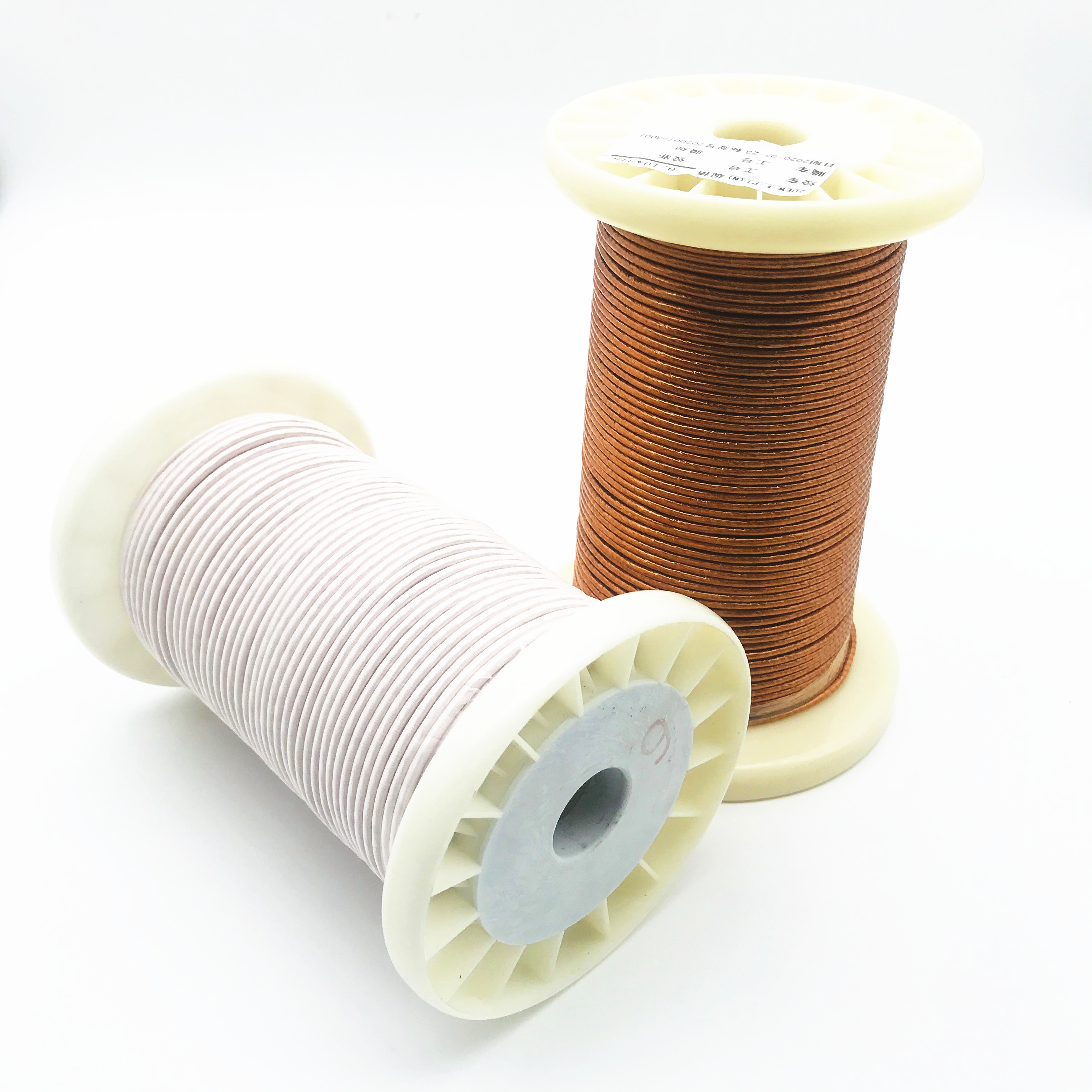

0.05mm * 660 High Frequency Winding Copper Litz Wire 0


			Test report: 0.05mm x 660 strands

			Standard

			1

			2

			Single wire diameter

			0.055-0.069mm

			0.058mm

			0.061mm

			Overall diameter

			Max. 2.41mm

			1.85mm

			1.92mm

			Pitch

			40±3

			√

			√

			Max resistance(Ω/Km at20℃)

			Max. 0.01552

			0.01379

			0.01381

			Mini breakdown voltage

			Min.950

			2300

			2400

			Max pin holes fault/6m

			Max.103

			18

			15

Tag:

0.05mm * 660 High Frequency Winding Copper Litz Wire

Winding Copper Litz Wire

High Frequency Copper Litz Wire

litz 0.05 mm wire

self bonding thin stranded wire,

enameled thin stranded wire,

40 awg thin stranded wire

2USTC-F Super Thin 0.03mm High Frequency Silk Covered Litz Wire

10 X 0.08mm Super Thin Real Silk Covered Silver Litz Wire

2 - 6000 Strands 155 / 180 Ustc Nylon Covered Litz Wire Copper Twisted Silk Covered

Awg38/1500 High Frequency Silk Covered Litz Wire Super Thin Enameled Coated

Taped Silk Covered Copper Litz Wire 0.05 X 1200 X 2mm Enameled Insulated Wire 2400 Strands

HF 0.2mmx300 Litz Wire Served by Nylon Yarns

Custom USTC White Silk Covered Stranded Wire 0.2mm Enameled Copper Litz Wire

High-quality 0.2mmx300 Strands Litz Wire Served with Nylon/Polyester/Natural Silk

Test report: 0.05mm x 660 strands	Standard	1	2
Single wire diameter	0.055-0.069mm	0.058mm	0.061mm
Overall diameter	Max. 2.41mm	1.85mm	1.92mm
Pitch	40±3	√	√
Max resistance(Ω/Km at20℃)	Max. 0.01552	0.01379	0.01381
Mini breakdown voltage	Min.950	2300	2400
Max pin holes fault/6m	Max.103	18	15
