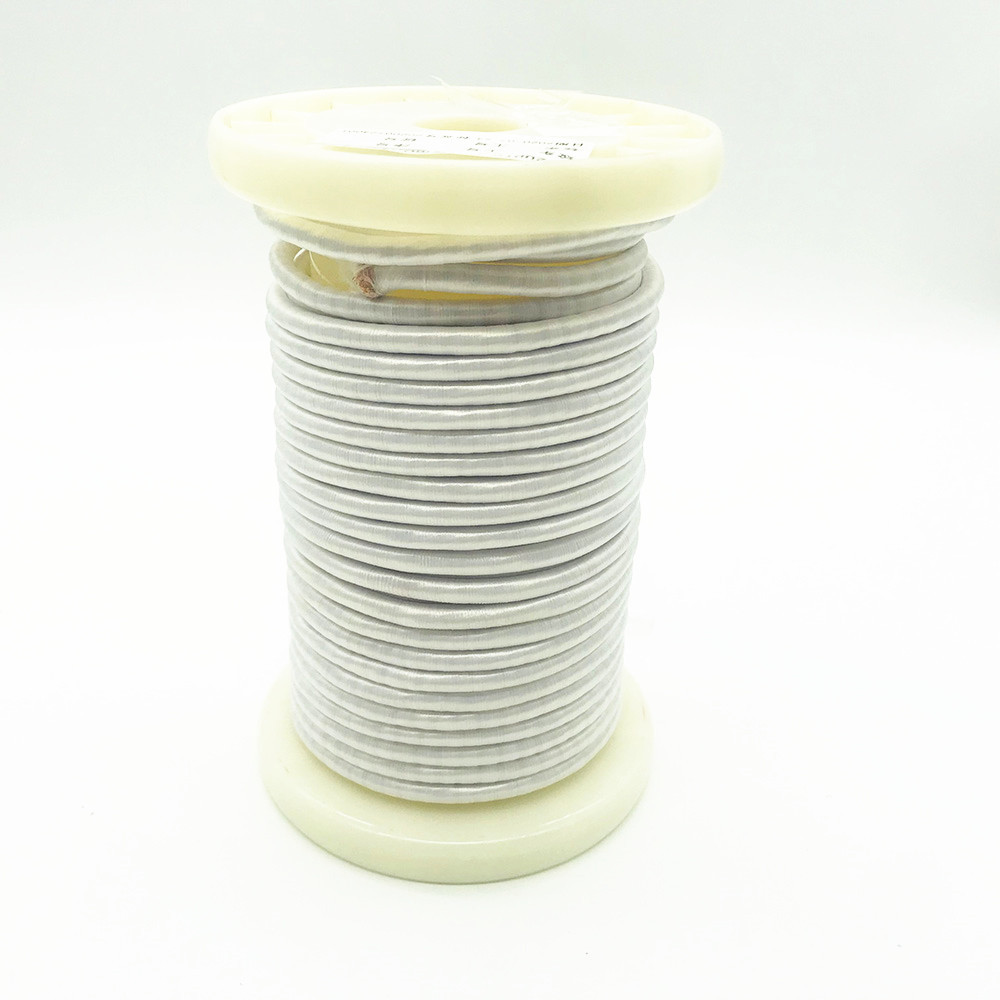

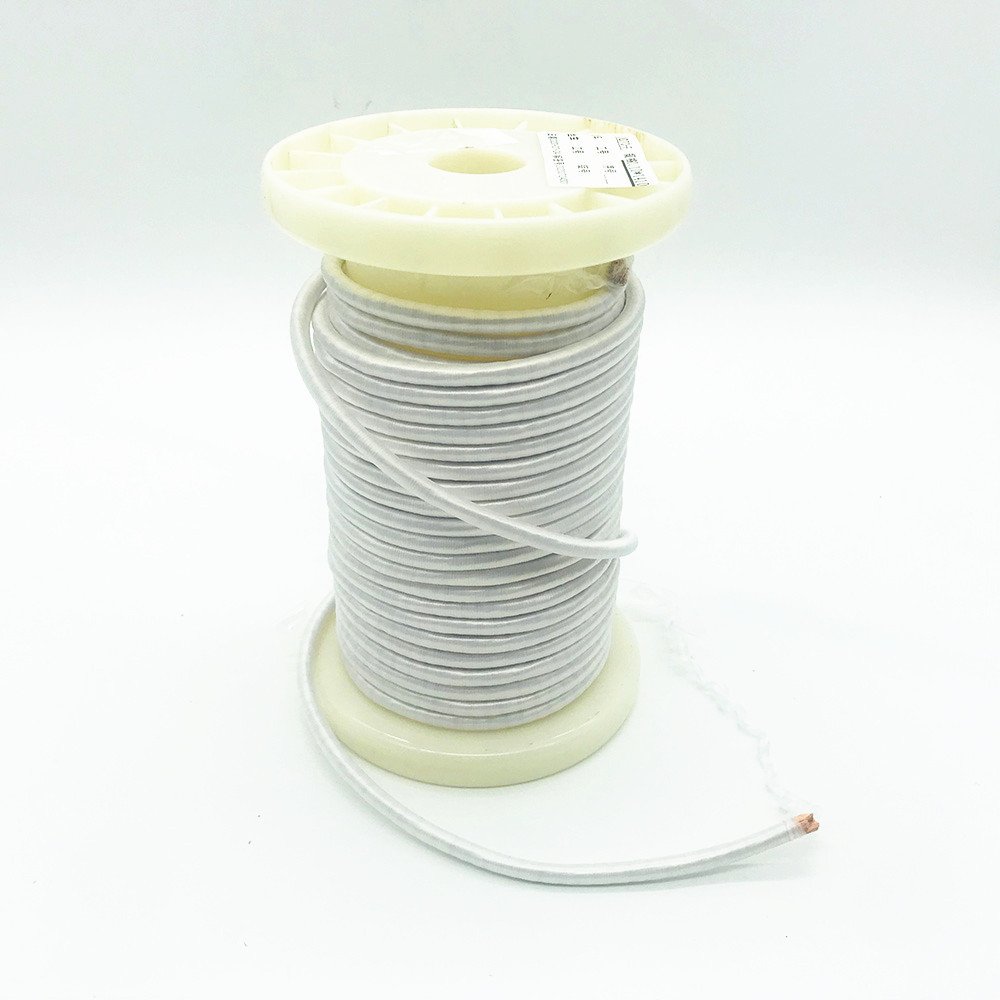

0.08mmx1200 Strands Silk Covered Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.08*1200
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Silk Cover Litz Wire Single Wire Diameter: 0.1mm
Strands: 1200 Voltage: 1500V Min.
Thermal Grade: 180 Port: Tianjin
Highlight:

Silk Covered copper litz wire

,

0.08mm copper litz wire

,

1200 Strands copper litz wire


Product Description

0.08mm x 1200 Strands Silk Covered Litz Wire High Frequency Twisted Copper Wire

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.

0.08mmx1200 Strands Silk Covered Copper Litz Wire 0
