Copper 1.2mm X 0.12mm Flat Enameled Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: UEW
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Conductor Material: Copper Conductor Type: Solid
Width: 1.2mm Thickness: 0.12mm
Thermal Class: 180 Insulation: UEW
High Light:

soft copper wire

,

enameled copper magnet wire


Product Description

CLASS 180 UEW 1.2MM*0.12MM RECTANGULAR MAGNET COPPER WIRE FLAT ENAMELED WINDING WIRE

Meet design requirement of lower height, smaller size, lighter and more power.The wire is widely used in electronice, military electronic, spaceflight.

Bigger surface area than round wire at the same cross section, reducce skin effect effectively, decrease current loss, that/s better to adpat high frequency transduction.

High space factor and fill in ratio, greatly reduce resistance, pass bigger current, get higher Q value that is better to adapt high current load.

The product that use rectangular wire has such features: simple in structures, good heat dissipation ,stable performance, stablegood consistency. Maintain stable temperature rise current and saturation current in high frequency and high temperature environment anti EMI, small vibration, low noise and install in high density.

APPLICATIONS

1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine appication

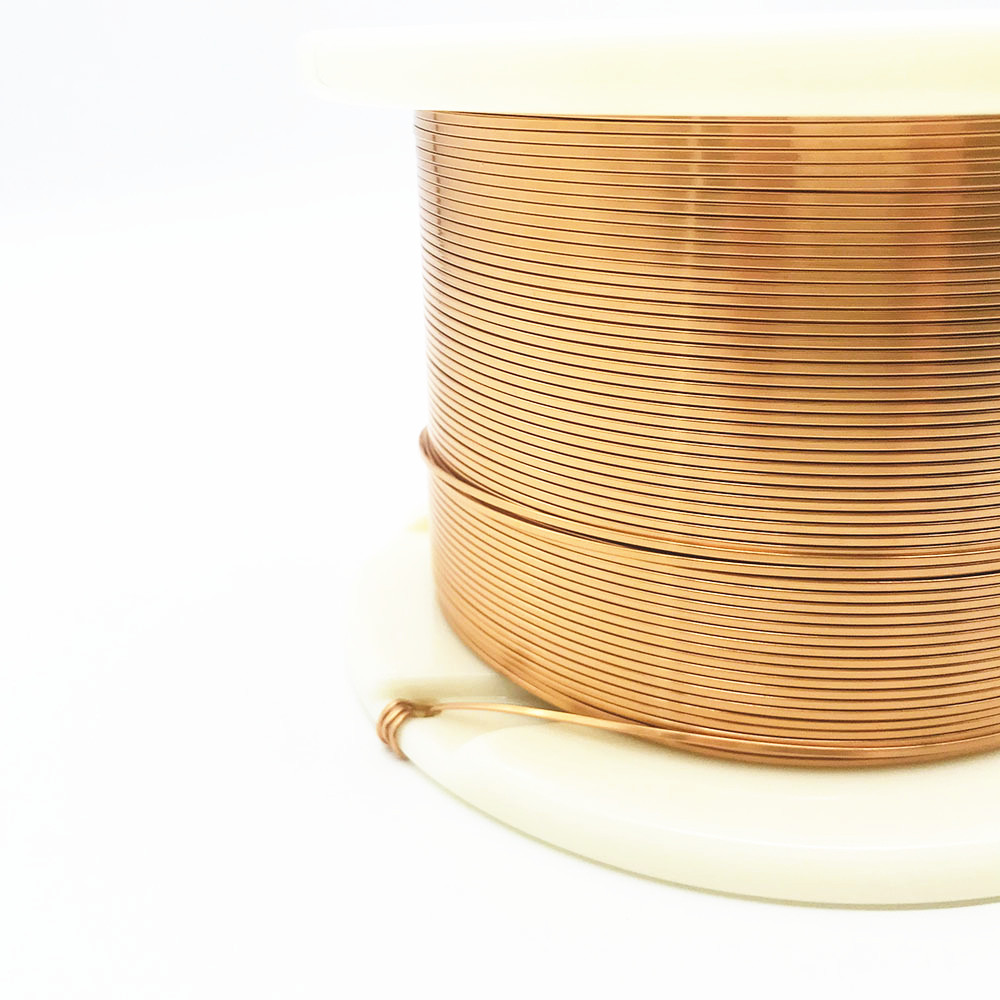

Copper 1.2mm X 0.12mm Flat Enameled Winding Wire 0

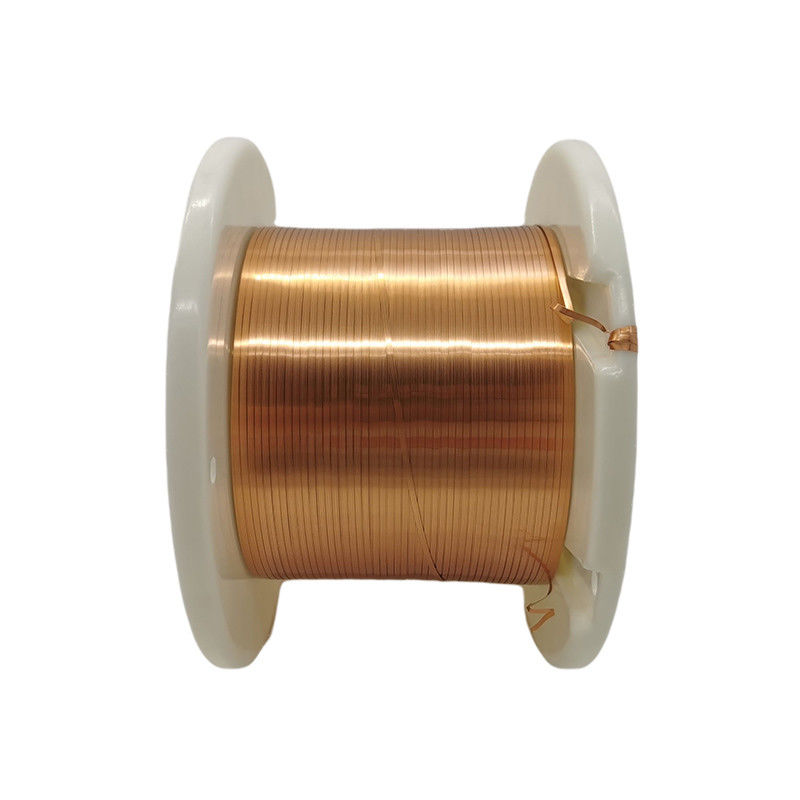

Copper 1.2mm X 0.12mm Flat Enameled Winding Wire 1

Copper 1.2mm X 0.12mm Flat Enameled Winding Wire 2

Type:SFT-HB/UEW J180

Size:1.20*0.12mm

Characteristics

Standard

Test Result

Appearance

Smooth Equality

Smooth Equality

Conductor Diameter

Width

1.2

±0.060

1.232

Thickness

0.12

±0.009

0.12

Thickness of Coating layer

Width

≥0.010

0.024

Thickness

≥0.010

0.036

Thickness of Bonding layer

Width

≥0.005

0.016

Thickness

≥0.005

0.012

Overall Diameter

(Including bonding layer)


Width

≤1.300

1.272

Thickness

≤0.170

0.168

Pinhole

≤3hole/m

0

Elongation

≥30 %

40%

Flexibility and Adherence

No crack

No crack

Conductor Resistance

(Ω/km at 20℃)

≤139.16

121.3

Breakdown Voltage

≥0.7KV

1.2KV

Heat shock

No Crack

No Crack

Bond Strengh(g)

>160

250

Conclution



Pass
