Rectangular Copper Enamelled Winding Wire EIW Insulation With Solid Conductor

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: EIW
Minimum Order Quantity: 20 Kilogram/Kilograms
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Material: Copper Size: 1.6mm*0.8mm
Insulation: EIW Thermal Class: 180
Conductor Type: Solid Shape: Rectangular
Package: Carton Port: Tianjin
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

1.6mm*0.8mm EIW 180 DEGREE RECTANGULAR ENAMELED COPPER WIRE FLAT MAGNET WIRE FOR WINDING

Meet design requirement of lower height, smaller size, lighter and more power. The wire is widely used in electronics, electric application, motor, network communication, smart bome, new energy, autotmobile electronic, medical electronic, military electronic, spaceflight.

Bigger surface area than round wire at the same cross section, reduce skin effect effectively, decrease current loss, that's better to adapt high frequency transduction.

High space factor and fill in ratio, greatly reduce resistance, pass bigger current, get higher Q value that is better to adapt high current load.

the product that use rectangular wire has such features: simple in structures, good heat dissipation, stable performance, stablegood consistency. Maintain stable temperature rise current and saturation current in high frequency and high temperature environment anti EMI, small vibration, low noise and install in high density.

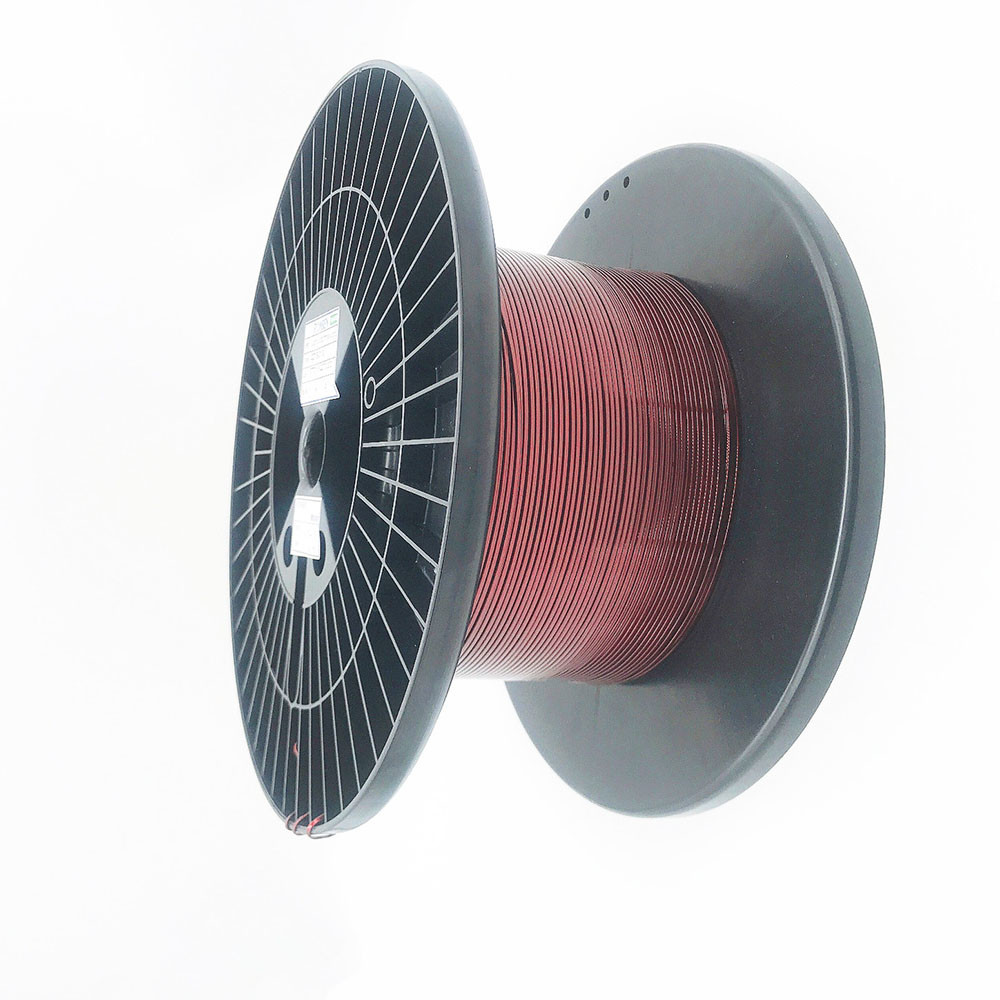

Rectangular Copper Enamelled Winding Wire EIW Insulation With Solid Conductor 0



Rectangular Copper Enamelled Winding Wire EIW Insulation With Solid Conductor 1



Insulation Thermal Class Solder ability Self-bonding Size Range
Width(mm) Thickness(mm) Ratio
AIWJ 220 x x 0.155--7.5 0.02-1.8 1.25
EI/AIWJ 220 x x 0.155--7.5 0.02-1.8 1.25
EI/AIWJ 200 x x 0.155--7.5 0.02-1.8 1.25
UEWJ 180 0 x 0.155--7.5 0.02-1.8 1.25
EIWJ 180 x x 0.155--7.5 0.02-1.8 1.25
SEIWJ 180 0 x 0.155--7.5 0.02-1.8 1.25
UEWJ 155 0 x 0.155--7.5 0.02-1.8 1.25
UEWJ 130 0 x 0.155--7.5 0.02-1.8 1.25
EI/SBWJ 180 x 0 0.155--7.5 0.02-1.8 1.25
SEI/SBWJ 180 0 0 0.155--7.5 0.02-1.8 1.25
EI/AI/SBWJ 220 x 0 0.155--7.5 0.02-1.8 1.25
AI/SBWJ 220 x 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 180 0 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 155 0 0 0.155--7.5 0.02-1.8 1.25
UE/SBWJ 130 0 0 0.155--7.5 0.02-1.8      1.25
