High Frequency Litz Wre Class 130 - 240 0.08Mm * 24 Strands Fine Stranded Silk Covered Ustc Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 0.08*24
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Type:: 0.08mm*24 Conductor Material: Copper
Feature: Silk Covered Conductor Type: Solid
Insulation Material: Enameled Solderability: Yes
High Light:

served litz wire

,

rectangular litz wire


Product Description

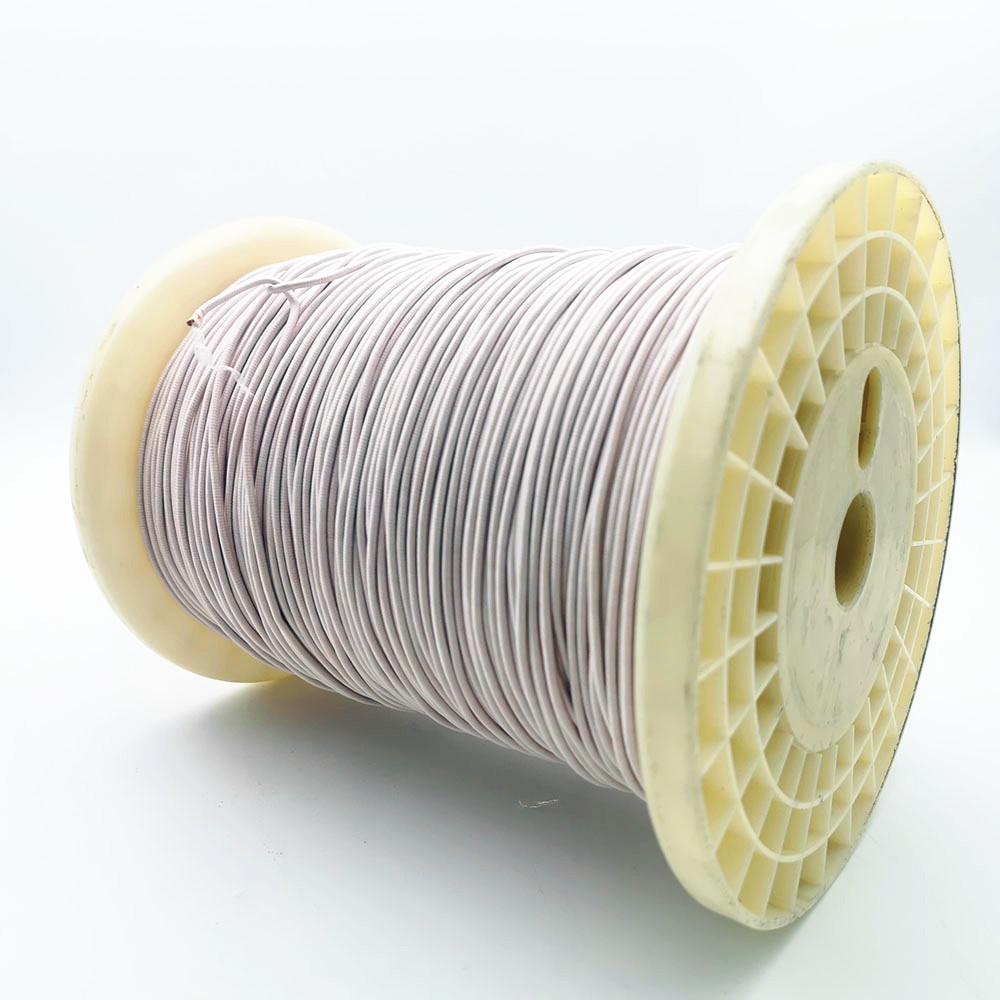

CLASS 130 - 240 0.08 MM * 24 STRANDS HIGH FREQUENCY LITZ WRE FINE STRANDED SILK COVERED USTC WIRE

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss.The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a singlelarge wire, and still have skin effectproblems.Furthermore, the strands cannot occupy the same radial position in the bundleover long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivityof the bundle.





Conductor diameter*Strand number

2UDHTC-F

0.08*24











Single wire



Conductor diameter(mm)

0.080

Conductor diameter tolerance (mm)

±0.003

Minimal insulation thickness(mm)

0.005

Maximal overall diameter (mm)

0.103

Thermal Class

155





Strand Composition



Strand number

24

Pitch(mm)

20±3

Stranding direction

S













Insulation layer



Category

Nylon

UL

/



Material specs(mm*mm or D)

250+300

Times of Wrapping

2

Overlap(%) or thickness(mm),min

0.05

Wrapping direction

S









Characteristics



Max O. D(mm)

0.66

Max pin holes 个/6m

30

Max resistance (Ω/Km at20℃)

157.3

Mini breakdown voltage (≧V )

1100



Certificate

E229341

Remark:

Conclusion:

Approved
