| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Model Number: | 0.3*3.0mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Temperature: | 180C | Width-Thickness Ratio: | 1：10 |
|---|---|---|---|
| Delivery Time: | 2-5days | Conductor Thickness: | 0.3mm |
| Conductor Width: | 3.0mm | Insulation: | Polyurethane |
| Self Solderable: | Yes | ||
| Highlight: | square magnet wire,high voltage copper wire |
||

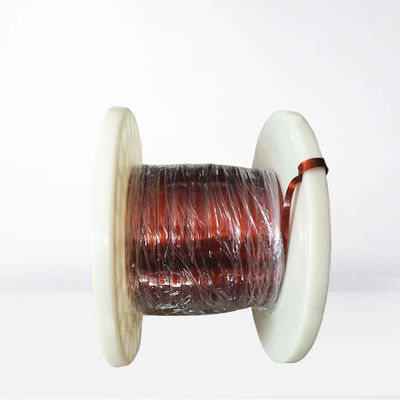

CLASS 180 POLYURETHANE COATED WIRE/0.3*3.0MM FLAT COPPER WIRE
We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
SPECIFICATION
| Item | Characteristics | Standard | Test Result | ||
| 1 | Appearance | Smooth Equality | Smooth Equality | ||
| 2 | Conductor Diameter | Width | 3 | ±0.006 | 2.97 |
| Thickness | 0.3 | ±0.009 | 0.291 | ||
| 3 | Thickness Insulation | Width | ≥0.020 | 0.081 | |
| Thickness | ≥0.030 | 0.056 | |||
| 4 | Overall Diameter | Width | ≤3.10 | 3.051 | |
| Thickness | ≤0.35 | 0.347 | |||
| 5 | Pinhole | ≤3hole/m | 0 | ||
| 6 | Elongation | ≥30 % | 42% | ||
| 7 | Flexibility and Adherence | No crack | No crack | ||
| 8 | Conductor Resistance (Ω/km at 20℃) | ≤21 | 19.73 | ||
| 9 | Breakdown Voltage | ≥0.7KV | 1.9KV | ||
| 10 | Heat shock | No Crack | No Crack | ||
| Conclution | Pass | ||||
