| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | UEW/EIW/AIW |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Rectangular Enamelled Copper Wire | Width-Thickness Ratio: | 1:4 |
|---|---|---|---|
| Delivery Time: | 2-15 Days | Conductor Thickness: | 0.35mm |
| Conductor Width: | 1.5mm | Equivalent Round Wire Diameter: | 0.12~3.2mm |
| Certification: | IEC/NEMA/JIS/RoHS/ISO/UL | Conductor: | Copper |
| Self Bonding: | Option | ||
| Highlight: | rectangular magnet wire,square magnet wire |
||

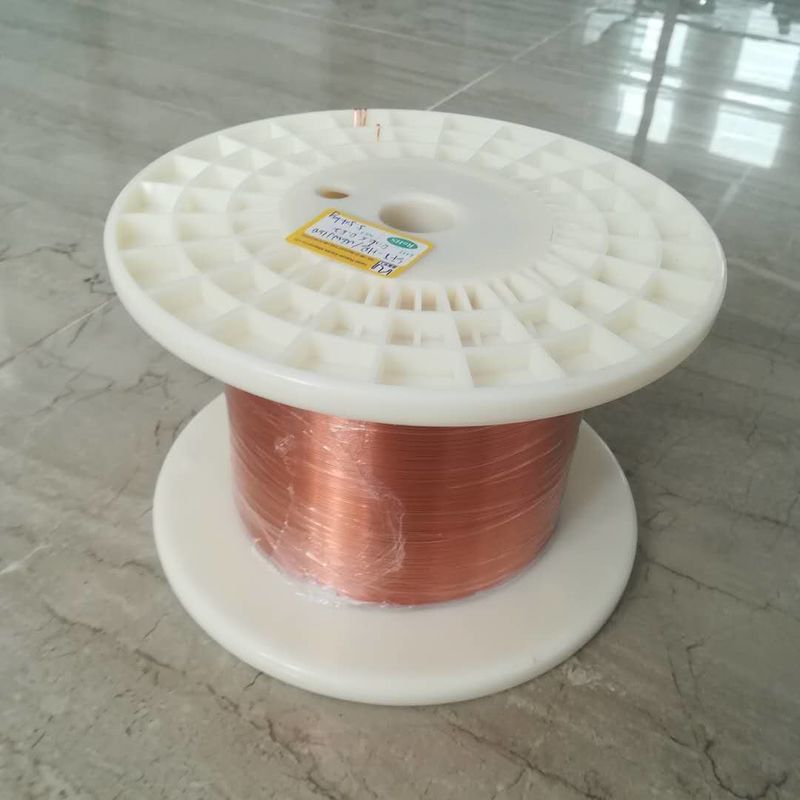

0.35 * 1.5MM CLASS 155 180 220 RECTANGULAR ENAMELED COPPER WIRE FLAT MAGNET WIRE FOR TRANSFORMER
Rectuangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Today most popular Notebook computers, wireless charger...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled copper wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Copper Wire" for the market.
| Appearance | Smooth Equality | Smooth Equality | ||
| Conductor Diameter | Width | 0.35 | ±0.003 | 0.345-0.355 |
| Thickness | 1.50 | ±0.005 | 1.470-1.530 | |
| Thickness Insulation | Width | - | ||
| Thickness | - | |||
| Overall Diameter | Width | 1.500-1.560 | ||
| Thickness | 0.230-0.245 | |||
| Pinhole | ≤3hole/m | 0 | ||
| Elongation | ≥30 % | 42% | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | ≤35.80 | 33.41-35.80 | ||
| Breakdown Voltage | ≥0.7KV | 1.9KV | ||
| Heat shock | No Crack | No Crack | ||
