Product Name: | Superfine Rectangular Square Copper Wire | Standard: | JIS/NEMA/IEC |
---|---|---|---|
Thermal Rating: | 130-220 | Color: | Gold/Red/Pink |
Number Of Conductors: | Single Core | Application: | Transformer |
Insulation Material: | UEW/PEW/EIW/AIW | Certification: | RoHS/UL/ISO |
Highlight: | square magnet wire,high voltage copper wire |

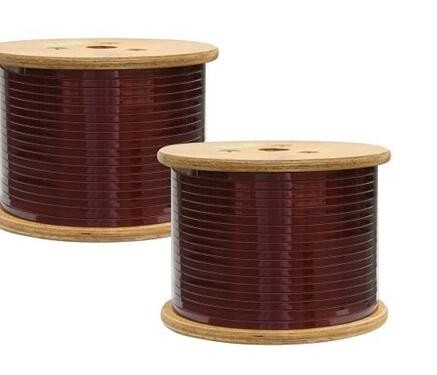

Rectangular Enameled Copper Wire For High Frequency Transformers
Customer has requested that to be more efficient in using space, high electricity and density in the developing stage of the high spec and quality coil. We, Unimac Japan have developed this product successfully by using the above the requirements. The property of our flat magnet wire outweigh the round wire which is from 0.07mm to 1.7mm in a cross section, and the flat wire's conductor was insulated accordingly. It will give you a wide-ranged of possibility on your products. In addition, it will contribute to the minimization of volume, weight reduction and enhance the electrical efficiency on our product.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
APPLICATIONS
1. SMD coils: TV,PC ECU
2. Small SMD coil:
3. Transfomer:HID hed-lamp
|
SFTtype |
Ref. General flat wire |
|
Fine flat wire |
Ultra-fine flat wire |
||
Equivalent diameter round wire (mm) |
0.31~1.7 |
0.07~0.3 |
1.8~8.0 |
ratio conductor |
1:1.5~1:20 |
1:1.5~1:10 |
1:2.0~1:10 |
Minimum conductor thickness (mm) |
0.08 |
0.02 |
0.08 |
standard coating thickness (mm) |
0.020 |
0.005 |
0.050 |
Insulation resin |
Modified-polyester Polyamide-imide |
Modified-polyester Polyamide-imide |
Folmal/Polyester/Polyamide-imide |
etc. |
etc. |
||
Selfbonding-wire |
yes |
yes |
yes |
