Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 |
Model Number: | 0.4*0.9 |
Minimum Order Quantity: | Different types with differet MOQ |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Product Name: | 0.4*0.9 Rectangular Copper Wire | Thickness: | 0.4mm |
---|---|---|---|
Width: | 0.9mm | Certificate: | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 |
Width To Thickess Ratio: | 2:25 | Color: | Nature |
Insulation: | AIW/Polymide | Thermal Class: | 220 |
Conductor: | High Purity Copper | Standard: | JIS/IEC/NEMA |
Highlight: | rectangular magnet wire,square magnet wire |

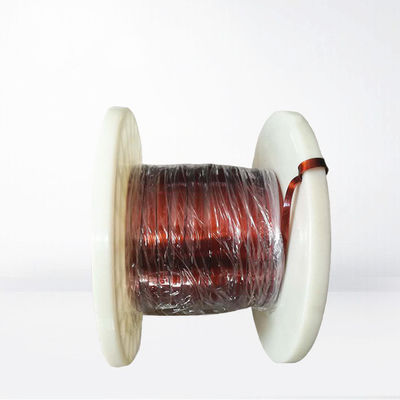

POLYIMIDE 0.4x0.9MM CLASS 220 RECTANGULAR MAGNET COPPER WIRE ENAMELED WIRE ROHS APPROVAL
Enameled Rectangular Wire is coated by the various enamel films on the bare conductor in accordance with customer’s specification. This important wire is used for winding coils for DC motors, transformers, generators, welding machines and other applications.Our range starts from 0.02mm to 1.5mm.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
FEATURES AND BENEFITS
High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.
The coil made from rectangular wire has better cooling efficiency.
Rectangular wire can be wound with different mode.
The coil can be better shape, flat and smooth.
