| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO/UL |
| Model Number: | 0.5*1.0mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | 0.5* 1.0mm Copper Rectangular Wire | Thickness: | 0.5mm |
|---|---|---|---|
| Width: | 1.0mm | Color: | Nature |
| Insulation: | UEW/Polyurethane | Thermal Class: | 180 |
| Conductor: | High Purity Copper | Certification: | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 |
| Standard: | JIS/IEC/NEMA | ||
| High Light: | square magnet wire,high voltage copper wire |
||

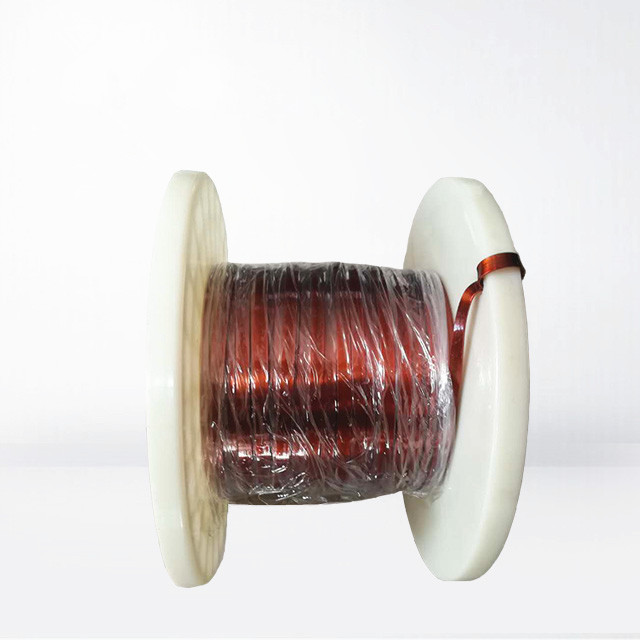

0.5×1.0MM RECTANGULAR COPPER WIRE SELF BONDING ENAMELED COPPER WINDING WIRE
In the electrical industry, rectangular wires with defined corner radii are used in motors, generators and transformers.In comparison with round wires, rectangular wires have the advantage of allowing more compact windings, thereby delivering both space and weight savings. The electrical efficiency is also better, which saves energy.
Especially when the wires are meant to be insulated with enamel, the precision of width and thickness as well as the geometry of the corner radius is of great importance for the defect-free use in electrical coils.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
|
Item |
Characteristics |
Standard |
Test Result |
||
|
1 |
Appearance |
Smooth Equality |
Smooth Equality |
||
|
2 |
Conductor Diameter |
Width |
1 |
±0.060 |
0.975 |
|
Thickness |
0.5 |
±0.009 |
0.498 |
||
|
3 |
Thickness of Insulation |
Width |
0.01 |
0.058 |
|
|
Thickness |
0.01 |
0.039 |
|||
|
4 |
Overall Diameter |
Width |
5.1 |
5.071 |
|
|
Thickness |
0.55 |
0.548 |
|||
|
5 |
Pinhole |
Max ≤3hole/m |
0 |
||
|
6 |
Elongation |
Min ≥30 % |
41% |
||
|
7 |
Flexibility and Adherence |
No crack |
No crack |
||
|
8 |
Conductor Resistance (Ω/km at 20℃) |
Max 7.41 |
7.03 |
||
|
9 |
Breakdown Voltage |
Min 0.70kv |
2.1 |
||
|
10 |
Heat shock |
No Crack |
No Crack |
||
|
|
Conclusion |
|
Pass |
||
FEATURES AND BENEFITS
