Class 220 0.45×7.5mm Polyimide Coated Flat Copper Wire Enameled Self Bonding Magnet Wire For Notebook Coil

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO/UL
Model Number: 0.45*7.5mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: 0.45*7.5 AIW Flat Copper Wire Temperature: 220C
Width-Thickness Ratio: 1:16 Certificate: IEC/NEMA/JIS/RoHS/ISO/UL
Conductor Thickness: 0.45mm Conductor Width: 7.5mm
Insulation: Polyurethane Self Solderable: Yes
High Light:

rectangular magnet wire

,

square magnet wire


Product Description

CLASS 220 0.45×7.5MM POLYIMIDE COATED FLAT COPPER WIRE ENAMELED SELF BONDING MAGNET WIRE FOR NOTEBOOK COIL

Rectuangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Today most popular Notebook computers, wireless charger...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled copper wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Copper Wire" for the market.

APPLICATION

  • Notebook coil.
  • Coils of printer.
  • Motors of CD driver.
  • Transformer.
  • Wireless charger

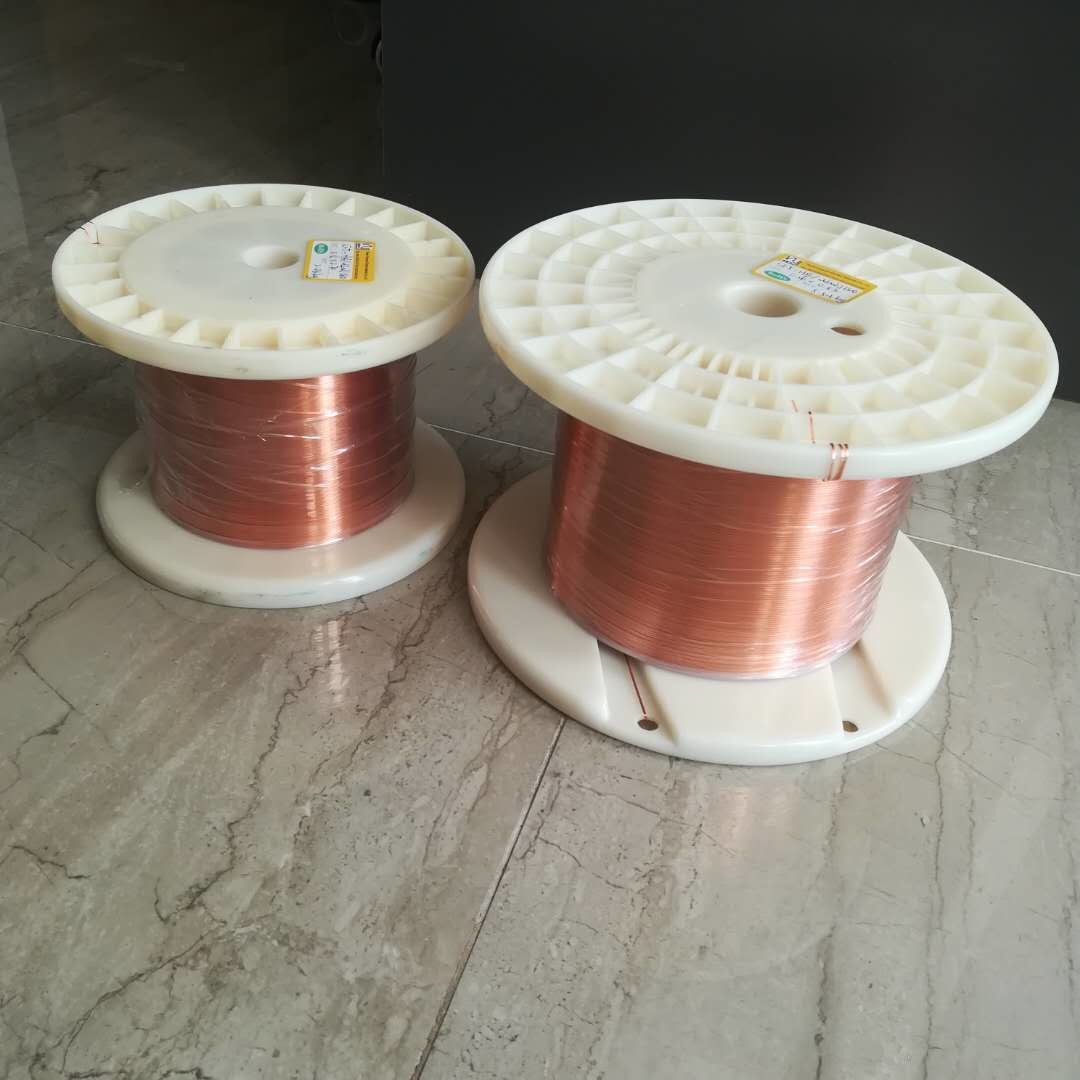

Class 220 0.45×7.5mm Polyimide Coated Flat Copper Wire Enameled Self Bonding Magnet Wire For Notebook Coil 0

Item

Characteristics

Standard

Test Result

1

Apperance

Smooth Equality

Smooth Equality

2

Conductor Diameter

Width

7.5

±0.080

7.485

Thickness

0.45

±0.009

0.45

3

Thickness of Coating layer

Width

≥0.010

0.024

Thickness

≥0.010

0.026

4

Max.Overall Diameter

Width

7.66

0.501

Thickness

0.529

7.533

5

Pinhole

≤3hole/m

0

6

Elongation

≥30 %

40.10%

7

Flexibility and Adherence

No crack

No crack

8

Conductor Resistance (Ω/km at 20℃)

≤5.337

5.132

9

Breakdown Voltage

≥0.7KV

2.41KV

10

Heat shock

No Crack

No Crack



Conclusion



Pass
