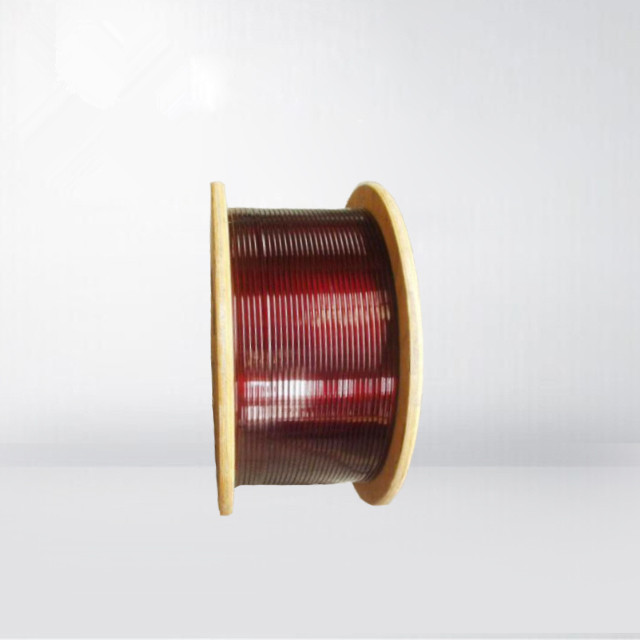

Class 220 1.0 X 2.0mm Enameled Copper Winding Wire Rectangular Enameled Wire With Good Mechanical Strength

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001/UL/SGS
Model Number: 1.0x2.0mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: 0.02mm Enameled Copper Wire Thickness: 1.0mm
Width: 2.0mm Width To Thickess Ratio: 1:2
Color: Nature/Black Insulation: AIW
Thermal Class: 220C Certification: ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Material: Copper Standard: JIS/IEC/NEMA
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

CLASS 220 1.0 X 2.0MM ENAMELED COPPER WINDING WIRE RECTANGULAR ENAMELED WIRE WITH GOOD MECHANICAL STRENGTH

AIW coated class 220 rectangular enameled copper wire provide you high heat resistant and high quality,that is widely used in auto motor, solar energy.

BENEFITS

Different types of enamel with very good mechanical strength and bonding properties
Very consistent quality and dimension tolerances in line with industry standards
Wide range of dimensions, yarns and insulation builds available
Very thin grades for wind turbine generators
Improved mechanical strength, high-performance yarns and impregnation varnishes
Very high resistance to corona discharges for inverter applications
High-temperature class (original Pyre-ML® enamel used) with high- breakdown
Soft wire for easy winding

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

Executive standards: IEC, JIS and NEMA.

FEATURES

  • The insualtion of flat wire could be bondable per the requirement of customers

  • Flat enameled copper wire with larger volume efficient(as the comparion table),will decrease volume of coils

  • The flat enameled copper wire has a low frict coefficient and good winding property

  • The flat enameled copper wire has a wide length/thickness ration from 1 to 25.
