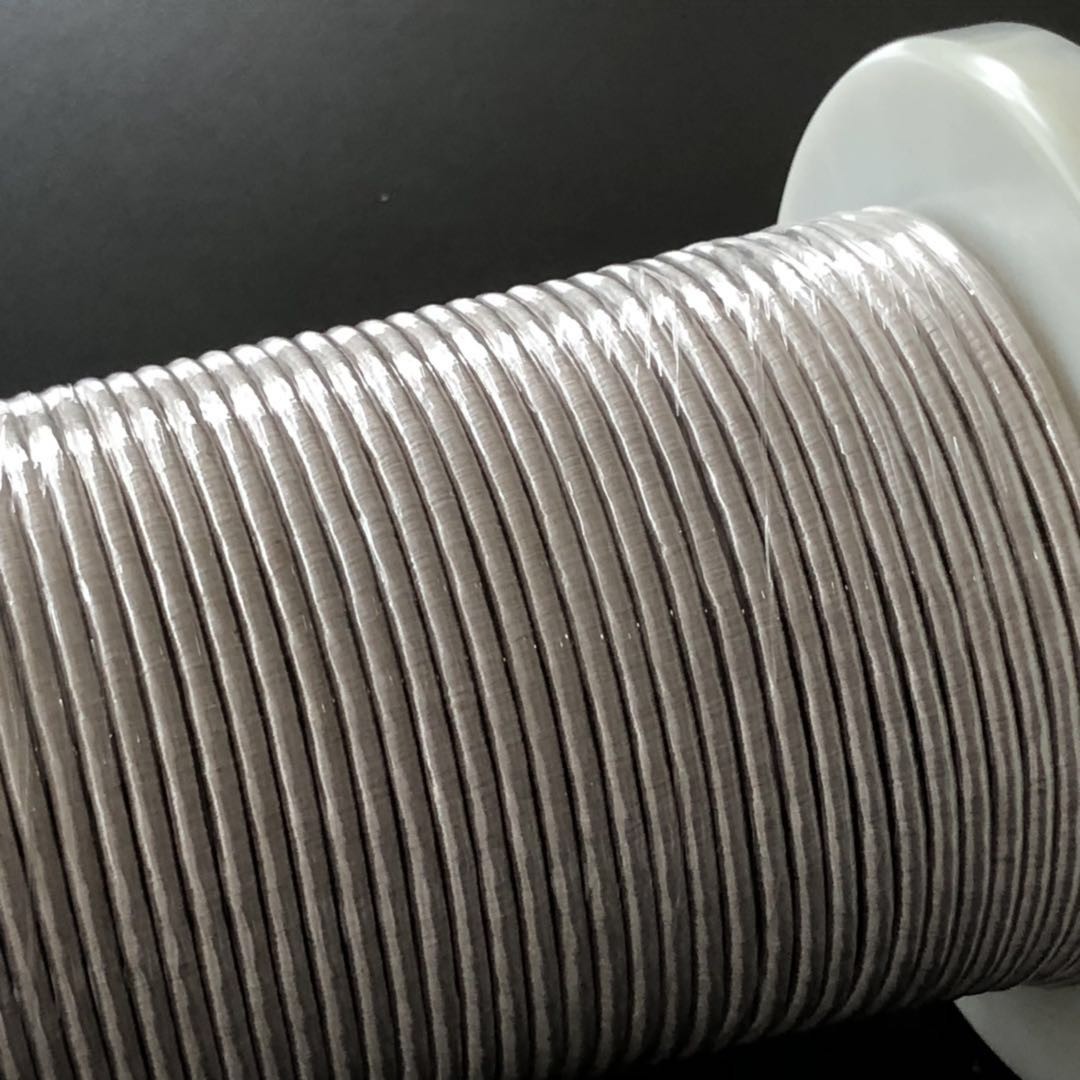

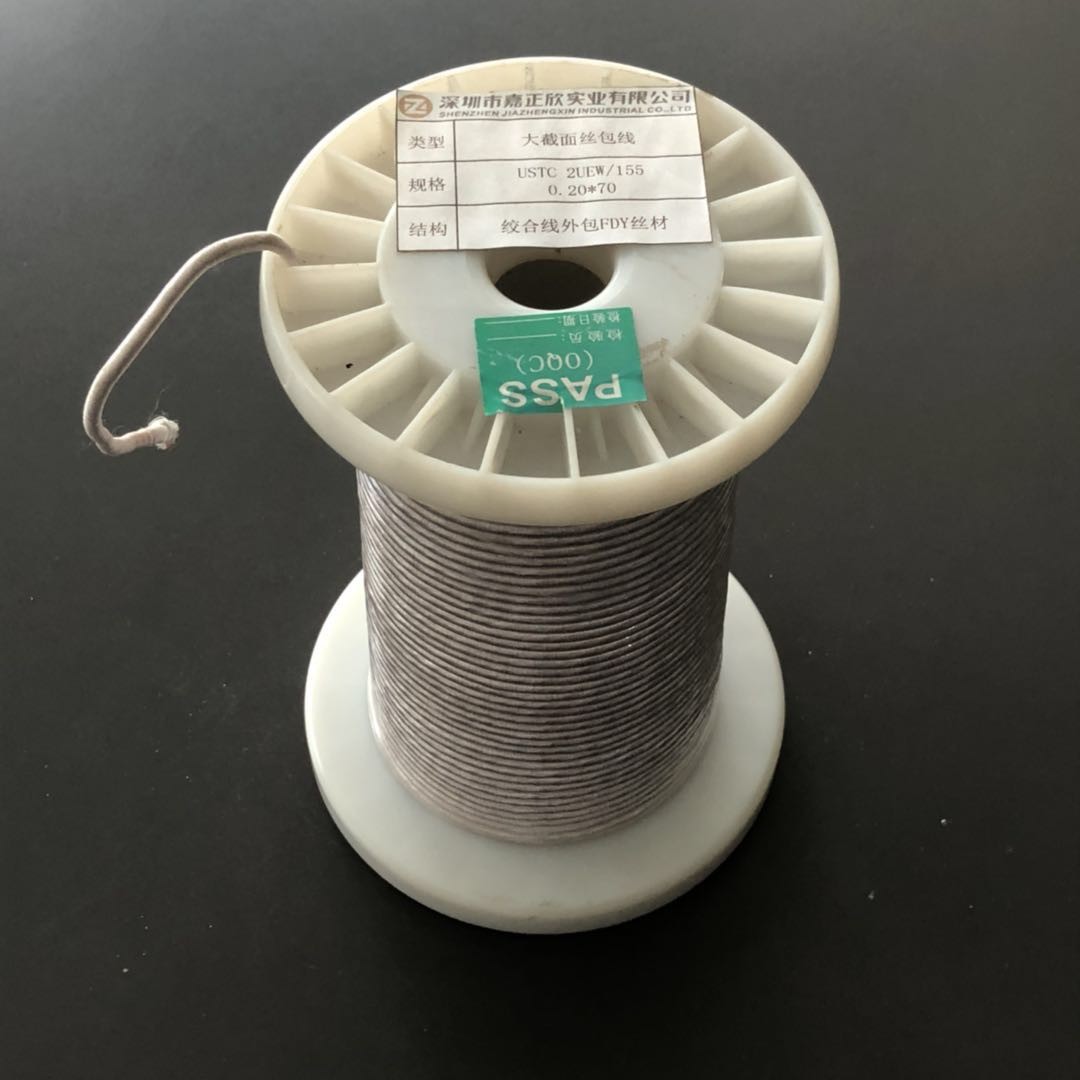

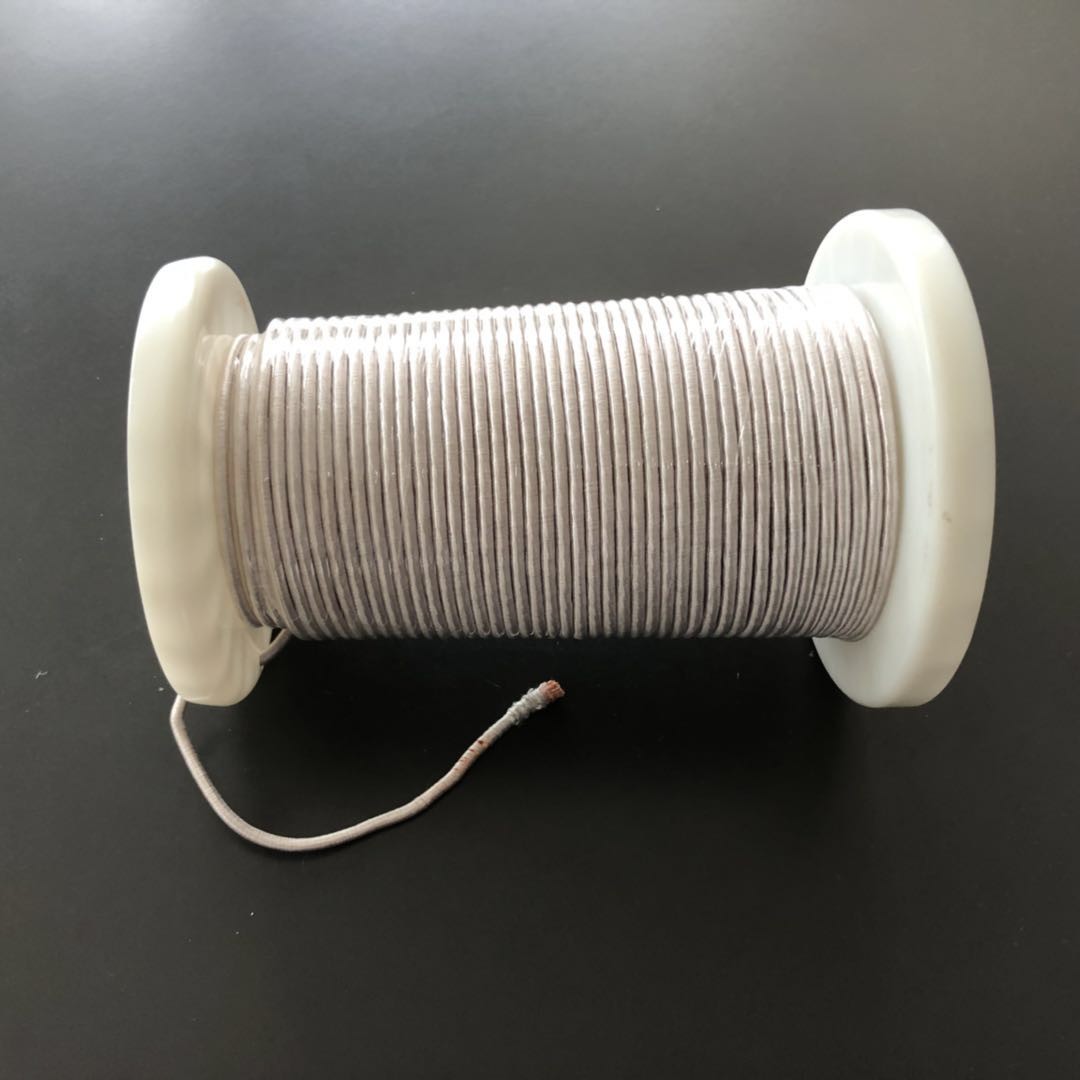

Ustc Silk Covered High Frequency Litz Wire 0.20mm For Current Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: 0.2*70
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: 200 Ton/Tons per Month
Contact Now
Detail Information
Breakdown Voltage: 800V Thermal Class: 155
Certification: UL/SGS Insulation: UEW
Single Wire: 0.20mm Color: Nature/Red/Green/Black/Others
Strands: 70 Conductor Diameter: 0.04
Twist Pictch: 3-70

Product Description

USTC SILK COVERED HIGH FREQUENCY LITZ WIRE 0.02MM FOR CURRENT TRANSFORMER

What is USTC wire? It is insulation wire covered with one layer or multi layer insulating fiber (nylon, polyester fiber, natural silk and adhesive silk) on the surface of single enameled wire or stranded wire.USTC wire is a special type of wire used in electronics. The wire is designed to reduce the skin effect and proximity effect losses in conductors. It consists of many thin wires, individually coated with an insulating film and twisted or woven together, following a carefully prescribed pattern often involving several levels (groups of twisted wires are twisted together, etc.The size range we can make is 0.03-0.8mm, and strands number is 2-4000.
BENEFITS:

  • Increased efficiency

  • Mitigation of skin and proximity effect

  • Minimum eddy current losses

  • Lowered operating temperatures

  • Reduced footprint of final product

  • Substantial weight reduction

  • Avoidance of "hot spots"



APPLICATION:

  • Induction coating hobs

  • RF transformers

  • RF transducers

  • E-Motors





SPECIFICATION



Gauge(mm)

Stranding No.

Twisting Distance(mm)

0.05+250D

14

2.75

0. 06+250D

14-18

2.64

0.06 + 250D

10

3.5

0.07 + 250D

36

5.3

0.08+200D

8

2.64

0.08+250D

8

2.9

0.08+500D

10

3.5

0.10-0.14

10 or below

5.68-9.18

0.10-0.14

10-20

9.18-11.47

0.11-0.14

30-60

15.29-17.00

0.15-0.20

10 or below

9.18-11.47

0.15-0.20

10-20

15.29-17.00

0.21-0.30

10 or below

11.47-15.29

0.21-0.30

10-20

15.29-17.00

0.31-0.40

10 or below

17.00-22.20

0.31-0.40

10-20

22.20-31.57

0.50 or above



5.68-50.00
