| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | 0.15*0.7 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Class 180self Bonding Flat Copper Wire | Width-Thickness Ratio: | 1:5 |
|---|---|---|---|
| Conductor Thickness: | 0.15mm | Conductor Width: | 0.7mm |
| Equivalent Round Wire Diameter: | 0.12~3.2mm | Certification: | IEC/NEMA/JIS/RoHS/ISO/UL |
| Insulation: | UEW | Self Bonding: | Yes |
| Highlight: | rectangular magnet wire,square magnet wire |
||

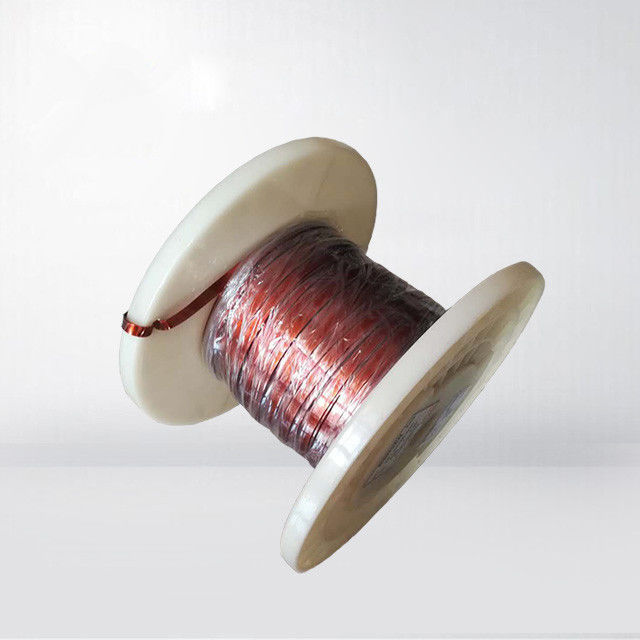

UEW 0.15 X 0.7MM CLASS 180 FLAT RECTANGULAR ENAMELED COPPER WIRE SELF BONDING WIRE FOR TRANSFORMER
Rectuangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Today most popular Notebook computers, wireless charger...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled copper wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Copper Wire" for the market.
APPLICATION
Notebook coil.
Coils of printer.
Motors of CD driver.
Transformer.
wireless charger
| Insulation | Thermal Class | Solder ability | Self-bonding | Size Range | ||
| Width(mm) | Thickness(mm) | Ratio | ||||
| AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 200℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EIWJ | 180℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| SEIWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 155℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 130℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/SBWJ | 180℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| SEI/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 155℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 130℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
