0.025 - 3.0mm Self Bonding Wire Rectangular Enameled Copper Wire Polyamide Imide Covered

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: PEW, PIW, EIW, AIW, EI/AIW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 10-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Self Bonding Polyamideimide Flat Wire Conductor: Copper
Certification: ISO9001/ISO14001 /SGS/UL Standard: IEC,NEMA,JIS
Material: Round Copper Size: 0.025-3.0mm
Temperature: 130-220℃
High Light:

rectangular magnet wire

,

square magnet wire


Product Description

0.025 - 3.0MM SELF BONDING WIRE RECTANGULAR ENAMELED COPPER WIRE POLYAMIDE IMIDE COVERED

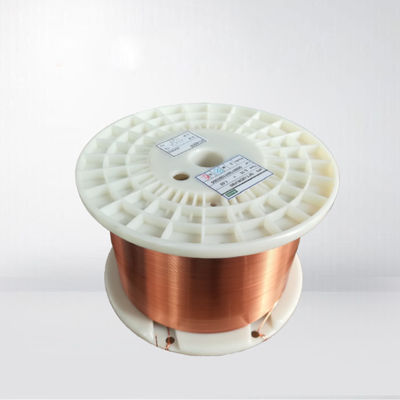

0.025 - 3.0mm Self Bonding Wire Rectangular Enameled Copper Wire Polyamide Imide Covered 0

Polyimide-covered wires are bare wires taped with different grades of polyimide/FEP tapes. Depending on the application conditions, corona discharge-resistant or waterproof types are available. The polyimide yields high-temperature resilience, class 240 complemented by a high breakdown voltage. The corona discharge-resistant version provides a much higher resistance to voltage peaks than the standard polyimide. For applications in high-humidity atmospheres a waterproof polyimide variant can be used. To give a higher mechanical strength to the wire a glass covering will be applied. A nickel plating on the copper conductor results in outstanding behavior for high temperatures and in radiation fields.





FEATURES AND BENEFITS

  • Different types of enamel with very good mechanical strength and bonding properties

  • Very consistent quality and dimension tolerances in line with industry standards

  • Wide range of dimensions, yarns and insulation builds available

  • Very thin grades for wind turbine generators

  • Improved mechanical strength, high-performance yarns and impregnation varnishes

  • Very high resistance to corona discharges for inverter applications

  • High-temperature class (original Pyre-ML® enamel used) with high- breakdown voltage

  • Soft wire for easy winding

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
APPLICATIONS

  • Traction motors

  • Motors for heavy-duty applications (rolling mills, mining machines, oil pumps)

  • Aircraft generators and marine engines

  • Stirring coils

  • Motors for nuclear power plants



Insulation

Thermal Class

Solder ability

Self-bonding

Size Range

Width(mm)

Thickness(mm)

Ratio

AIWJ

220

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

220

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

200

x

x

0.155--7.5

0.02-1.8

1.25

UEWJ

180

0

x

0.155--7.5

0.02-1.8

1.25

EIWJ

180

x

x

0.155--7.5

0.02-1.8

1.25

SEIWJ

180

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

155

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

130

0

x

0.155--7.5

0.02-1.8

1.25

EI/SBWJ

180

x

0

0.155--7.5

0.02-1.8

1.25

SEI/SBWJ

180

0

0

0.155--7.5

0.02-1.8

1.25

EI/AI/SBWJ

220

x

0

0.155--7.5

0.02-1.8

1.25

AI/SBWJ

220

x

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

180

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

155

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

130

0

0

0.155--7.5

0.02-1.8

1.25
