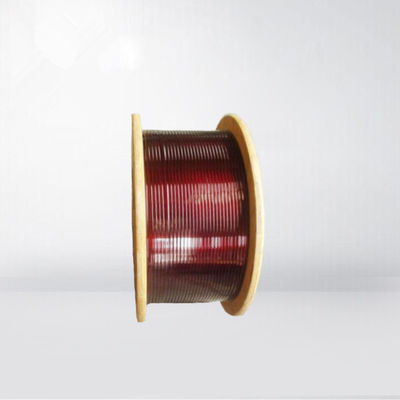

0.02 - 1.8mm Ultra Fine Rectangular Copper Enamelled Winding Wire Flat Self Bonding Wire For Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/RoHS/ISO 9001
Model Number: 0.02-1.8mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Ultra Fine Rectangular Enameled Copper Wire Material: Copper
Thermal Rating: 155-220 Color: Nature
Insulation Material: UEW/EIW/AIW Width Range: 0.155-7.5mm
Thickness Range: 0.02-1.8mm Width To Thickness Ratio: 1:1-1:25
Certificate: IEC/NEMA/JIS/RoHS/ISO
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

0.02 - 1.8MM ULTRA FINE RECTANGULAR COPPER ENAMELED WINDING WIRE FLAT SELF BONDING WIRE FOR WINDING

Enameled Rectangular Wire is coated by the various enamel films on the bare conductor in accordance with customer’s specification. This important wire is used for winding coils for DC motors, transformers, generators, welding machines and other applications.Rvyuan has been supplying the various type of enameled rectangular wires in accordance with customer’s requirements. Rvyuan is also available to manufacture very thin & narrow rectangular copper wire which is used in driving motor and so on of automobiles

 FEATURES AND BENEFITS

1) Excellent bending property
2) High flexibility of the enamel
3) Good resistance to abrasion
4) High mechanical property
5) Higher thermal property
6) Good resistance to refrigerant and freon
7) Suitable for windings that are subjected to constantly high temperature and mechanical stress
8) Good chemical resistance
9) Outstanding mechanical and chemical property

APPLICATION

1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine appication

QQ20170503103542

Parameter

Class 130

Class 155

Class-180

Class-200

Class220

Class-240

Standars

IEC60317-16 GB/T7095.7

60317-16 GB/T7095.3

60317-28 GB/T7095.4

MW 36 60317-29 BS6811 GB/T7095.6

MW 18 60317-18 GB/T7095.2

MW 20 60317-47 GB/T7095.5

Thermal Class

130°C

155°C

180°C

200°C

120°C

240°C

Enamel Base Coat

Polyester

Modified Polyester

Polyester-Imide

Polyester-Imide

Polyester-formal

Polyimide

Enamel Top Coat







Polyester-Imide





Range of insulation thickness

IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm

Performance

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property

1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance

1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation

Application

1.Dry and oil-immersed 2.Electrical equipment

1.Dry and oil-immersed 2.Electrical equipment

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil

1.Dry and oil-immersed transformer 2.Electrical equipment

1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability

Heat shock

155°C

175°C

200°C

220°C

155°C

300°C
