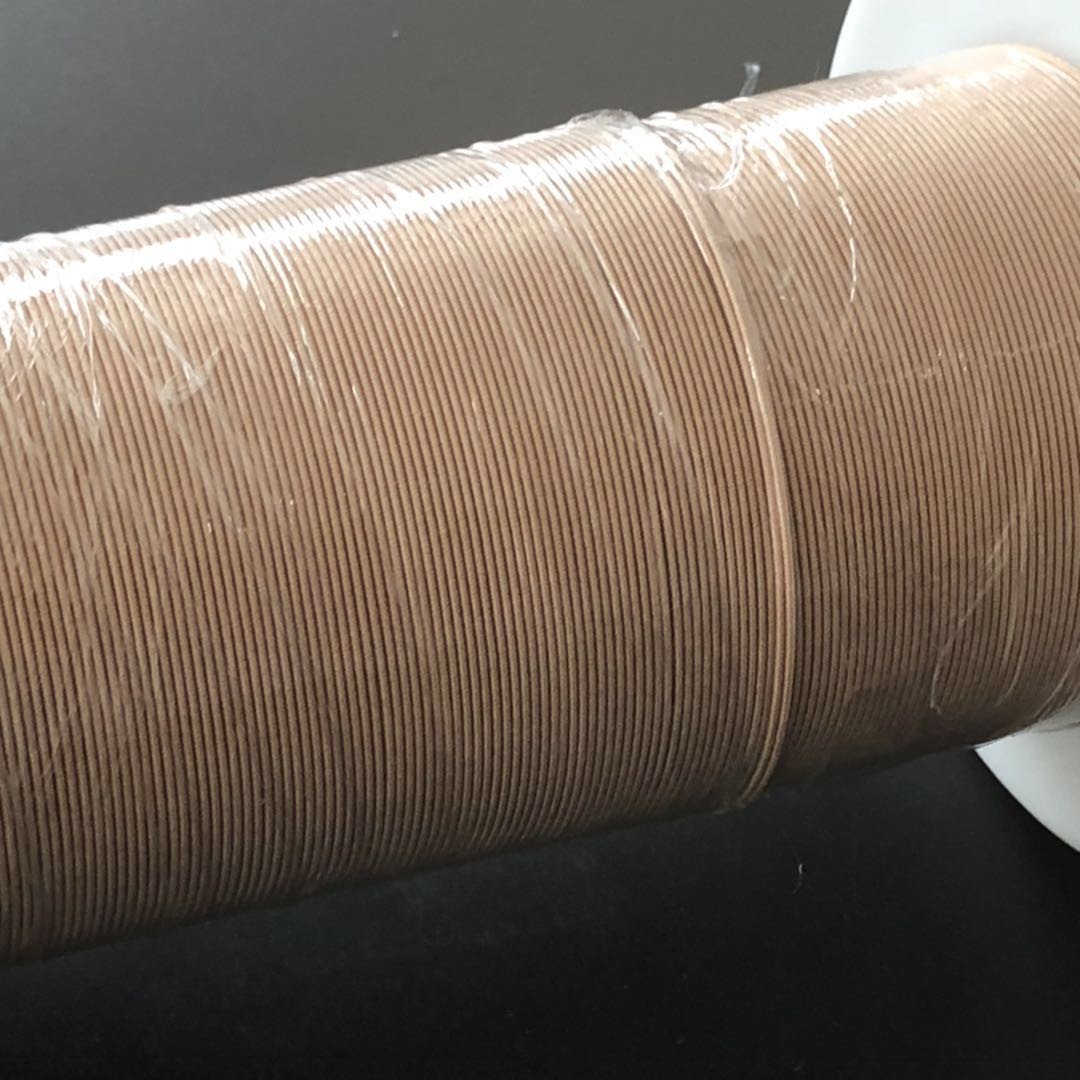

Name: Silk Covered Litz Wire 0.025mm Super Thin Litz Wire For Precious Devices
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

Detail Information

Diameter:	0.025mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	7	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	Silk Covered Litz Wire 0.025mm Super Thin Litz Wire For Precious Devices
Highlight:	silky litz wire for electronics , ultra thin 0.025mm litz wire , premium silk covered litz wire

Product Description

Silk Covered Litz Wire 0.025mm Super Thin Litz Wire For Precious Devices

Silk Covered Litz Wire 0.025mm Super Thin Litz Wire For Precious Devices. The most typical applications of this ultra-fine wire cover are where reliability is paramount, regardless of cost.

Key Applications

Aerospace electrical equipment: Used in generators, motors (such as gyroscope motors and fan motors), transformers, and inductors in aircraft, satellites, and spacecraft. These components need to withstand extreme temperature cycling, severe vibration, and space radiation.
High-precision inertial navigation systems: Micro-motors and sensor coils in gyroscopes and accelerometers require extremely small wire dimensions and extremely stable performance.
Military communication equipment: Used in intermediate frequency transformers, resonant coils, chokes, etc., in high-frequency and ultra-high-frequency radio and radar systems, utilizing their excellent high-frequency characteristics.

Technical Specifications

Item	Technical Requirements	Test Results
Conductor Diameter (mm)	0.0250-0.0270	0.0255 \| 0.0254 \| 0.0262 \| 0.0256 \| 0.0262
Single Wire Diameter (mm)	0.0330-0.0350	0.0348 \| 0.0347 \| 0.0343 \| 0.0335 \| 0.0345
O.D. (mm)	0.107-0.141	0.113 \| 0.115 \| 0.114 \| 0.116 \| 0.116
Resistance of Single Wire Ω/m (20℃)	29.81-34.77	31.99 \| 31.76 \| 31.69 \| 32.03 \| 31.60
Resistance of Litz Wire Ω/m (20℃)	4.25-5.87	4.747 \| 4.703 \| 4.699 \| 4.726 \| 4.712
Breakdown Voltage V	Min. 500	1100 \| 1045 \| 1056 \| 1184 \| 1032
Pitch mm	3 ± 1	3 \| 3 \| 3.1 \| 3 \| 3
No. of Strands	7	7 \| 7 \| 7 \| 7 \| 7

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand
