0.05 X 140 Mylar High Frequency Copper Litz Wire Insulated Copper Wire With 5500v Breakdown Voltage

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: 0.05x140mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C, Negotiation
Supply Ability: Satisfy your demand
Detail Information
Breakdown Voltage: 5500V Thermal Class: 155
Certificate: UL/SGS Insulation: PET
Outer Diameter: 0.059mm Color: Transparent
Strands: 140 Conductor Diameter: 0.05mm
Overlap Rate: 50%
High Light:

0.05 mylar wire

,

insulated mylar wire

,

Insulation mylar wire


Product Description

0.05 X 140 MYLAR HIGH FREQUENCY COPPER LITZ WIRE INSULATED COPPER WIRE WITH 5500V BREAKDOWN VOLTAGE

Self bonding taped mylar litz wire constructions with self adhesive tapes allow very high break down voltages as well as high flexibility. Compliance with application specific demands for air and creepage distances is covered in perfect manner.Litz wire is a type of specialized multistrand wire or cable used in electronics to carry alternating current (AC) at radio frequencies. The wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz.[1] It consists of many thin wire strands, individually insulated and twisted or woven together, following one of several carefully prescribed patterns[2] often involving several levels (groups of twisted wires are twisted together, etc.). The result of these winding patterns is to equalize the proportion of the overall length over which each strand is at the outside of the conductor. This has the effect of distributing the current equally among the wire strands, reducing the resistance. Litz wire is used in high Q inductors for radio transmitters and receivers operating at low frequencies, induction heating equipment and switching power supplies.

DESIGN

New design or recommmendation according to customer requirements for size,turns,current,power and environmental parameters.

TIPS

Customers to use auotmatic line machine, semi-automatic machine, cutting coiling, please inform us, so that we can provide the best solution. component methods are divided into two kinds: with glue, without glue

APPLICATION

  • Induction coating hobs

  • RF transformers

  • RF transducers

  • E-Motors

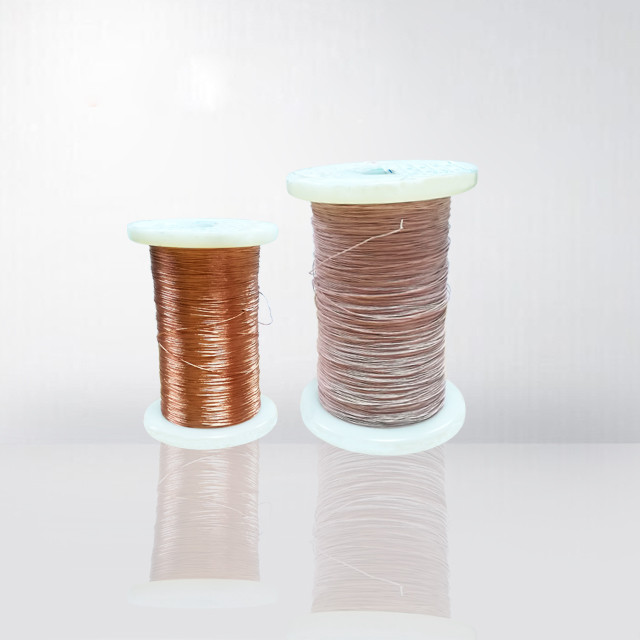

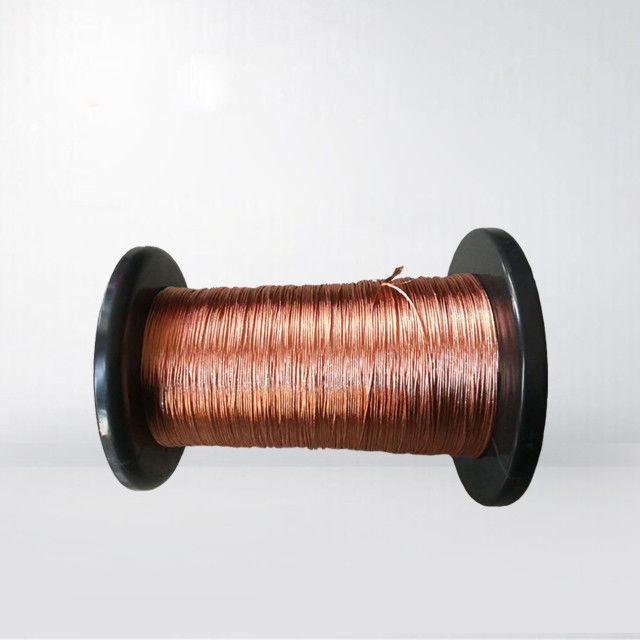

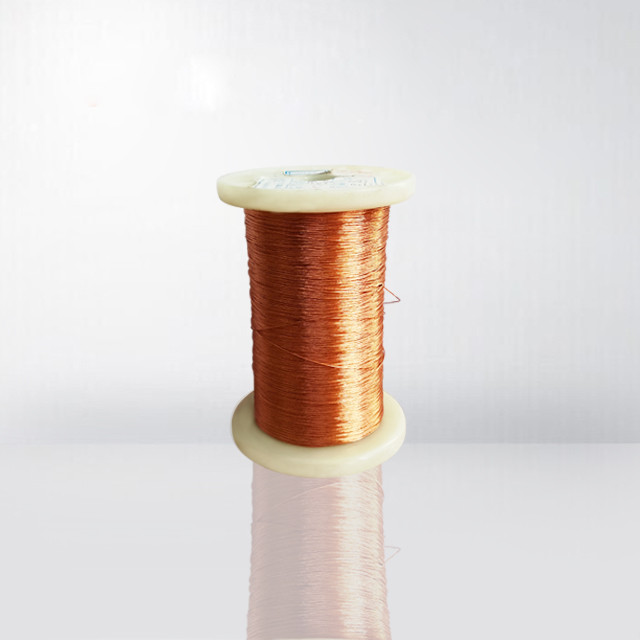

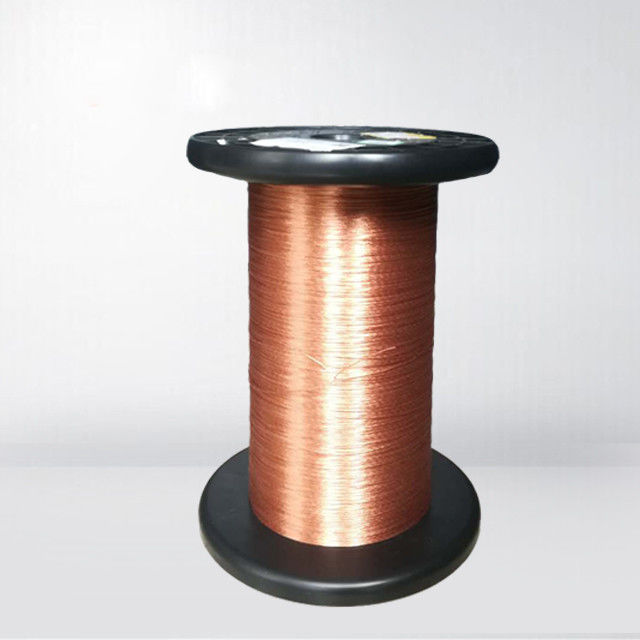

0.05 X 140 Mylar High Frequency Copper Litz Wire Insulated Copper Wire With 5500v Breakdown Voltage 0
