Class 155 UEW 0.01mm Solderable Generator Enamelled Copper Wire Copper Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Class 155
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C, Negotiation,
Supply Ability: Satisfy your demand
Detail Information
Thermal Rating: 150-220 Size Range: 0.012-2.0mm
Delivery: Timely Delivery Guaranted Color: Natural Or As Your Requirements
High Light:

soft copper wire

,

self solderable copper wire


Product Description

Class 155 UEW 0.01MM SOLDERABLE GENERATOR ENAMELED COPPER WIRE COPPER MAGNET WIRE

Dual Coated Copper Wires are suitable for all "H + " (220°C and 200°C) Class and above applications such as dry type transformers, stator winding fractional and integral H.P motors, D.C Field and Armature windings, Motors for Hermetic grade, Hand tools, Chemicals Industries, Furnaces and high Torque, continuous rated, all Home appliances machine motors, Auto electrical, coil application-varnished or unvarnished. Enameled Aluminum Wire or Enameled Copper Wire of Hermetic Grade hasExcellent suitability for refrigeration and air conditioning systems.Single Coated Wires are suitable for all "H","F" and "B" Class application such as dry type transformers, stator winding fractional H.P. motors, D.C field and Armature windings. Polyester coated wires have very good chemical resistance and compatible with all general purpose impregnating varnishes including high temperature modified phenolic polyester and others which do not contain the reactive solvent.

FEATURES

  • Good resistance to high temperature

  • Excellent resistance to abrasion and solvent

  • Excellent heat shock, adherence and flexibility

APPLICATION

  • Auto Electricals

  • Electric hand Tools

  • House hold appliances

  • Fans Switchgear, relay and magnet coils

  • Instruments and audio coils and many others

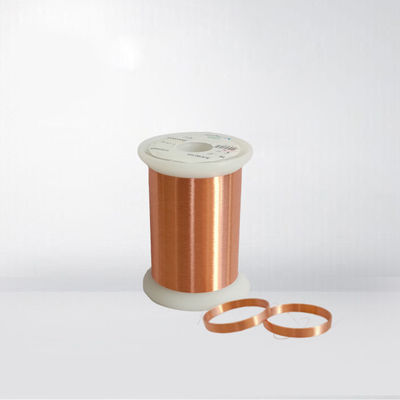

Class 155 UEW 0.01mm Solderable Generator Enamelled Copper Wire Copper Magnet Wire 0

SPECIFICATION

Category Enamel type Code Thermal classification
single coat polyurethane UEW 130
UEWF 155
polyester PEW 155
polyester-imide EIW 180
polyamide-imide AIW 220
Dual coat self-bonding polyurethane SB UEW 130
self-bonding polyester-imide SB EIW 180
polyurethane over coated with polyamide UEW-NY 130
UEWF-NY 155
polyester over coated with polyamide PEW-NY 155
PEWH-NY 180
polyester-imide over coated with polyamide-imide EIW-AL 200
