0.012 - 4.5mm Round Voice Coil Wire Round For Choke Coils

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012 - 4.5mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Thermal Rating: 155/180/220 AWG: 6-56
Insulation: Polyurethane/Polister Size: 0.012-4.5mm
High Light:

submersible motor winding wire

,

electric motor winding wire


Product Description

0.012 - 4.5MM ROUND VOICE COIL WIRE ROUND FOR CHOKE COILS
Winding wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.
FEATURES

  • 99.7% copper wire

  • Electric conductivity: 100%

  • 0.012-4.5mm wires

  • High conductivity >102%IACS

  • Thermal Class: 130-220C

APPLICATION

rewinding or manufacturing of but not limited to. Electric Motor windings, Transformer Windings, Solonoid Coils, Armature & Rotor Windings, Tesla Coils, Choke Coils, Guitar Pick Up Coils, Aerial & Antenna Coils, Contactor Coils, Metal Detector Coils.

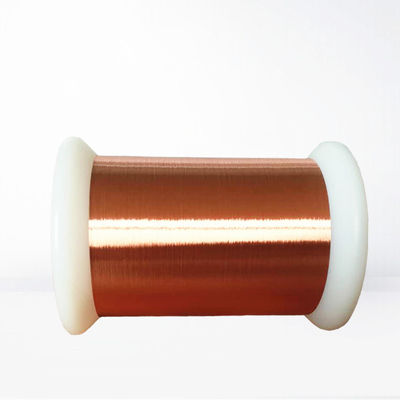

0.012 - 4.5mm Round Voice Coil Wire Round For Choke Coils 0

SPECIFICATION



Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage

Elongation

Pin Hole

Electrical Resistance

mm

≥ V

≥%

≤Default/5m

Ω/km (20℃)









Mandrel Method

Twisted Method





Min.

Max.

0.05

±0.002

0.011

0.067

800

----

12

3

7981

9528

0.055

±0.002

0.011

0.073

800

----

12

3

6642

7815

0.06

±0.002

0.013

0.08

1000

----

14

3

5614

6526

0.065

±0.002

0.014

0.086

1000

----

14

3

4807

5531

0.07

±0.002

0.015

0.091

1000

----

15

3

4163

4747

0.075

±0.002

0.015

0.096

1100

----

15

3

3640

4119

0.08

±0.002

0.015

0.103

1100

----

16

3

3209

3608

0.085

±0.002

0.017

0.11

1200

----

16

3

2851

3187

0.09

±0.002

0.017

0.114

1200

----

16

3

2550

2835

0.095

±0.002

0.017

0.12

1200

----

17

3

2294

2538

0.1

±0.002

0.017

0.127

1200

----

17

3

2074

2286

0.11

±0.002

0.017

0.139

----

2800

17

3

1720

1882

0.12

±0.002

0.017

0.149

----

2800

17

3

1450

1577

0.13

±0.002

0.019

0.159

----

2800

18

3

1239

1340

0.14

±0.002

0.019

0.171

----

3000

19

3

1070

1153

0.15

±0.002

0.019

0.181

----

3000

20

3

934.1

1002

0.16

±0.002

0.021

0.191

----

3000

21

3

822.3

879.4
