Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | IEC/NEMA/JIS/RoHS/ISO |
Model Number: | CLASS 155 / 180 / 220 |
Minimum Order Quantity: | Different types with differet MOQ |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation, T/T, L/C |
Supply Ability: | Satisfy your demand |
Thermal Rating: | 155-220℃ | Stock: | Available |
---|---|---|---|
Size Range: | 0.012-1.0mm | Insulation: | UEW/PEW/EIW |
Material: | Copper | Conductor Type: | Solid |
Solderability: | Yes | ||
Highlight: | covered copper wire,flat copper wire |

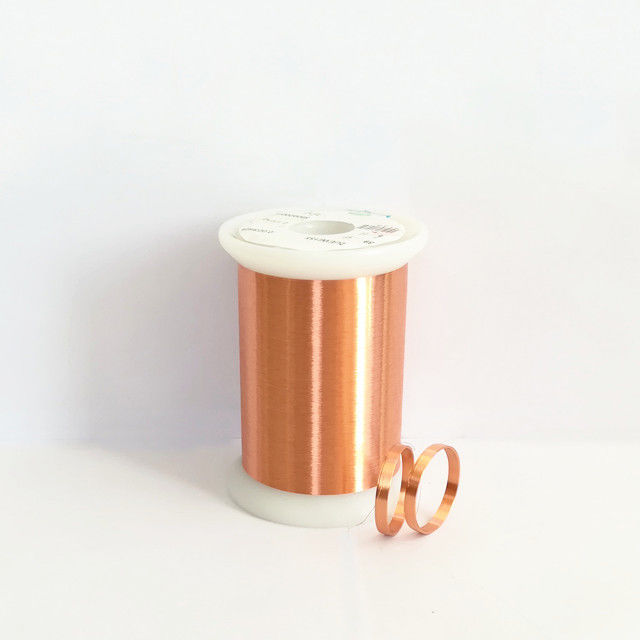

CLASS 155 / 180 / 220 SELF BONDING WIRE ENAMELED COPPER WINDING WIRE FOR VOICE COIL
We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines.Because of our strong R & D strength, our products have a wide range of applicationsWe have a full range of self-adhesive lines and a wide range of applicationsThermal class is155C, 180 C, 200 C, 220 C.Conductor material includes enameled round wire, enameled copper-clad aluminum wire
APPLICATION
Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.
FEATURES
Very good solderability that can be soldered without removal of coating.
Small tg δ value under high frequency electronic apparatus.
Easy to be dyed to different colors for identifying purpose when soldered.
High breakdown voltage, small dielectric loss angle
Size | Conductor | Insulation Thickness | Bonding Layer thickness | Overall Dia | DCR(at 20℃) | Breakdown voltage (V) | Elongation % | Bonding Strength(g) |
Dia mm | Tolerance (mm) |
(mm) | (mm) | (mm) | [Ω/m] | |||
0.070 | ±0.002 | Min0.003 | Min0.003 | Max0.086 | 4.30~4.50 | Min700 | Min12.0 | Min 5 |
0.068 | ±0.002 | Min0.003 | Min0.003 | Max0.083 | 4.60~4.80 | Min700 | Min12.0 | Min 5 |
0.065 | ±0.002 | Min0.003 | Min0.003 | Max0.078 | 4.85~5.20 | Min700 | Min12.0 | Min 5 |
0.060 | ±0.002 | Min0.002 | Min0.003 | Max0.071 | 5.71~6.53 | Min700 | Min12.0 | Min 5 |
0.058 | ±0.002 | Min0.002 | Min0.002 | Max0.071 | 6.50~6.70 | Min700 | Min12.0 | Min 5 |
0.057 | ±0.002 | Min0.002 | Min0.002 | Max0.070 | 6.40~7.00 | Min700 | Min12.0 | Min 5 |
0.055 | ±0.002 | Min0.002 | Min0.003 | Max0.066 | 6.75~7.83 | Min700 | Min10.0 | Min 5 |
0.053 | ±0.002 | Min0.002 | Min0.003 | Max0.064 | 8.25~8.44 | Min700 | Min10.0 | Min 5 |
0.052 | ±0.002 | Min0.003 | Min0.003 | Max0.064 | 8.00~8.50 | Min700 | Min10.0 | Min 5 |
0.050 | ±0.002 | Min0.002 | Min0.003 | Max0.061 | 8.11~9.53 | Min700 | Min10.0 | Min 5 |
0.049 | ±0.001 | Min0.002 | Min0.003 | Max0.0580 | 8.90~9.40 | Min700 | Min10.0 | Min 5 |
0.048 | ±0.001 | Min0.002 | Min0.003 | Max0.059 | 9.14~9.94 | Min700 | Min10.0 | Min 5 |
0.047 | ±0.001 | Min0.001 | Min0.002 | Max0.057 | 9.52~10.4 | Min700 | Min10.0 | Min 3 |
0.046 | ±0.001 | Min0.003 | Min0.003 | Max0.0550 | 9.90~10.3 | Min360 | Min10.0 | Min 3 |
0.045 | ±0.001 | Min0.001 | Min0.002 | Max0.055 | 10.3~11.4 | Min700 | Min10.0 | Min 3 |
0.044 | ±0.001 | Min0.003 | Min0.003 | Max0.0540 | 11.4~12.5 | Min275 | Min7.0 | Min 3 |
0.043 | ±0.001 | Min0.003 | Min0.003 | Max0.0520 | 11.4~12.5 | Min275 | Min7.0 | Min 3 |
0.042 | ±0.001 | Min0.003 | Min0.003 | Max0.0530 | 12.2~13.0 | Min275 | Min7.0 | Min 3 |
0.041 | ±0.001 | Min0.003 | Min0.003 | Max0.0500 | 12.9~13.6 | Min275 | Min7.0 | Min 3 |
0.040 | ±0.001 | Min0.002 | Min0.002 | Max0.050 | 13.0~14.5 | Min100 | Min7.0 | Min 3 |
0.039 | ±0.001 | Min0.002 | Min0.002 | Max0.049 | 14.6~15.2 | Min100 | Min7.0 | Min 3 |
0.038 | ±0.001 | Min0.002 | Min0.002 | Max0.0490 | 15.5~16.0 | Min275 | Min7.0 | Min 3 |
0.037 | ±0.001 | Min0.002 | Min0.002 | Max0.0480 | 16.2~16.8 | Min275 | Min6.0 | Min 3 |
0.035 | ±0.001 | Min0.002 | Min0.002 | Max0.0460 | 17.5~18.6 | Min250 | Min6.0 | Min 3 |
0.034 | ±0.001 | Min0.002 | Min0.002 | Max0.0430 | 18.1~18.9 | Min250 | Min6.0 | Min 3 |
0.032 | ±0.001 | Min0.002 | Min0.002 | Max0.0400 | 21.5~22.5 | Min210 | Min6.0 | Min 2 |
0.030 | ±0.001 | Min0.002 | Min0.002 | Max0.0390 | 23.7~24.9 | Min210 | Min6.0 | Min 2 |
0.028 | ±0.001 | Min0.002 | Min0.002 | Max0.0360 | 26.9~28.4 | Min190 | Min6.0 | Min 2 |
0.025 | ±0.001 | Min0.002 | Min0.002 | Max0.0320 | 34.0~37.0 | Min165 | Min6.0 | Min 2 |
0.020 | ±0.001 | Min0.001 | Min0.002 | Max0.0260 | 54.0~57.0 | Min135 | Min6.0 | Min 1 |
